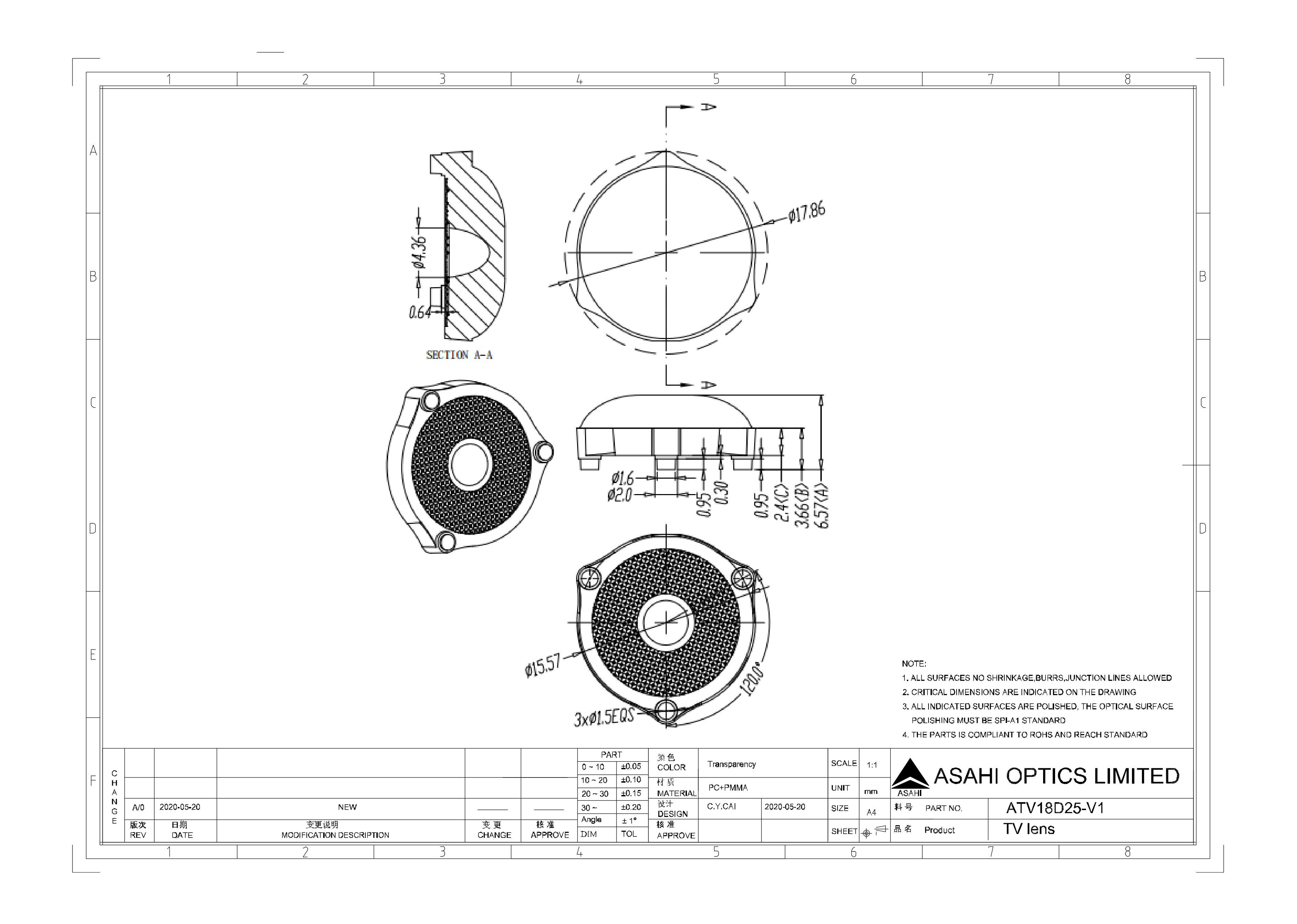

Model: ATV18D25-V1
Size: Ø17.86mm
Height: 5.51mm
Angle: 160°
Material: PMMA
Transmittance: >93%
LED Type: 2835/ 3030/ 3535LED
Lighting Applications: TV backlighting, panel light, ceiling light, advertising light box
1. This lens has a diameter of 17.86mm and a height of only 5.51mm, with an ultra-thin structure that facilitates easy integration.
2. 160° wide-angle light distribution effectively eliminates dark areas and improvesluminance uniformity for panel lights and advertising light boxes.
3. Transmittance >93% with minimal light loss; aspherical surfaces precisely control light,and it is compatible with mainstream 2835/3030/3535 LED chips.
Distribution
Specifications
| Model: | ATV18D25-V1 |
| Size: | Ø17.86mm |
| Height: | 5.51mm |
| Angle: | 160° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 2835/ 3030/ 3535LED |
| Lighting applications | TV backlighting, panel light, ceiling light, advertising light box |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%

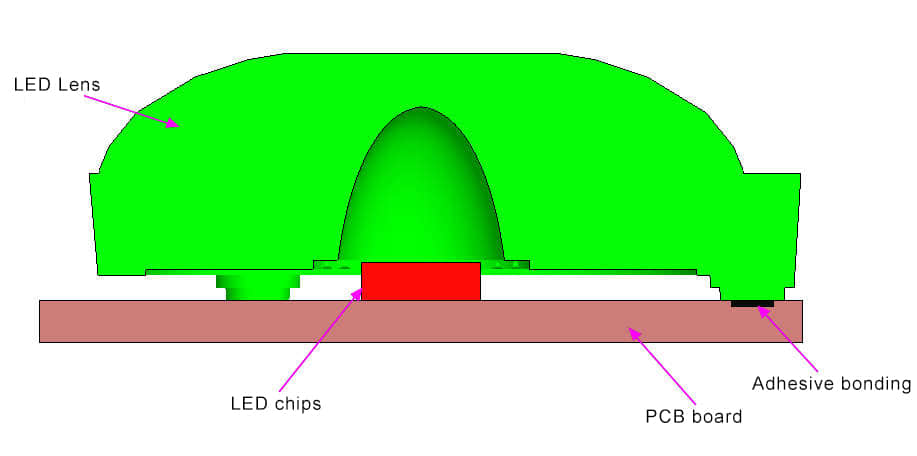

If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
