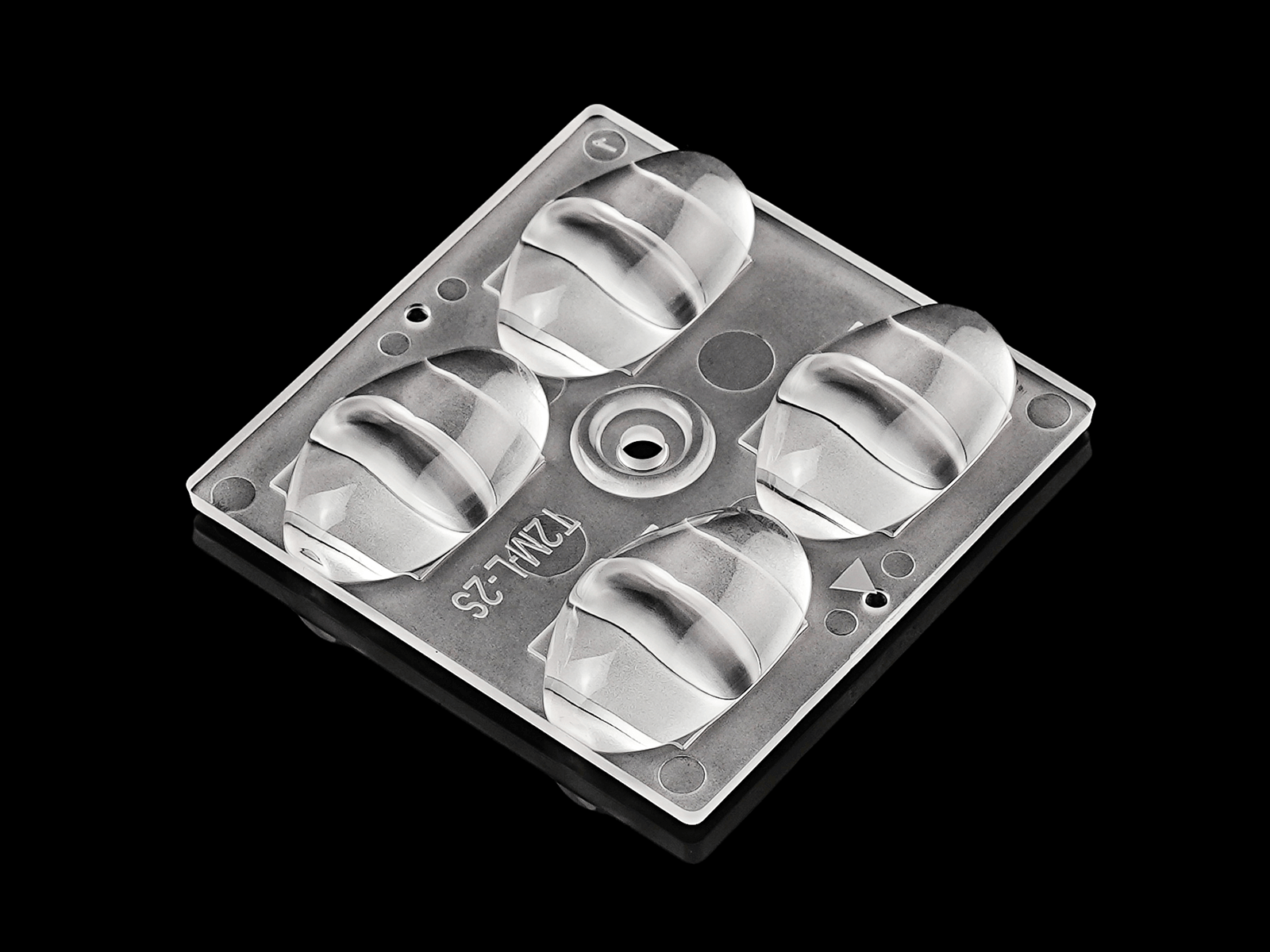

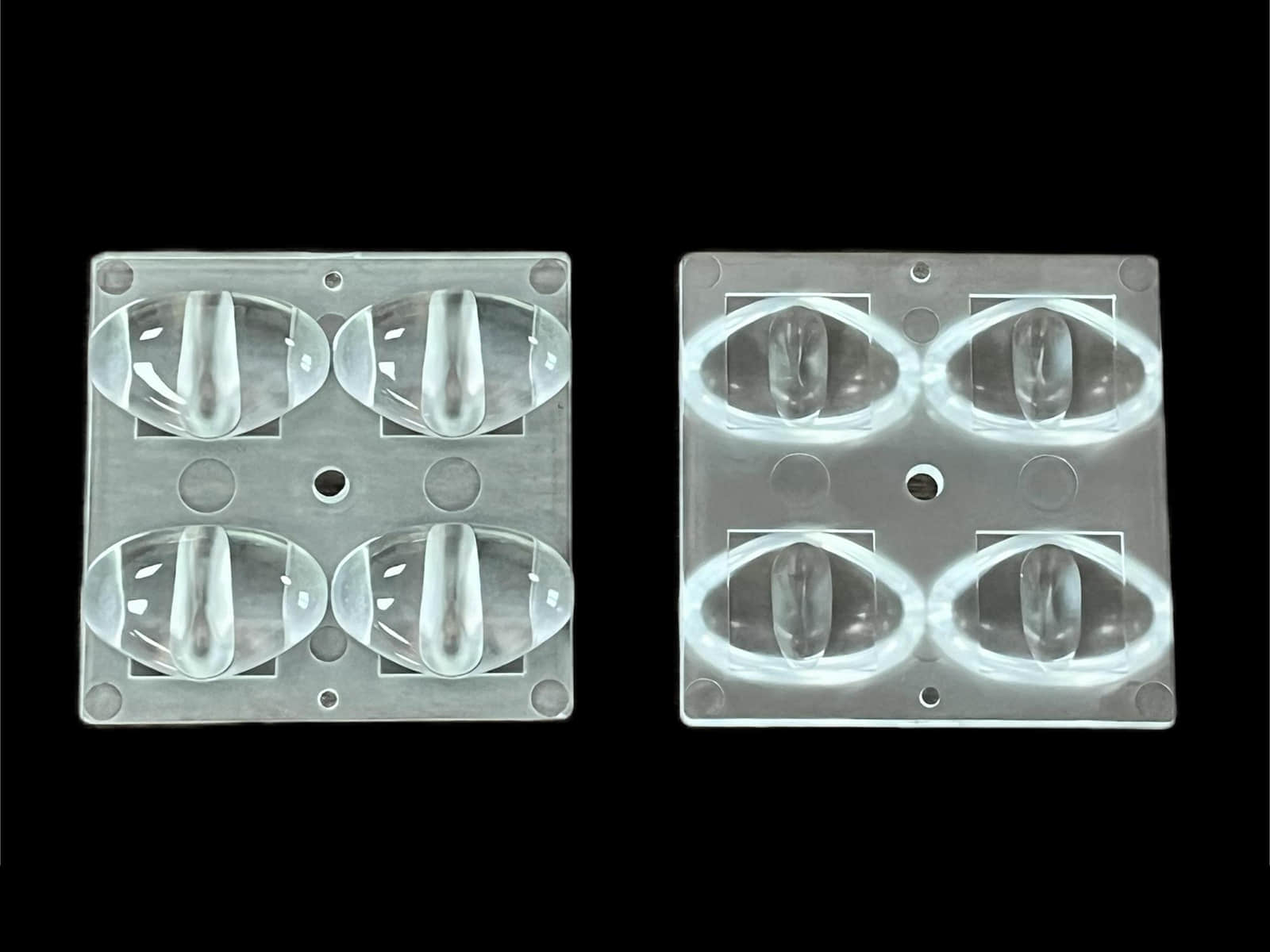

Model: ALST50D4LED5050T2M-L-2S

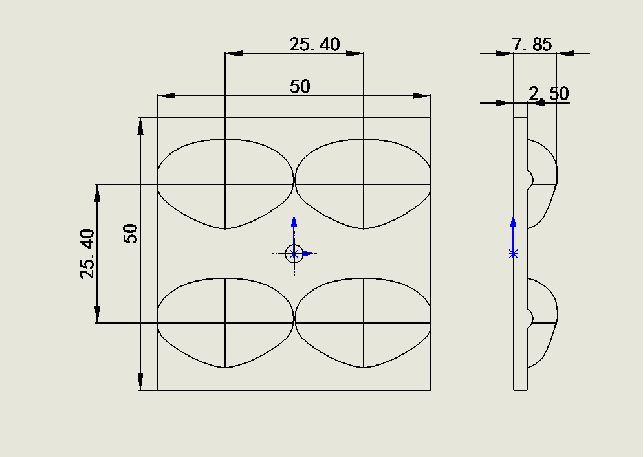

Diameter: 50x50mm
Height: 7.85mm
Angle: T2M-L-2S
Material: TEIJIN PC-1250Z
Transmittance: 90%
LED Type: 5050LED
Lighting Applications: Street Lighting
1. Extended light coverage for long pole spacing.
2. This 2x2 lens is specifically designed for lighting systems with long pole-pole distances, ensuring consistent and wide light distribution over expansive areas.
3. Its advanced optical design minimizes dark spots and provides uniform illumination, making it ideal for highways, large parking lots, and open public spaces.
1. Extended light coverage for long pole spacing.
2. This 2x2 lens is specifically designed for lighting systems with long pole-pole distances, ensuring consistent and wide light distribution over expansive areas.
3. Its advanced optical design minimizes dark spots and provides uniform illumination, making it ideal for highways, large parking lots, and open public spaces.
Specifications
| Model: | ALST50D4LED5050T2M-L-2S |
| Diameter: | 50x50mm |
| Height: | 7.85mm |
| Angle: | T2M-L-2S |
| Material： | TEIJIN PC-1250Z |
| Transmittance： | ＞90% |
| LED Type | 5050LED |
| Lighting applications | Street Lighting |

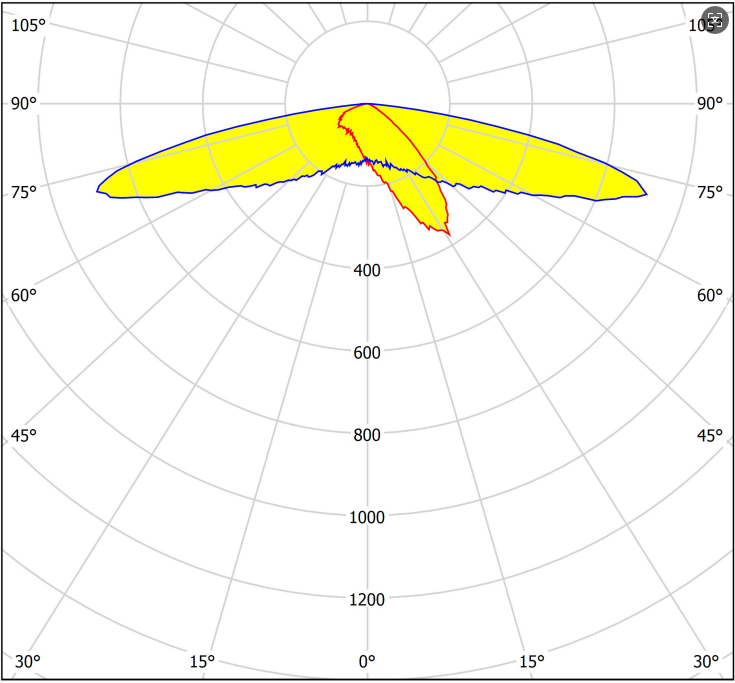

Light Distribution Curve
