Model: AHCOB4720D35G
Diameter: 47.5mm
Height: 20mm
Angle: 35°
Material: PMMA
Transmittance: 90%
LED Type: COB LED

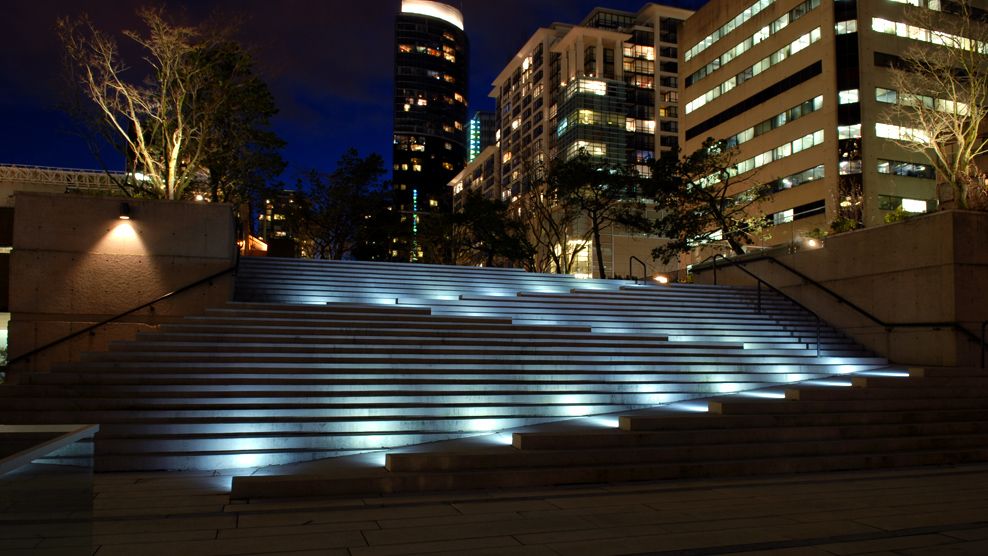

Lighting Applications: PAR lighting,Spot Light,Down Light
1, 47mm Cob Led Lenses For PAR Lighting Applications
2, COB lenses can incorporate anti-glare coatings or diffusion properties to reduce unwanted glare and harsh shadows. This improves visual comfort for users and creates a more pleasing lighting environment.
3, COB lenses are designed specifically for compact Chip-on-Board LED packages. Their compact size allows for efficient integration with COB LEDs, making them suitable for applications where space is limited.

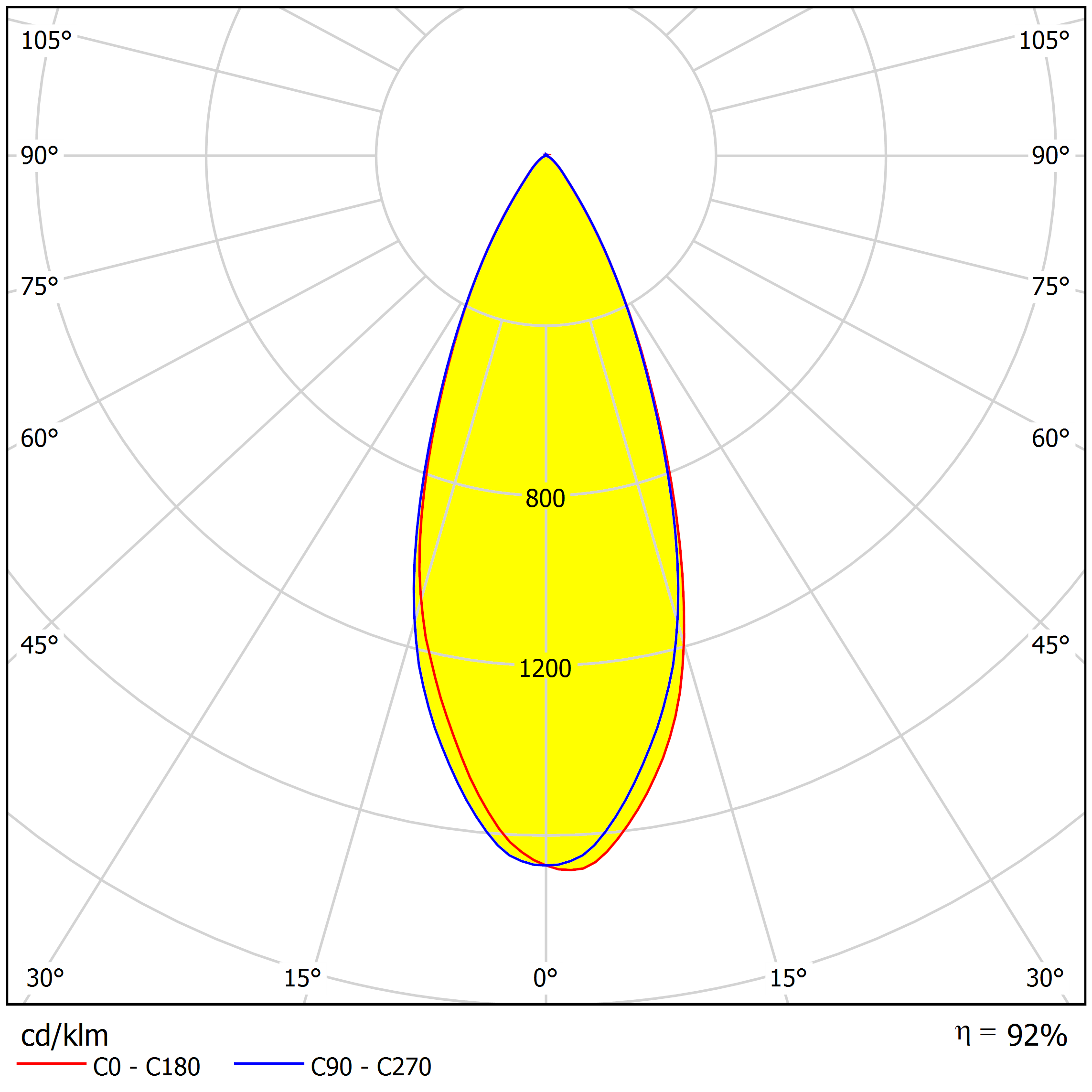

Distribution
Specifications
| Model: | AHCOB4720D35G |
| Diameter: | 47.5mm |
| Height: | 20mm |
| Angle: | 35° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting,Spot Light,Down Light |

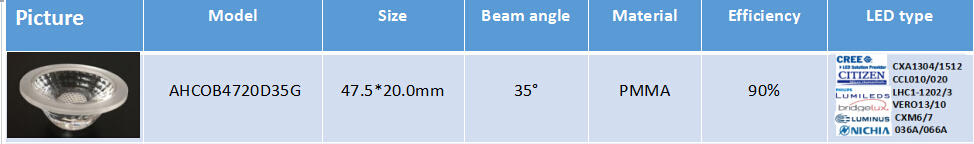

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
