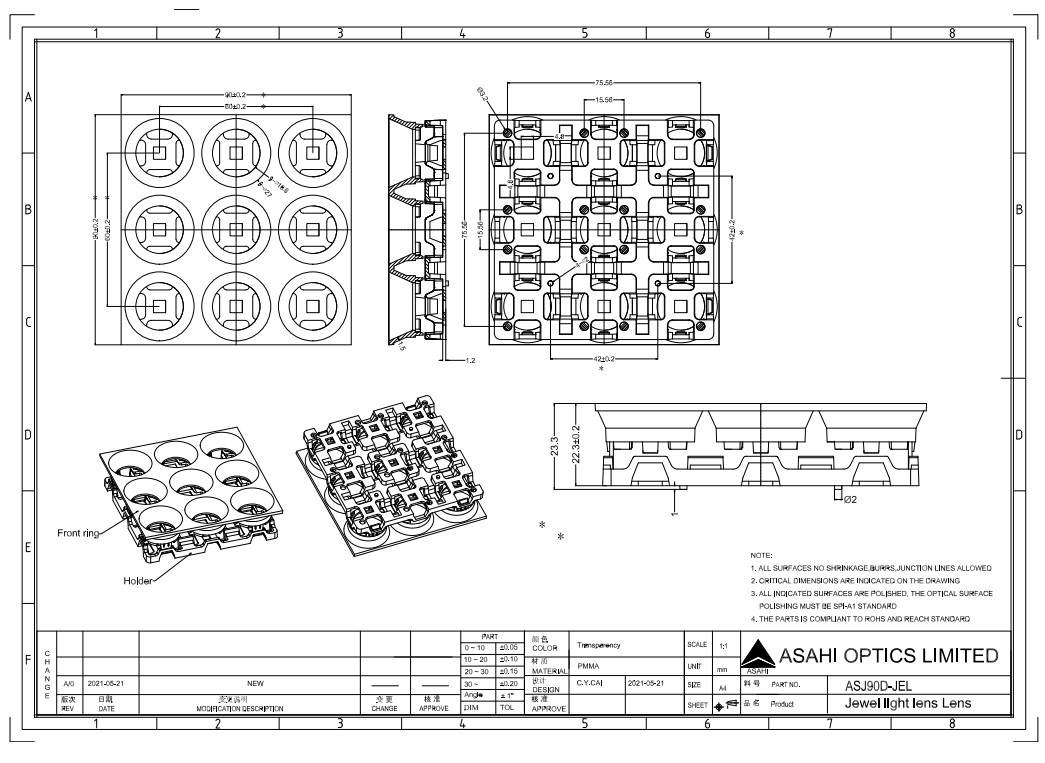

Model: ASJ90D-JEL
Diameter: 90mm
Height: 90mm
Angle: -
Material: PMMA+PC
Transmittance: 93%
LED Type: 3030/ 3535LED

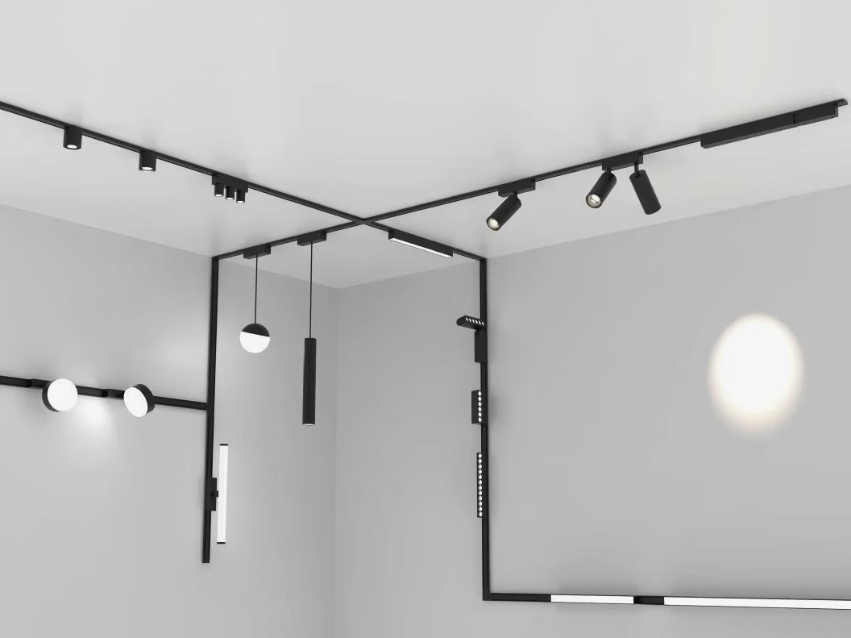

Lighting Applications: Magnetic Track Lighting
1.Suitable for a variety of commercial and home scenarios. Not only can it provide even light and reduce glare, but the magnetic design makes installation and replacement more flexible and easy.
2. 90X90mm square design , Matches 3030/3535 LEDs.Compatible with most track spotlight systems
Distribution
Specifications
| Model: | ASJ90D-JEL |
| Diameter: | 90mm |
| Height: | 90mm |
| Angle: | - |
| Material： | PMMA+PC |
| Transmittance： | >93% |
| LED Applications | 3030/ 3535LED |
| Lighting applications | Magnetic Track Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
