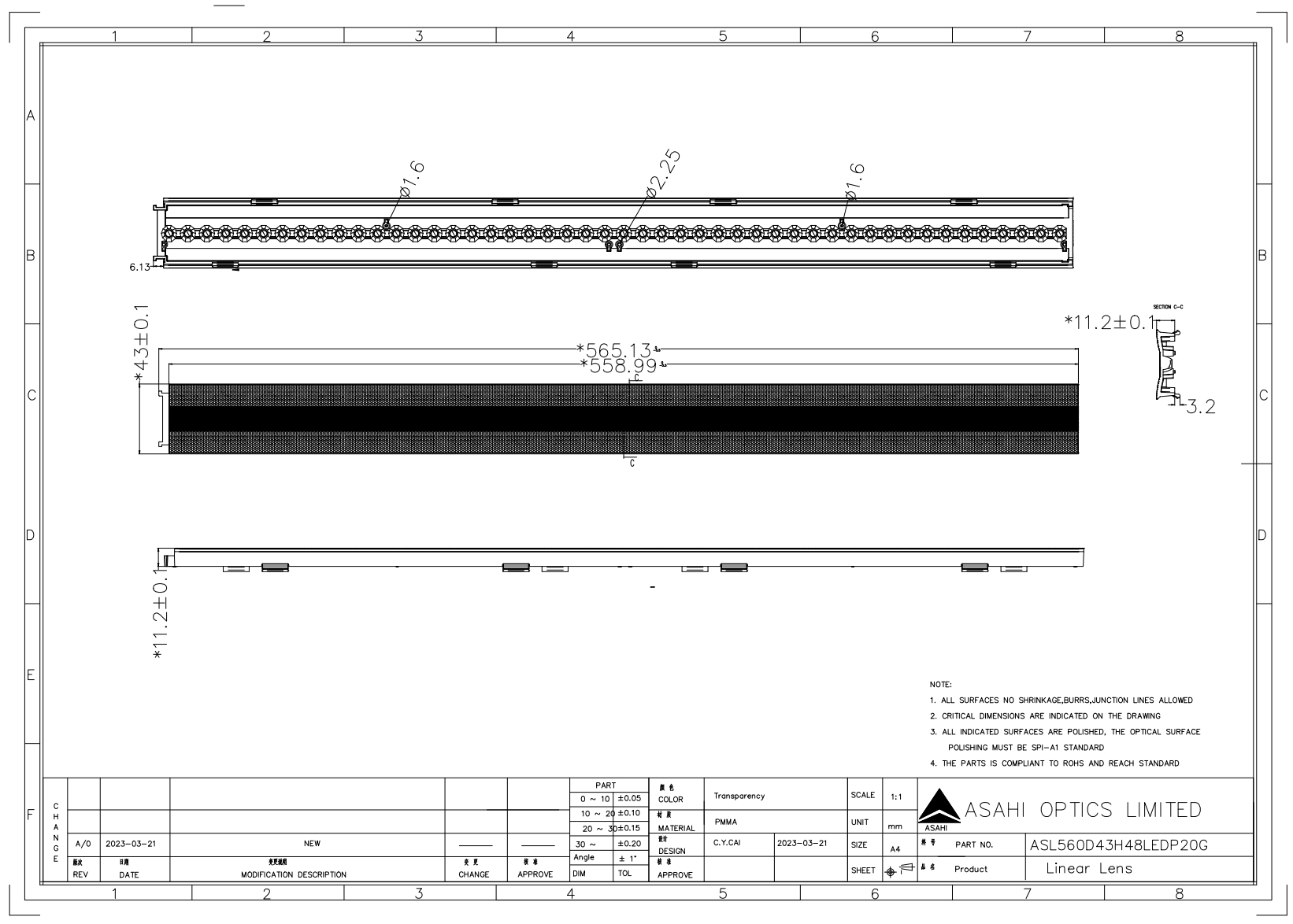

Model: ASL560D43H48LEDP20G
Diameter: 560mm
Height: 43mm
Angle: asymmetric 20°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting, Office Lighting
1. The lens is specifically designed to be compatible with a linear lighting fixture that accommodates 48 LEDs. It is engineered to match the spacing and arrangement of the LEDs for optimal light distribution and performance.

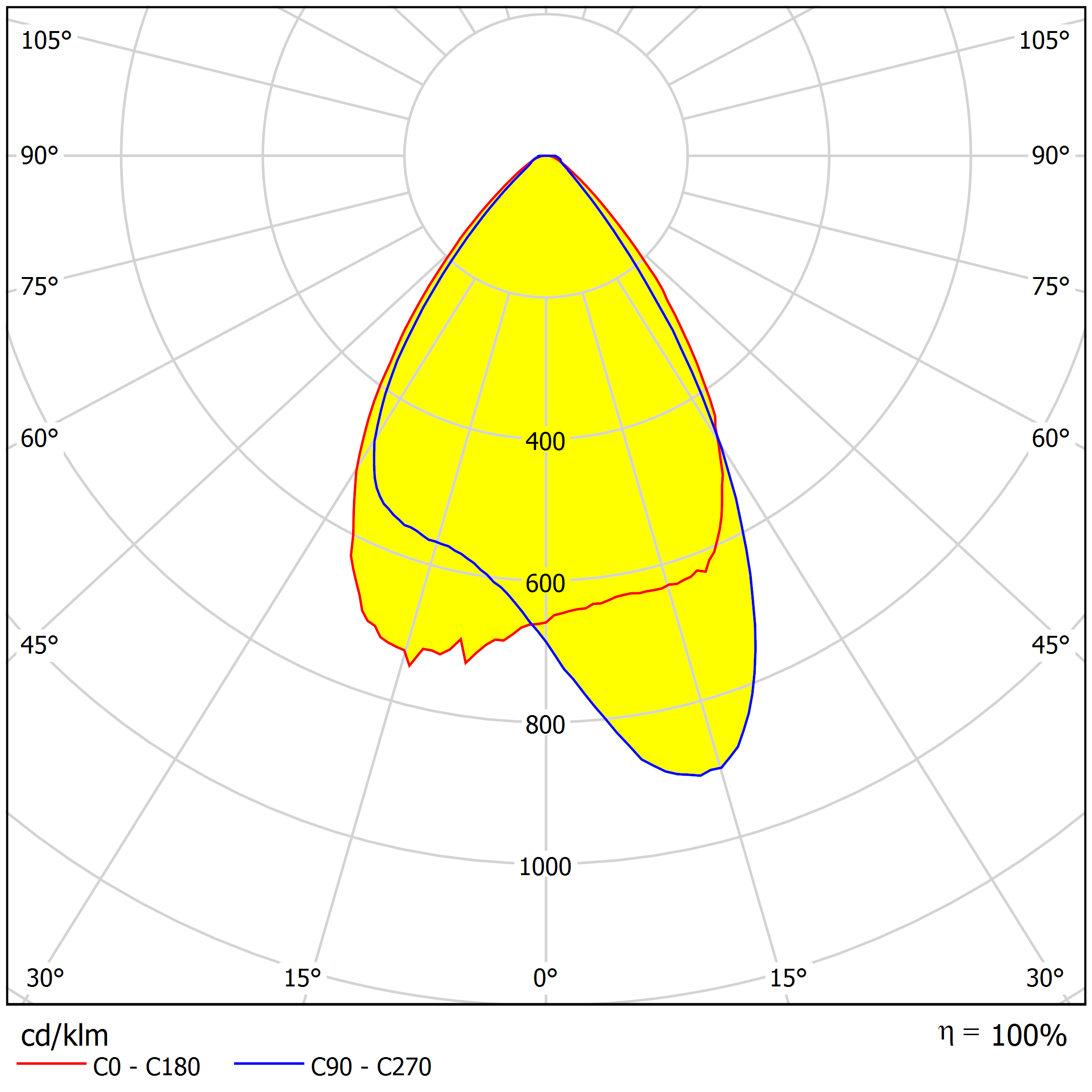

2. The lens provides an asymmetric beam angle of 20 degrees. Asymmetric means that the light distribution is uneven, with a narrower beam angle in one direction and a wider beam angle in the other. This type of lens is often used to direct light in a specific direction or create a particular lighting effect.
3. The lens helps control the direction and spread of light emitted by the 48 LEDs, ensuring that the light is efficiently distributed in the desired area or surface within the asymmetric 20-degree beam angle. It provides a focused illumination pattern with a narrower beam angle on one side and a wider beam angle on the other.
Specifications
| Model: | ASL560D43H48LEDP20G |
| Diameter: | 560mm |
| Height: | 43mm |
| Angle: | asymmetric 20° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting, Office Lighting |
