Model: ARHB256D90LED120G
Diameter: 256mm
Height: 78.5mm
Angle: 120°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030LED

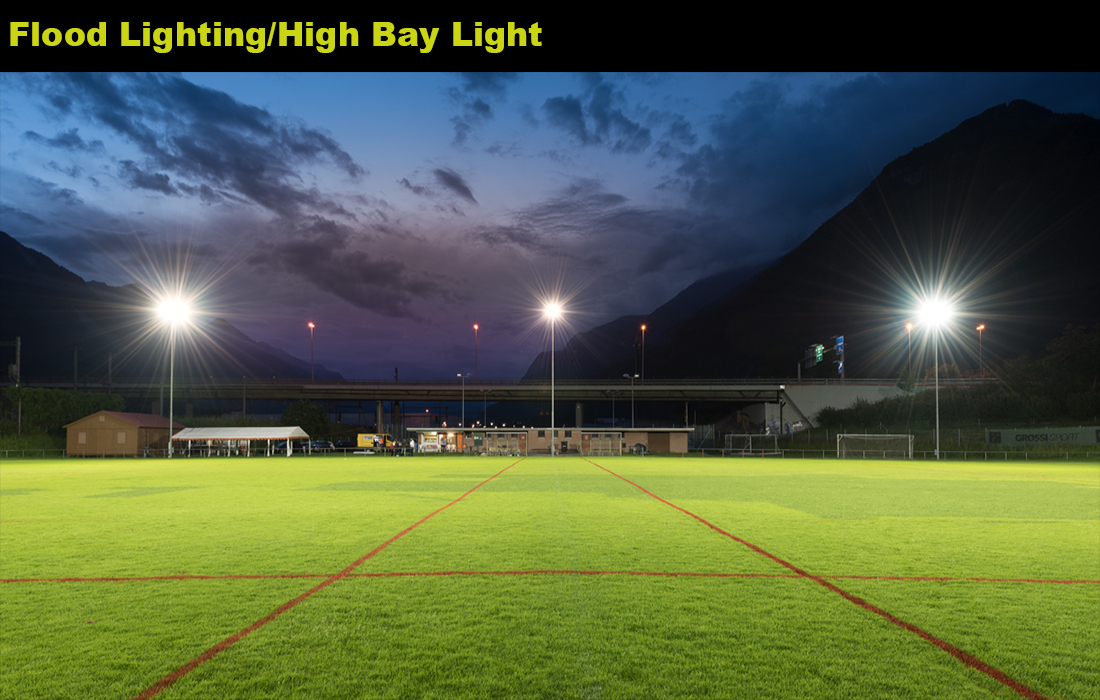

Lighting Applications: Architecture lighting,High Bay lighting
1.256mm 90LED 120degree Provides adequate light output,ideal for lighting large areas.such as factory floors, large warehouses, gymnasiums.
2.The IP66 protection rating makes it resistant to dust and water intrusion, suitable for outdoor use. Can be used for outdoor landscape lighting, such as parks, squares, courtyards, etc., providing soft and even light

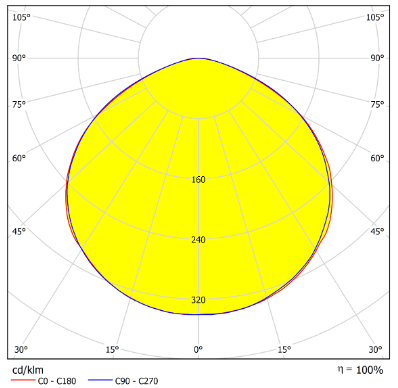

Distribution
Specifications
| Model: | ARHB256D90LED120G |
| Diameter: | 256mm |
| Height: | 78.5mm |
| Angle: | 120° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | 90% |
| LED Applications | 3030LED |
| Lighting applications | Architecture lighting,High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB256D90LED120G lens 3D drawing.STP

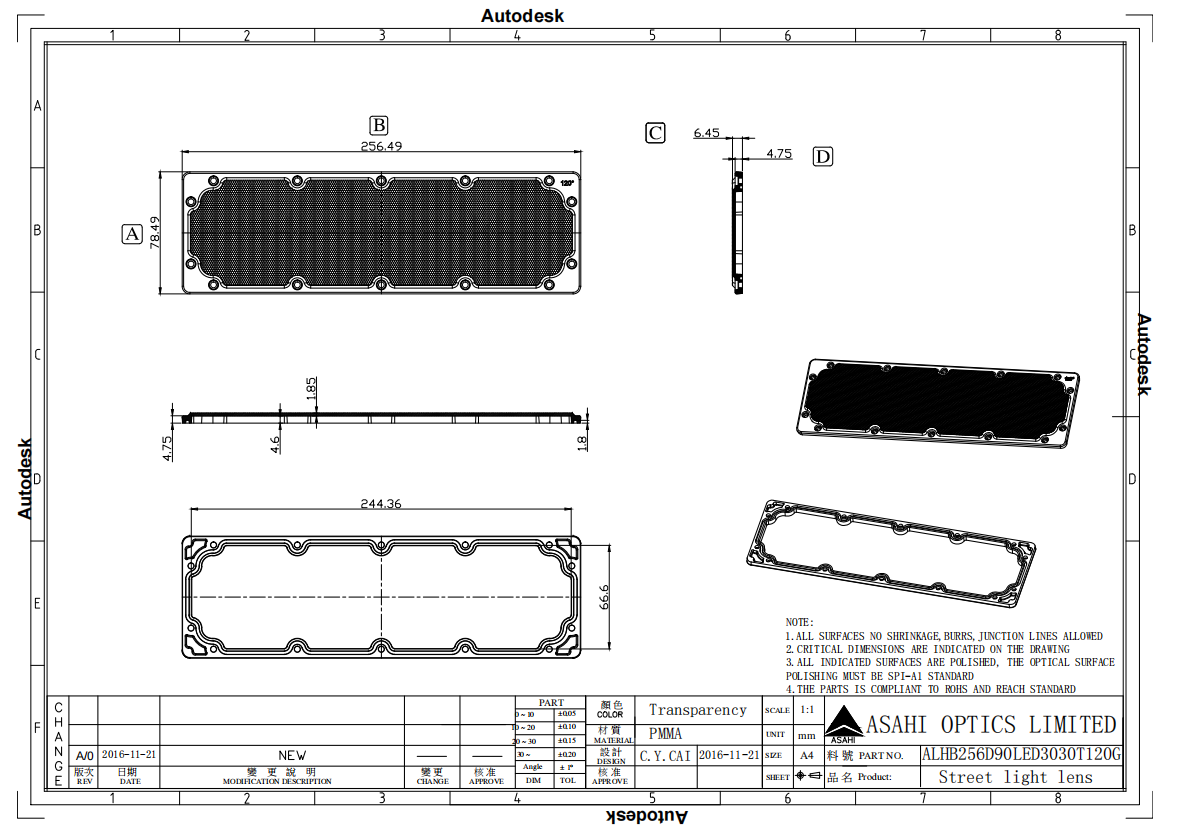

ASAHI OPTICS ARHB256D90LED120G Drawing.dwg
ASAHI OPTICS ARHB256D90LED120G Drawing.pdf
ASAHI OPTICS ARHB256D90LED120G lens IES.ies
