Model: ASL280D61H33LED30G
Diameter: 286mm
Height: 61mm
Angle: 30°
Material: PMMA
Transmittance: >93%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting
1. The lens is designed to produce an asymmetric beam pattern, directing light more strongly in one direction while being less pronounced in the other. This allows for targeted illumination of specific areas or objects.
2. The lens enables precise control over the direction of the light output. This can be advantageous in applications where specific areas or objects need to be illuminated while minimizing light spill in unwanted directions.
3. an asymmetric 20° linear lens offers controlled and targeted lighting with a specific asymmetric beam angle. Its features make it suitable for applications where focused illumination in a specific direction is desired, such as accent lighting, architectural lighting, or highlighting specific objects or areas.

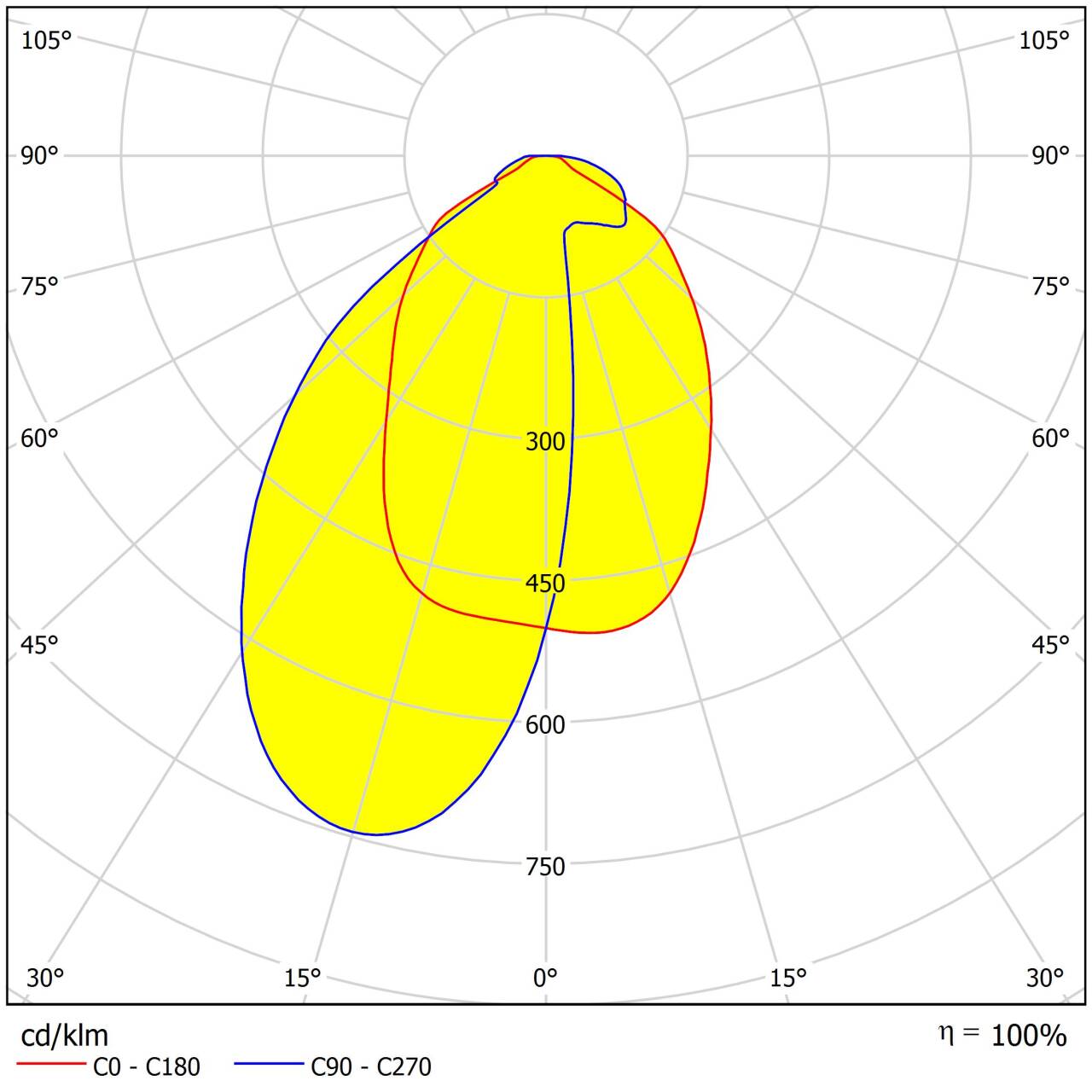

Distribution
Specifications
| Model: | ASL286D61H33LEDA20G |
| Diameter: | 280mm |
| Height: | 61mm |
| Angle: | asymmetric 20° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030LED |
| Lighting applications | Retail lighting, Shelf Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
