336in1 LED Linear Light Guide Lens Series
336in1 LED Linear Light Guide Lens Series

336in1 LED Linear Light Guide Lens Series

Model: AJHB520D336LED

Size: 519.6x99.6 (mm)

Height: 7.0mm

Angle: 60°,90°,60x120°

Material: PC

Transmittance: >88%

LED Type: 2835/3030 LED

Lighting Applications: Shopping malls, supermarkets, warehouse aisles, and shelf lighting

1. Specifically designed for commercial and warehouse lighting, integrating 336 LED lens units. Available in three beam angles – 60°, 90°, and 60°×120° – flexibly meeting different spatial and illumination requirements.

2. Made of PC material with >88% transmittance, compatible with 2835/3030 LEDs. Dimensions: 519.6×99.6mm, as thin as 7.0mm. Suitable for shopping malls, supermarkets, warehouse aisles, and shelf lighting, delivering uniform and smooth linear light output.

Distribution

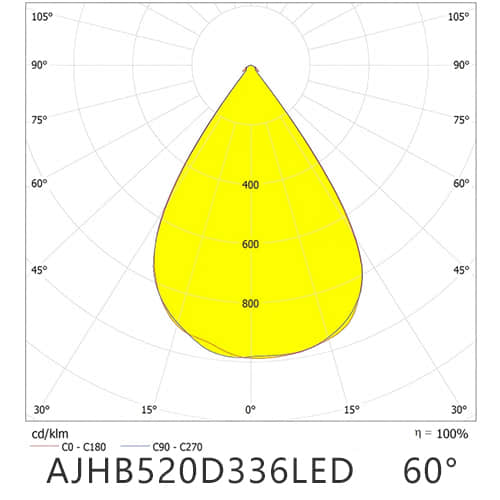

AJHB520D336LED60G distribution

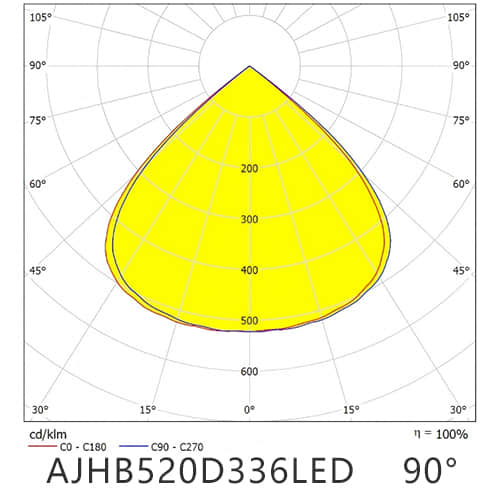

AJHB520D336LED90G distribution

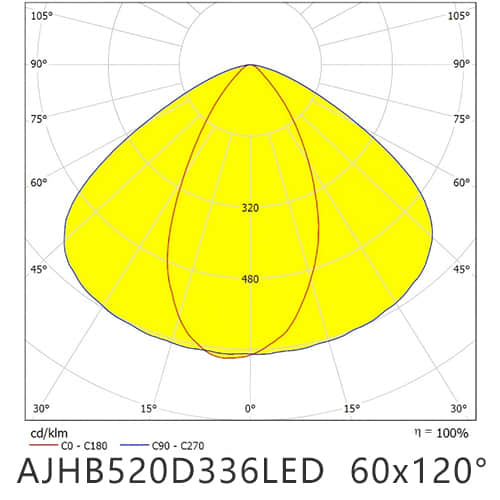

AJHB520D336LED60120G distribution

Specifications

Model: AJHB520D336LED
Size: 519.6x99.6 (mm)
Height: 7.0mm
Angle: 60°,90°,60x120°
Material： PC
Transmittance： >88%
LED Type 2835/3030 LED
Lighting applications Shopping malls, supermarkets, warehouse aisles, and shelf lighting

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

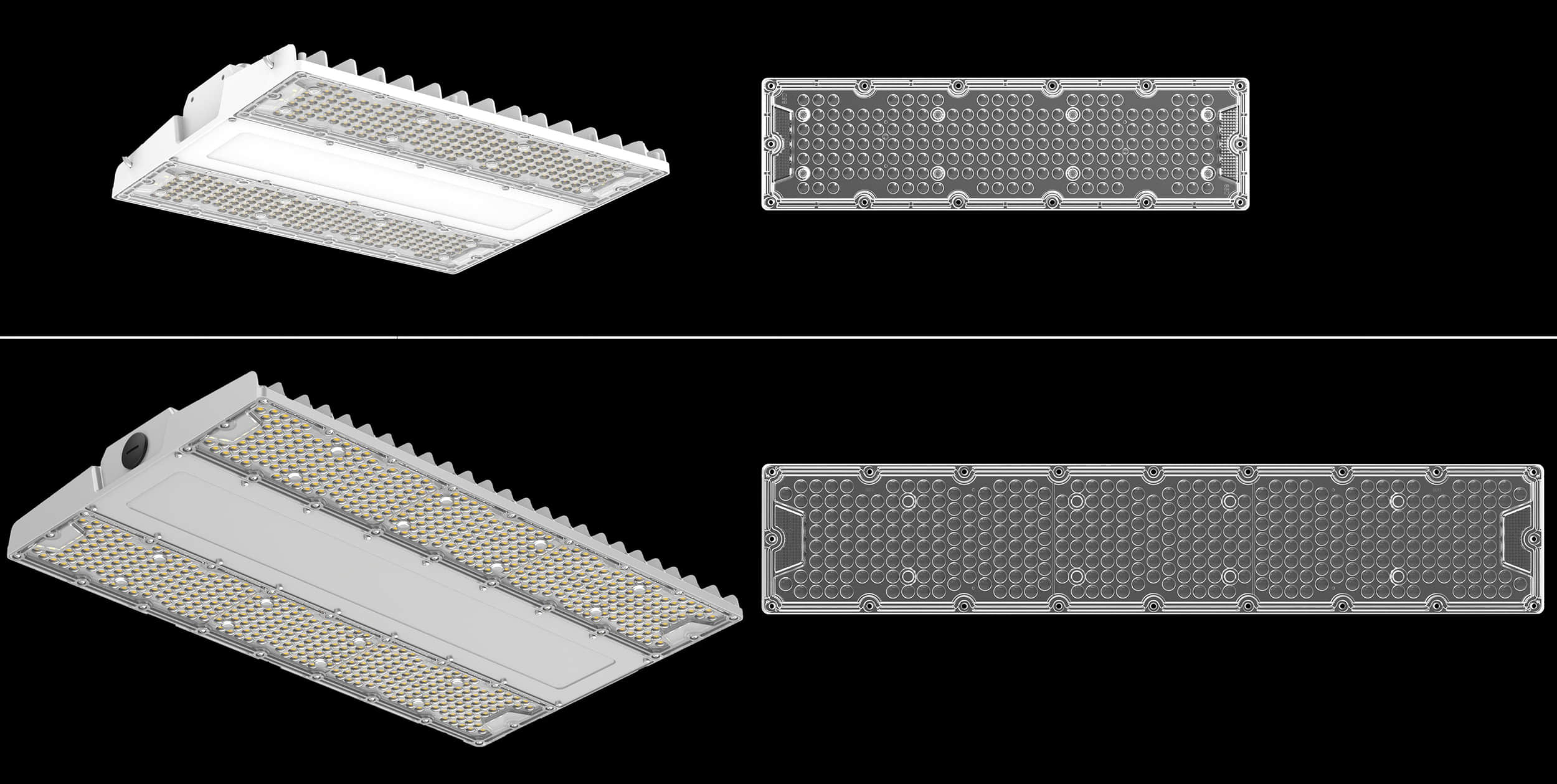

336in1 Linear Light Lens Application

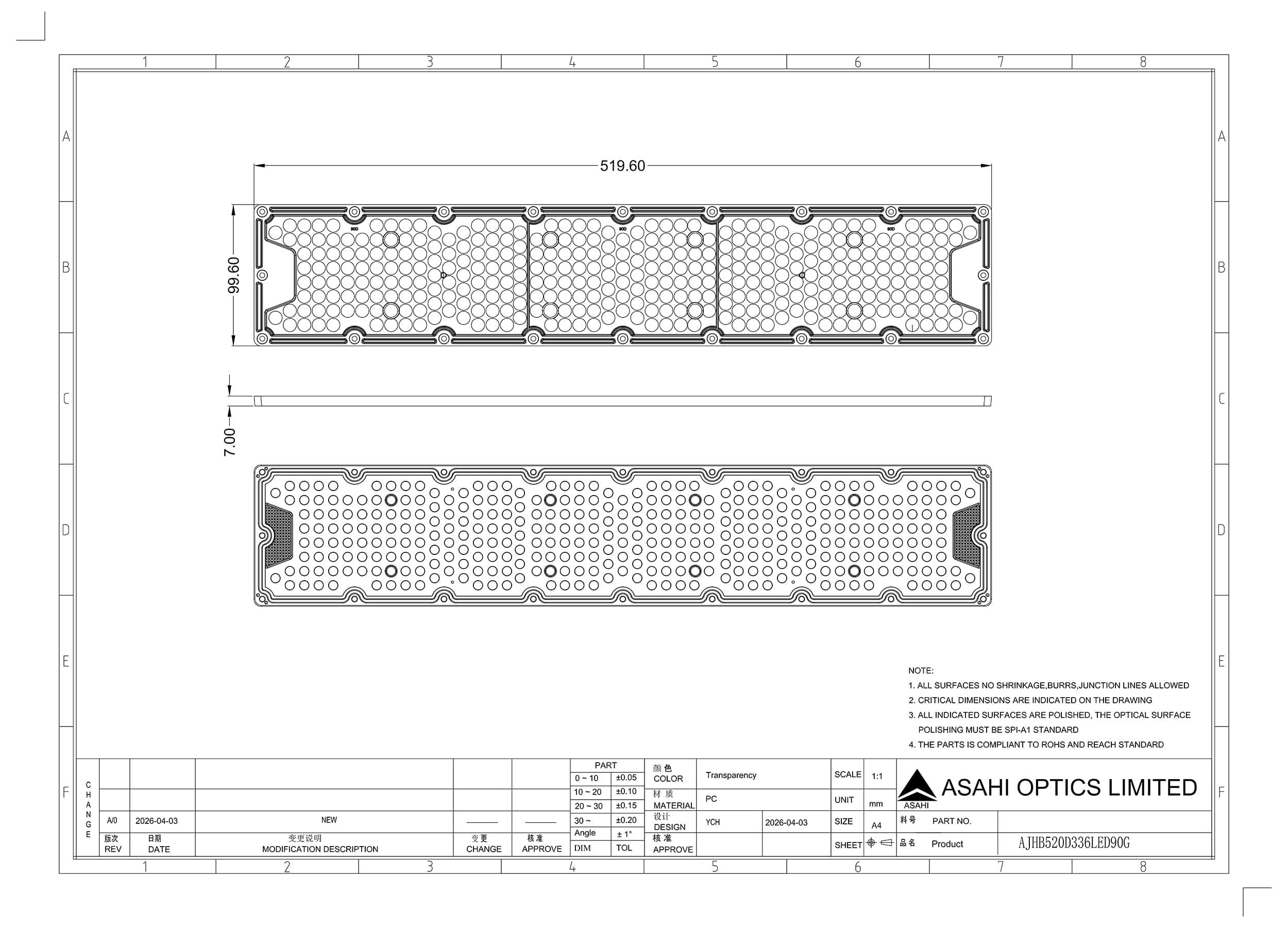

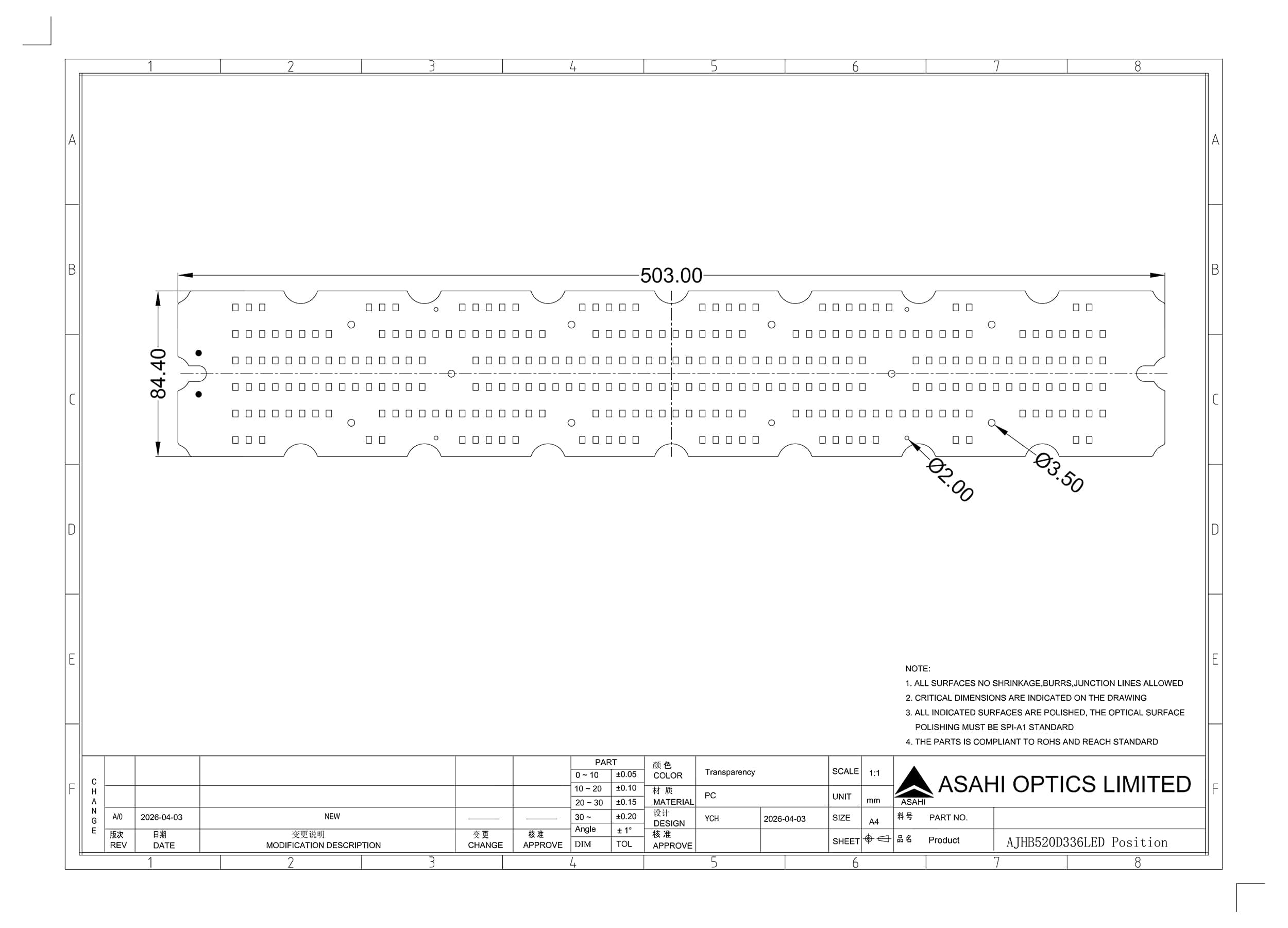

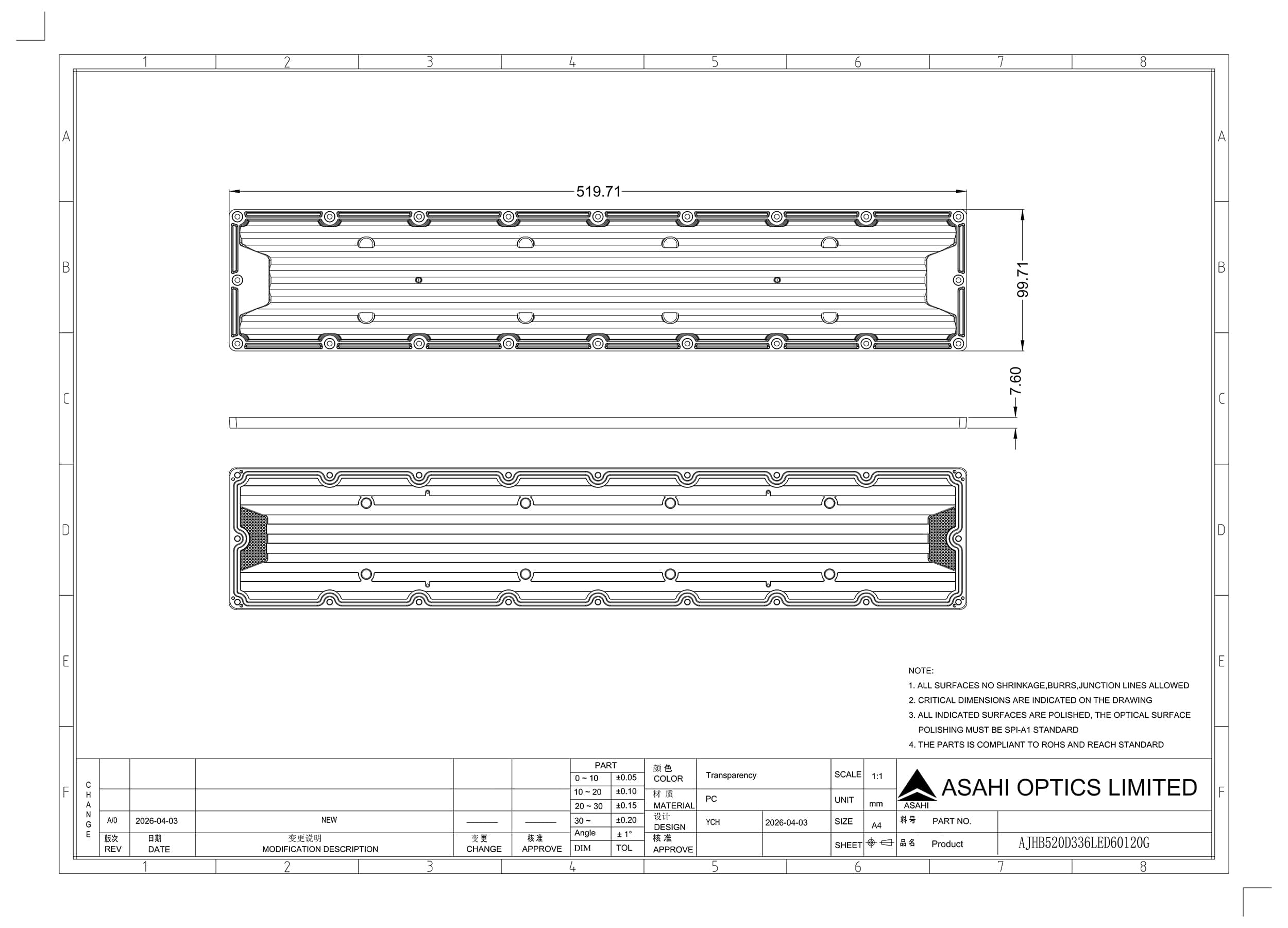

AJHB520D336LED90G DrawingAJHB520D336LED60120G DrawingAJHB520D336LED Position Drawing
