Model: AJST50D8LEDT2
Diameter: 50x50mm
Height: 4.69mm
Angle: T2M
Material: PC
Transmittance: >88%
LED Type: 3030/ 5050LED

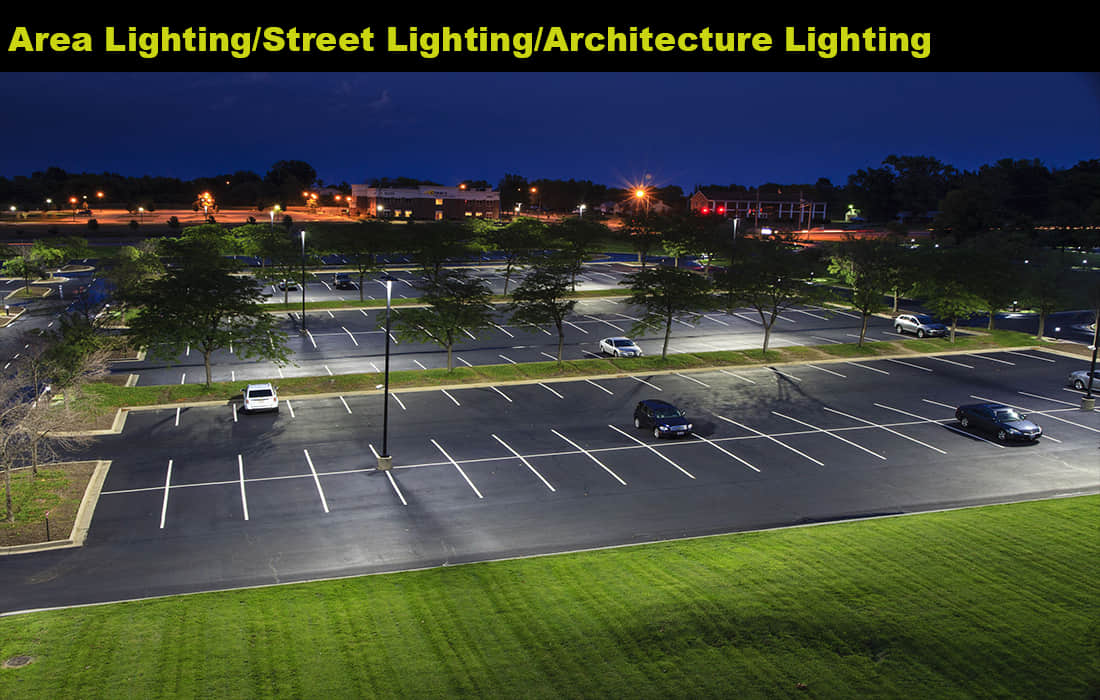

Lighting Applications: Street Lighting
1. The 8LED lens T2M is specifically designed for 5050 LEDs, providing superior light output and uniform distribution for road lighting applications.
2. This 8LED lens maximizes the efficiency of 5050 LEDs, delivering high brightness while minimizing energy consumption. Its design reduces light loss and enhances the performance of LED systems, offering a cost-effective and eco-friendly solution for road lighting.

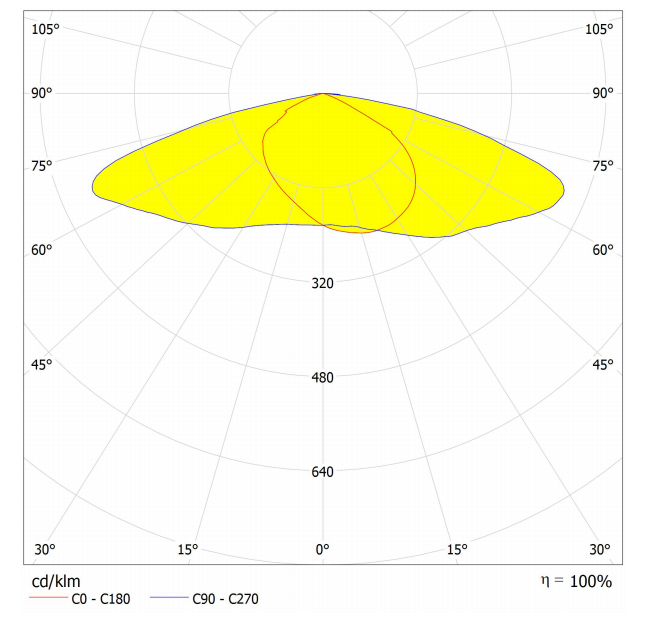

Distribution
Specifications
| Model: | AJST50D8LEDT2 |
| Diameter: | 50x50mm |
| Height: | 4.69mm |
| Angle: | T2M |
| Material： | PC |
| Transmittance： | ＞88% |
| LED Type | 3030/ 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 8LED lens T2M is specifically designed for 5050 LEDs, providing superior light output and uniform distribution for road lighting applications.
2. This 8LED lens maximizes the efficiency of 5050 LEDs, delivering high brightness while minimizing energy consumption. Its design reduces light loss and enhances the performance of LED systems, offering a cost-effective and eco-friendly solution for road lighting.

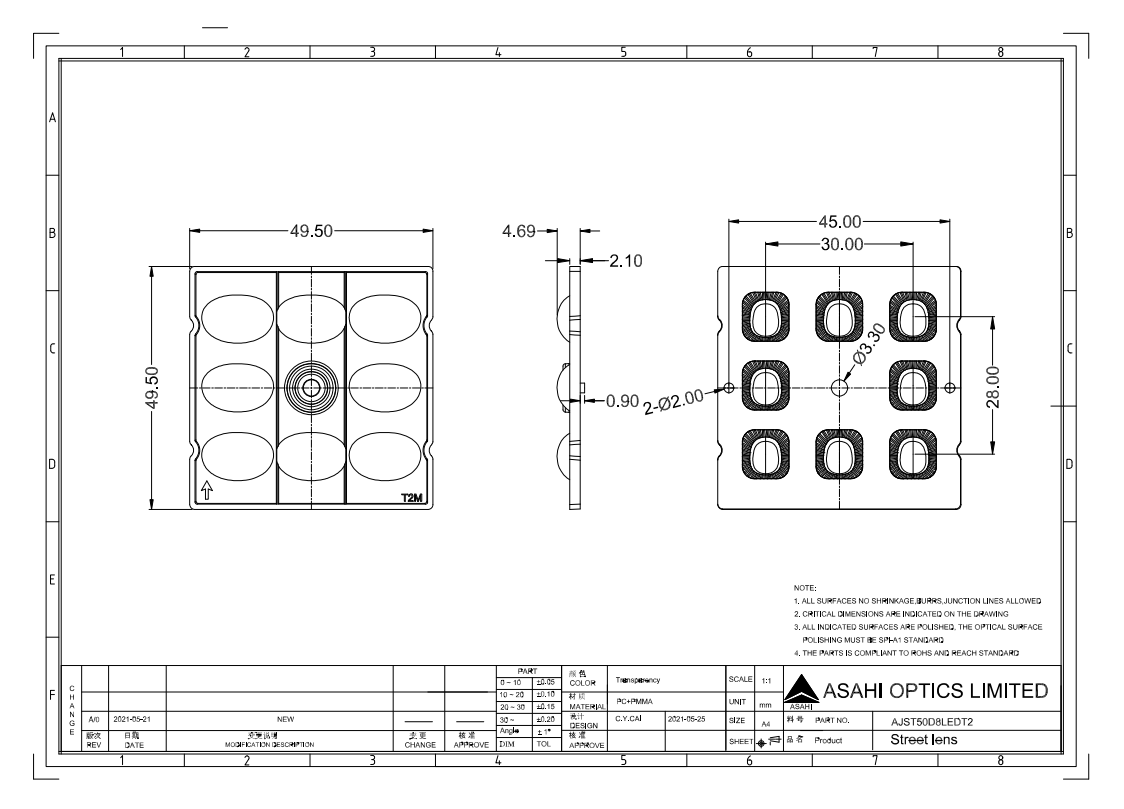

Asahi Optics AJST50D8LEDT2 Drawing.dwg
Asahi Optics AJST50D8LEDT2 Drawing.pdf

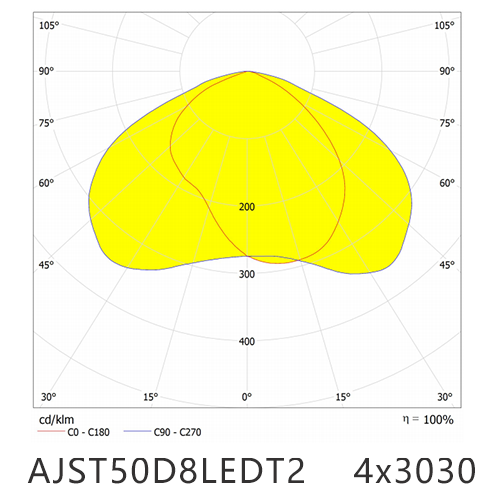

Asahi Optics AJST50D8LEDT2 4x3030LED.ies

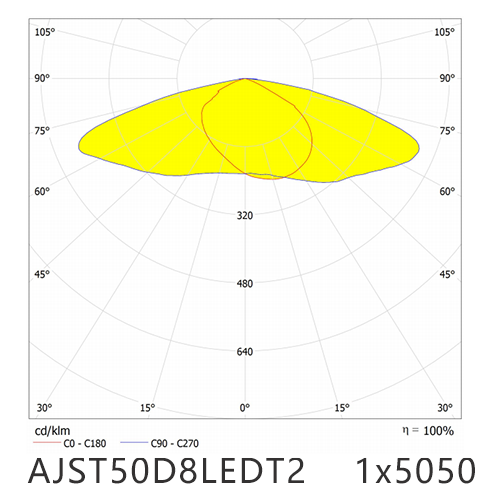

Asahi Optics AJST50D8LEDT2 5050LED.ies
