Model: AN10D7H15G/25G/30G/40G/60G/1560G
Diameter: 10.8mm
Height: 7.0mm
Angle: 15°,25°,30°,40°,60°,15x60°
Material: PMMA
Transmittance: >93%
LED Type: 3030LED, 3535LED
Lighting Applications: Architecture light, Flash light,Stage light

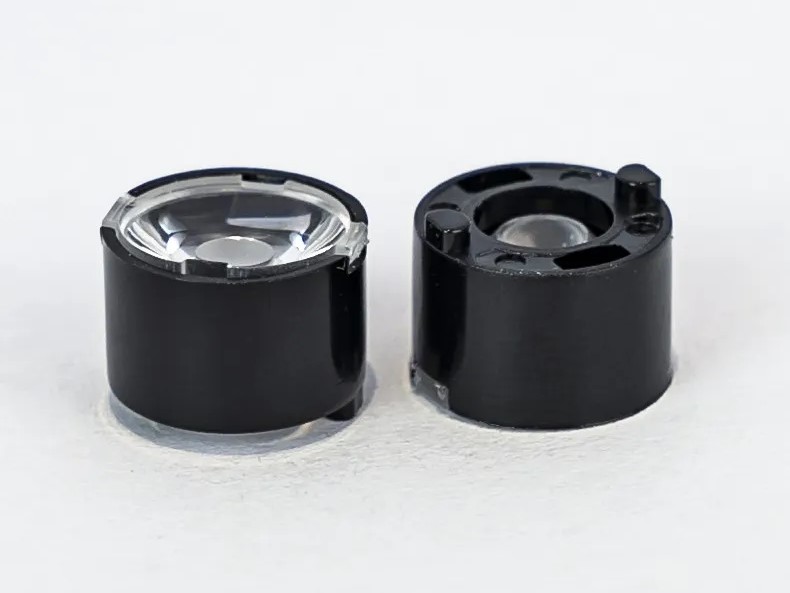

1. The AN series 10mm lens, designed specifically for 3030 and 3535 LEDs, utilizes high-quality PMMA material and boasts over 93% light transmittance.
2. This compact lens, with a diameter of 10.8mm and a height of 7.0mm, offers a variety of beam angles, including 15°, 25°, 30°, 40°, 60°, and 15x60°.
3. Perfectly suited for compact applications such as architectural lighting, flashlights, and stage lighting, its superior optical performance and flexible beam control provide efficient and precise solutions for a variety of professional lighting scenarios.

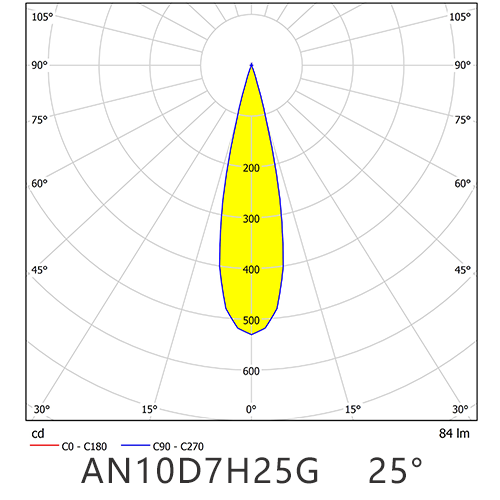

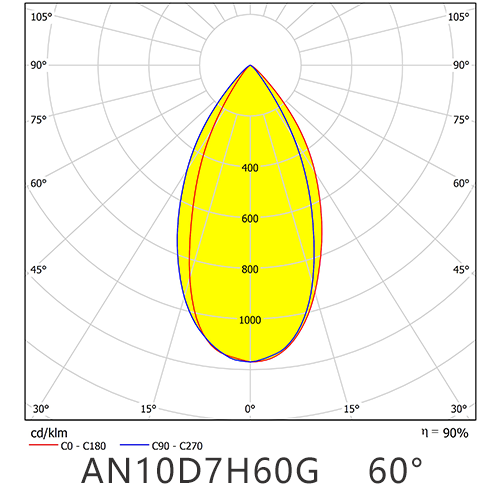

Distribution
Specifications
| Model: | AN10D7H15G/25G/30G/40G/60G/1560G |
| Diameter: | 10.8mm |
| Height: | 7.0mm |
| Angle: | 15°,25°,30°,40°,60°,15x60° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 3030LED, 3535LED |
| Lighting applications | Architecture light, flash light,stage light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optic AN Series Single lens Drawing.stp

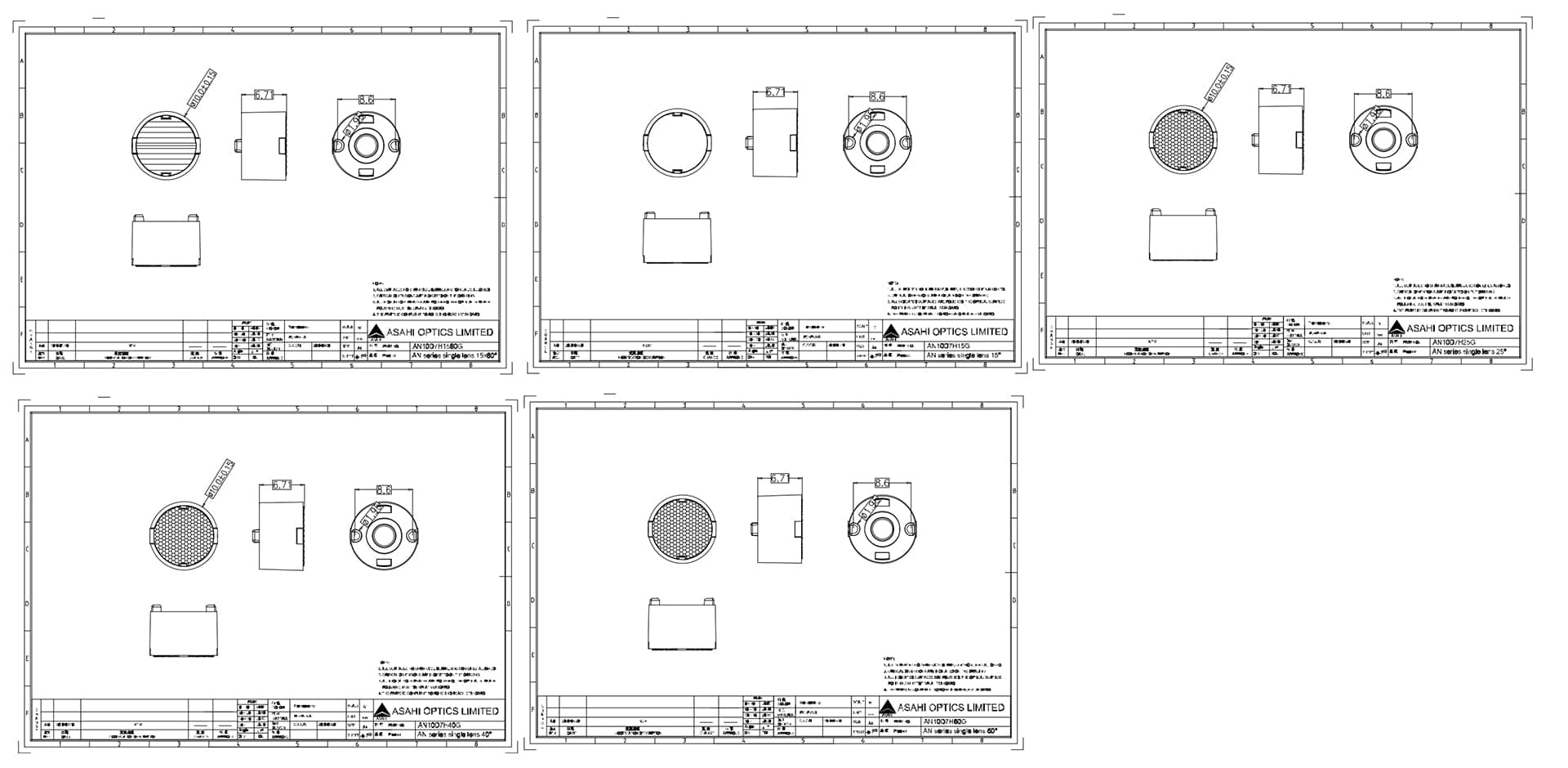

AN10D7H15G30G40G60G1560G 2D Drawing.dwg
