Model: AJHB208D06T60G/90G
Diameter: 206.4mm
Height: 11.3mm
Angle: 60°,90°
Material: PC-1250Z
Transmittance: >88%
LED Type: 2835/3030LED

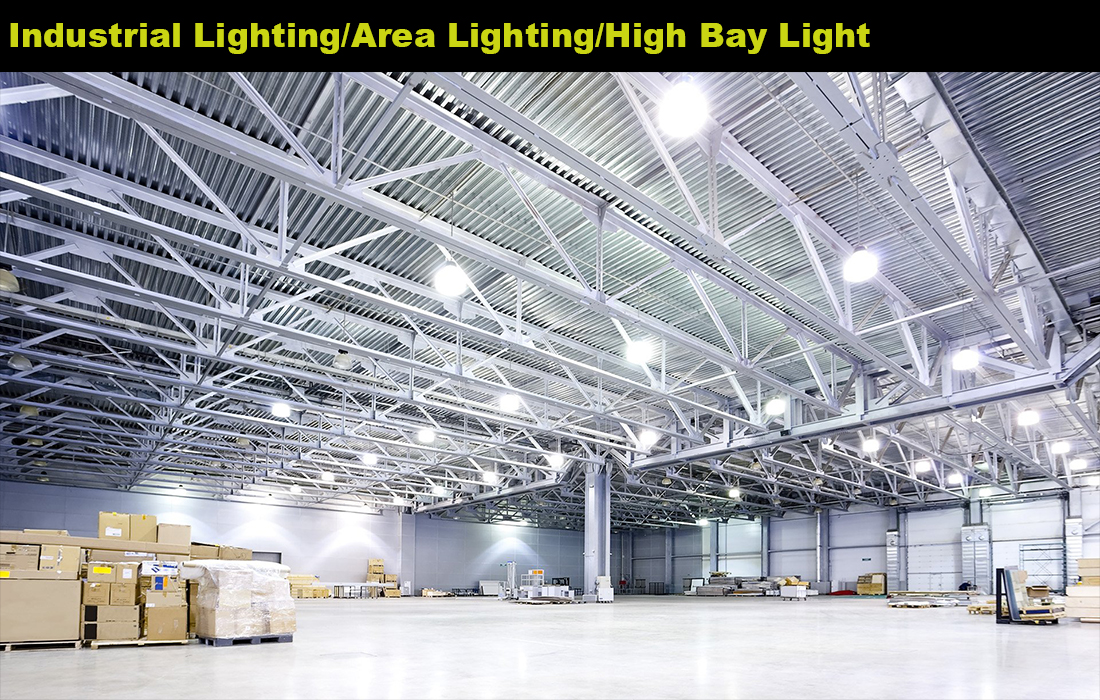

Lighting Applications: Industrial and mining light
1.Our 208mm UFO lenses optimise the optical design for the warehouse high lights, compatible with 2835,3030 LED.

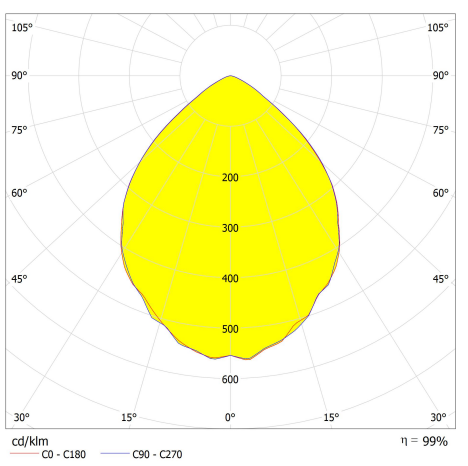

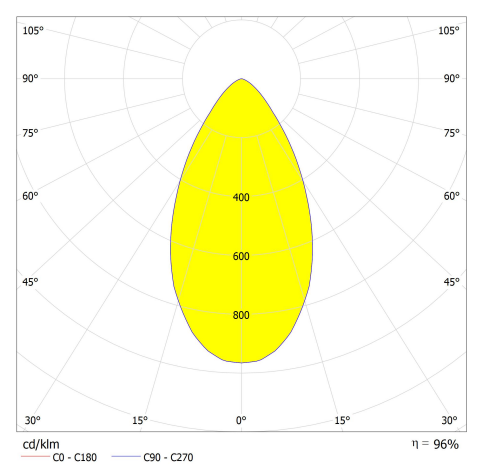

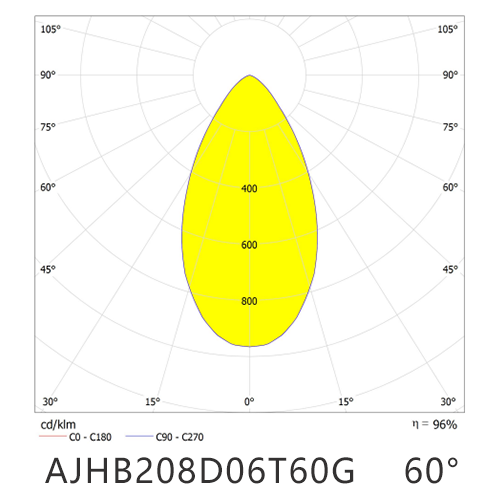

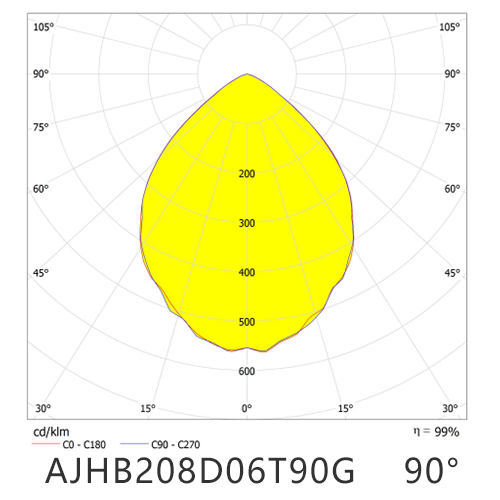

Distribution
Specifications
| Model: | AJHB208D06T60G/90G |
| Diameter: | 206.4mm |
| Height: | 11.3mm |
| Angle: | 60°,90° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Applications | 2835/3030LED |
| Lighting applications | Industrial and mining light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
