Model: ALHB50D24LEDT60
Diameter: 50x50mm
Height: 4.2mm
Angle: 60°
Material: PC
Transmittance: >93%
LED Type: 3030LED
Lighting Applications:

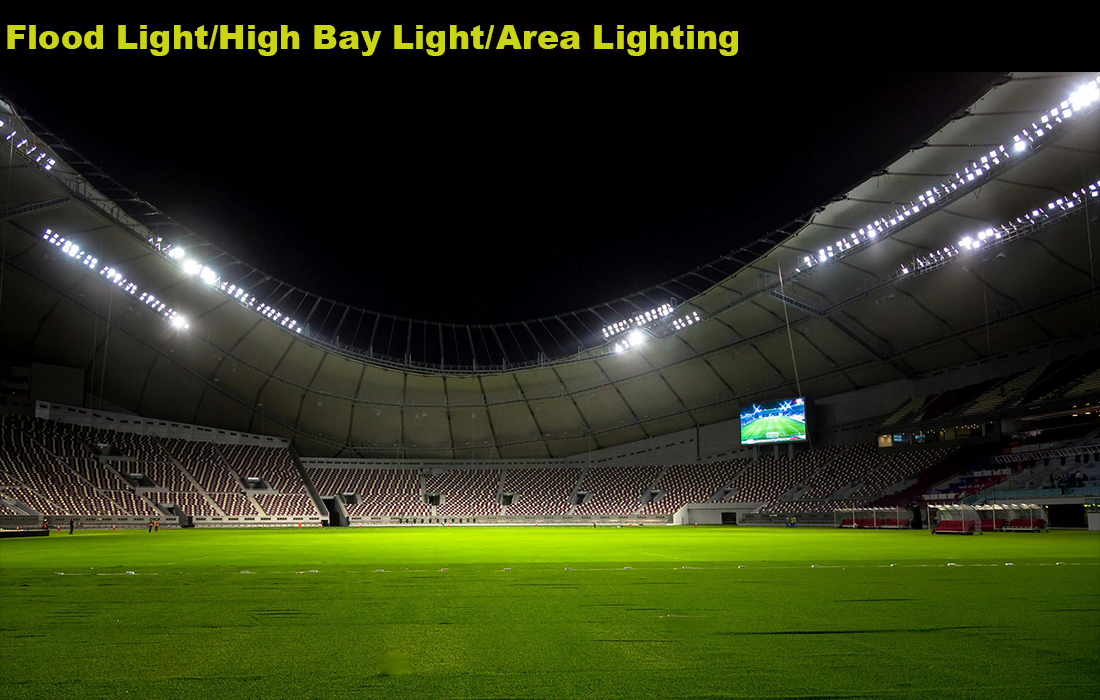

1. The 24in1 lens widely use in various application scenarios, such as indoor lighting, building exterior lighting, landscape lighting, stage lighting, etc.
2. 50mm 4x6 24in1 Array 60degree for Flood Lighting. "Flood" its means the area with wide angle,Floodlights can provide a wide range of lighting and can cover a wider area so that the entire area can be evenly illuminated.

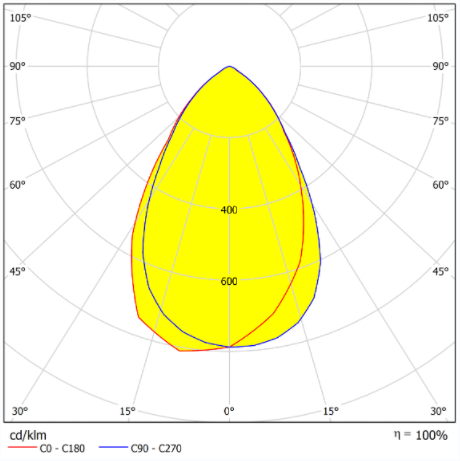

Distribution
Specifications
| Model: | ALHB50D24LEDT60 |
| Diameter: | 50x50mm |
| Height: | 4.2mm |
| Angle: | 60° |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | High bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D24LEDT60 lens 3D Drawing.stp

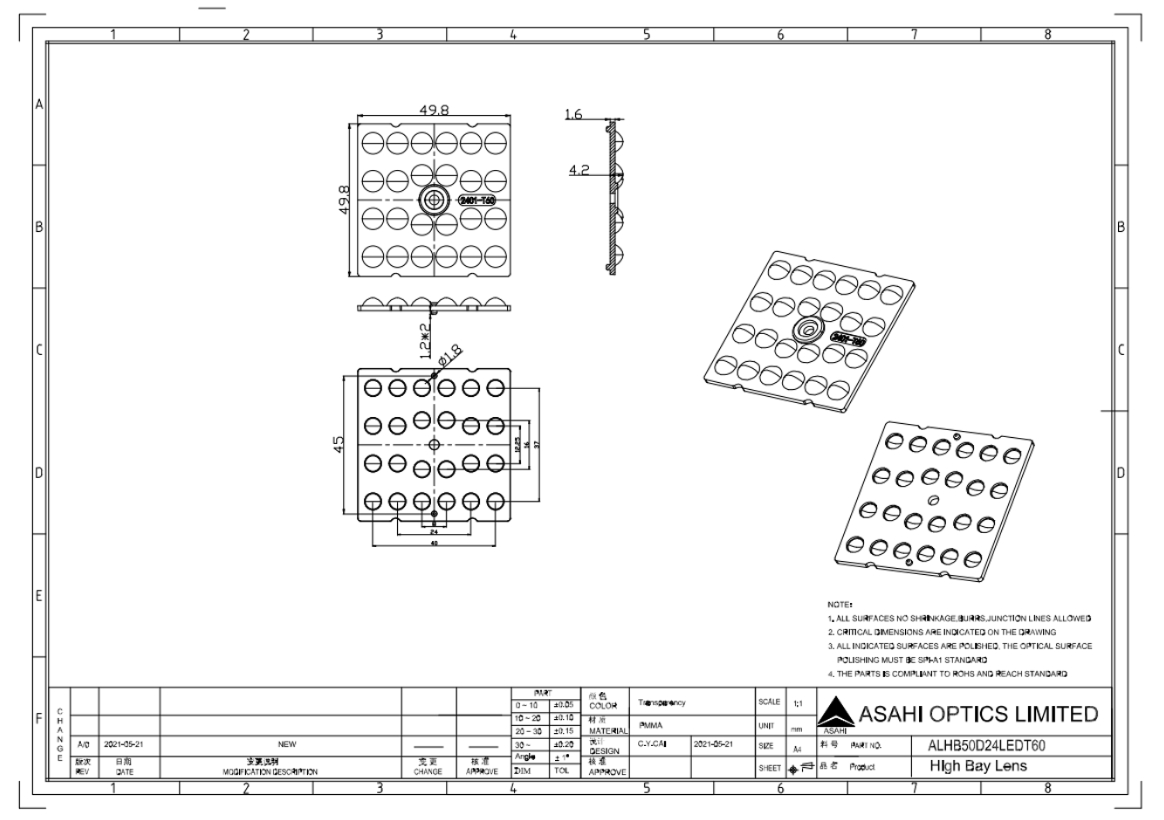

ASAHI OPTICS ALHB50D24LEDT60 Drawing.dwg
ASAHI OPTICS ALHB50D24LEDT60 Drawing.pdf
ASAHI OPTICS ALHB50D24LEDT60 lens IES.ies
ASAHI OPTICS ALST50D24LEDT60 2835LED lens IES.ies
