Model: ALS286D61H33LEDT120G
Diameter: 286mm
Height: 61mm
Angle: 120°
Material: PMMA
Transmittance: >93%
LED Type: 2835/ 3030LED

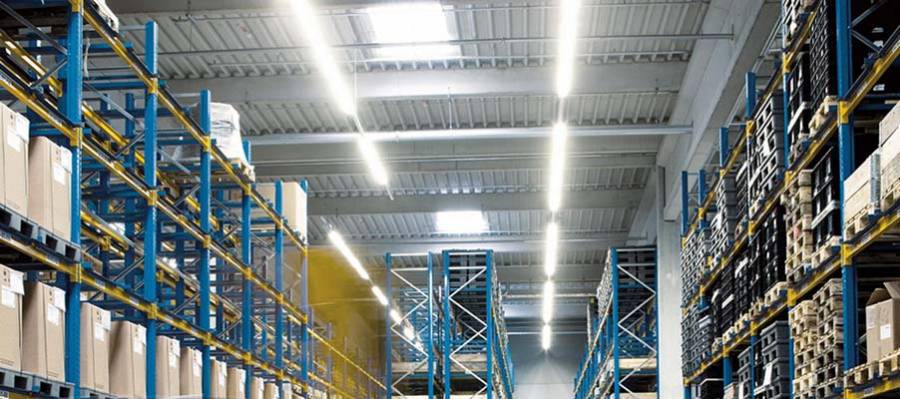

Lighting Applications: Warehouse Lighting, Area Lighting

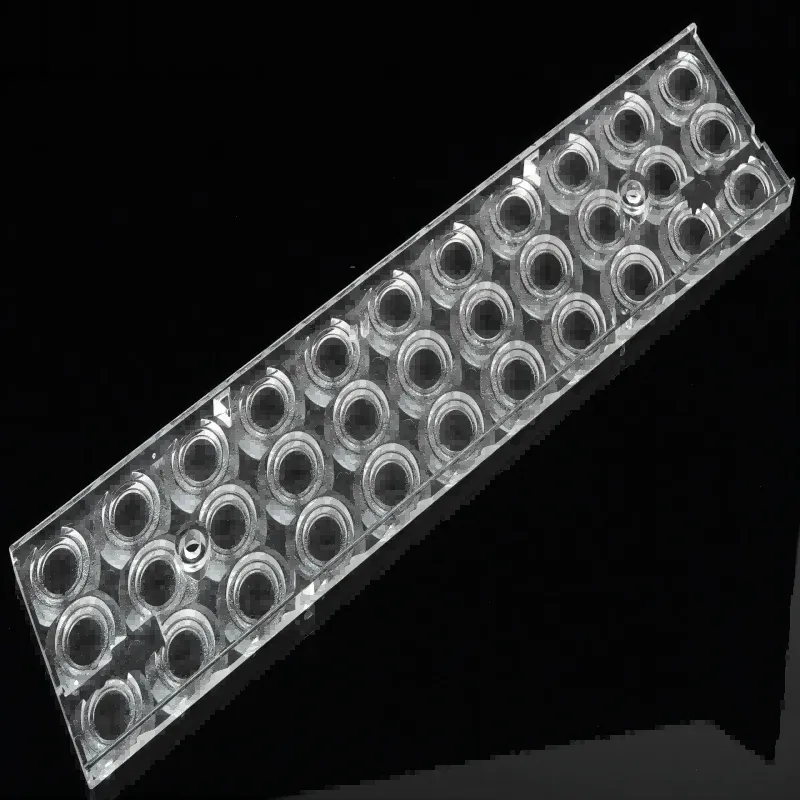

1. This lens is constructed with three rows of individual lens elements aligned in a linear configuration. This design allows for precise control and distribution of light.
2. This linear lens has a specific beam angle of 120°, which determines the spread of light emitted from the source. A 120° beam angle provides a wide and even coverage of light, suitable for applications that require broad illumination.
3. The lens helps to direct and distribute light in a specific pattern. It can be used to achieve uniform illumination across a wide area or to create specific lighting effects, such as warehouse and area lighting.

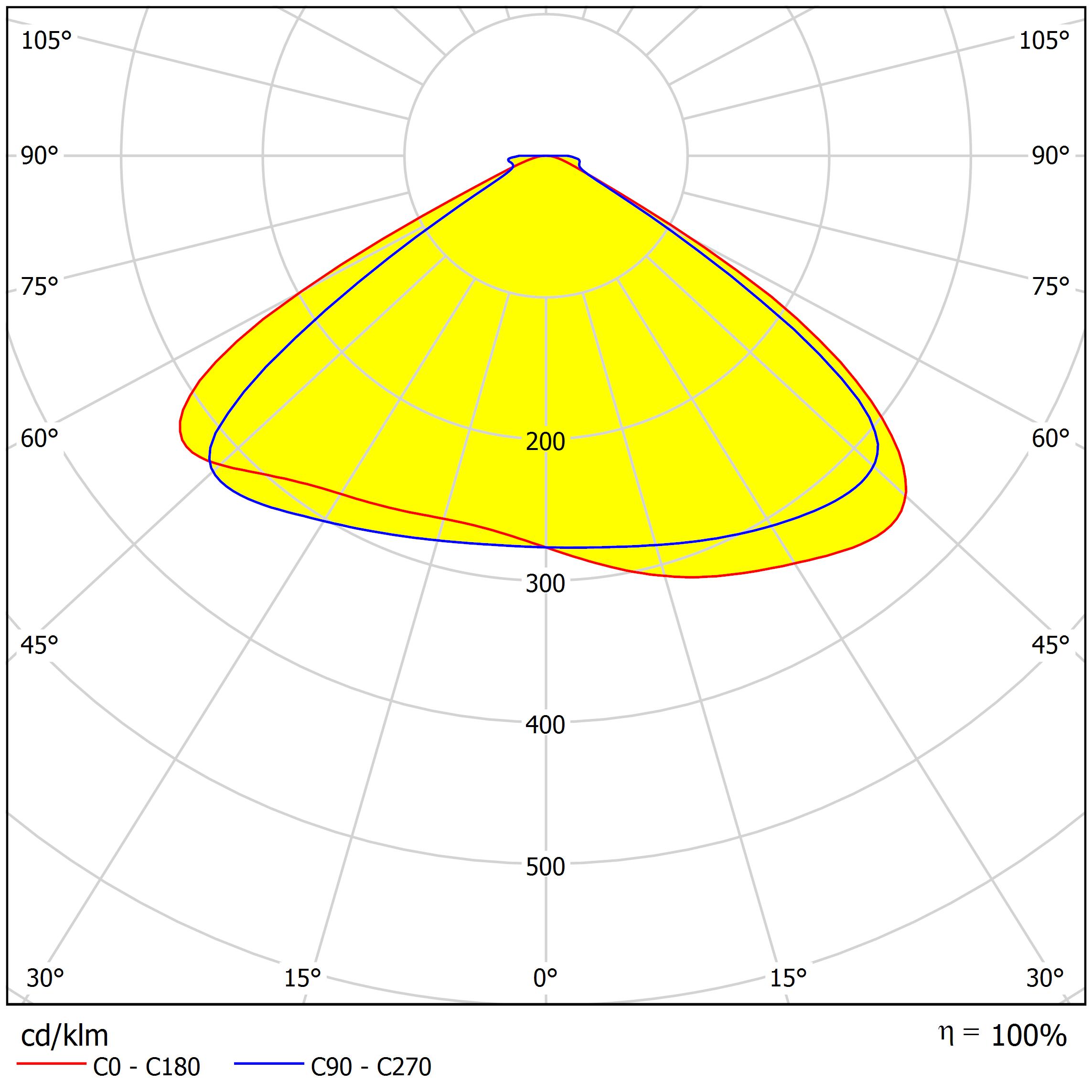

Distribution
Specifications
| Model: | ALS286D61H33LEDT120G |
| Diameter: | 286mm |
| Height: | 61mm |
| Angle: | 120° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Warehouse Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
