41mm RGBW COB lens ultra-narrow beam 8° up to 40° wide beam

41mm RGBW COB lens ultra-narrow beam 8° up to 40° wide beam

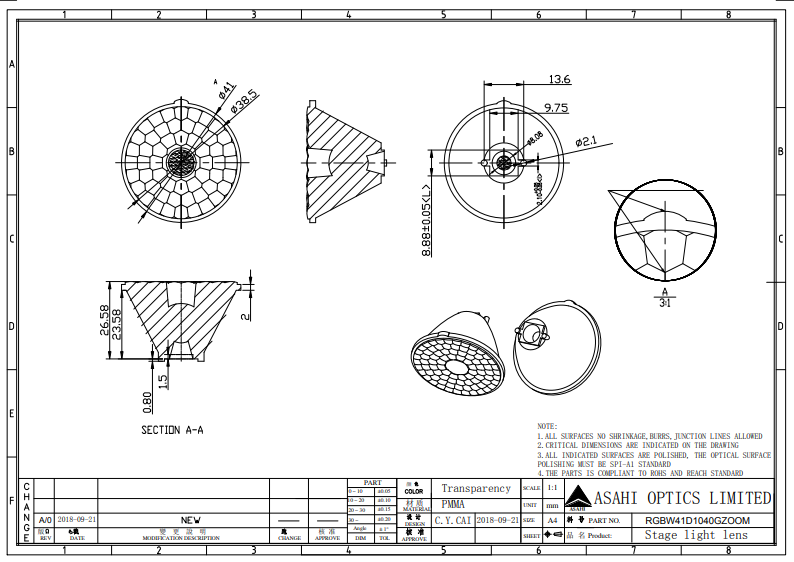

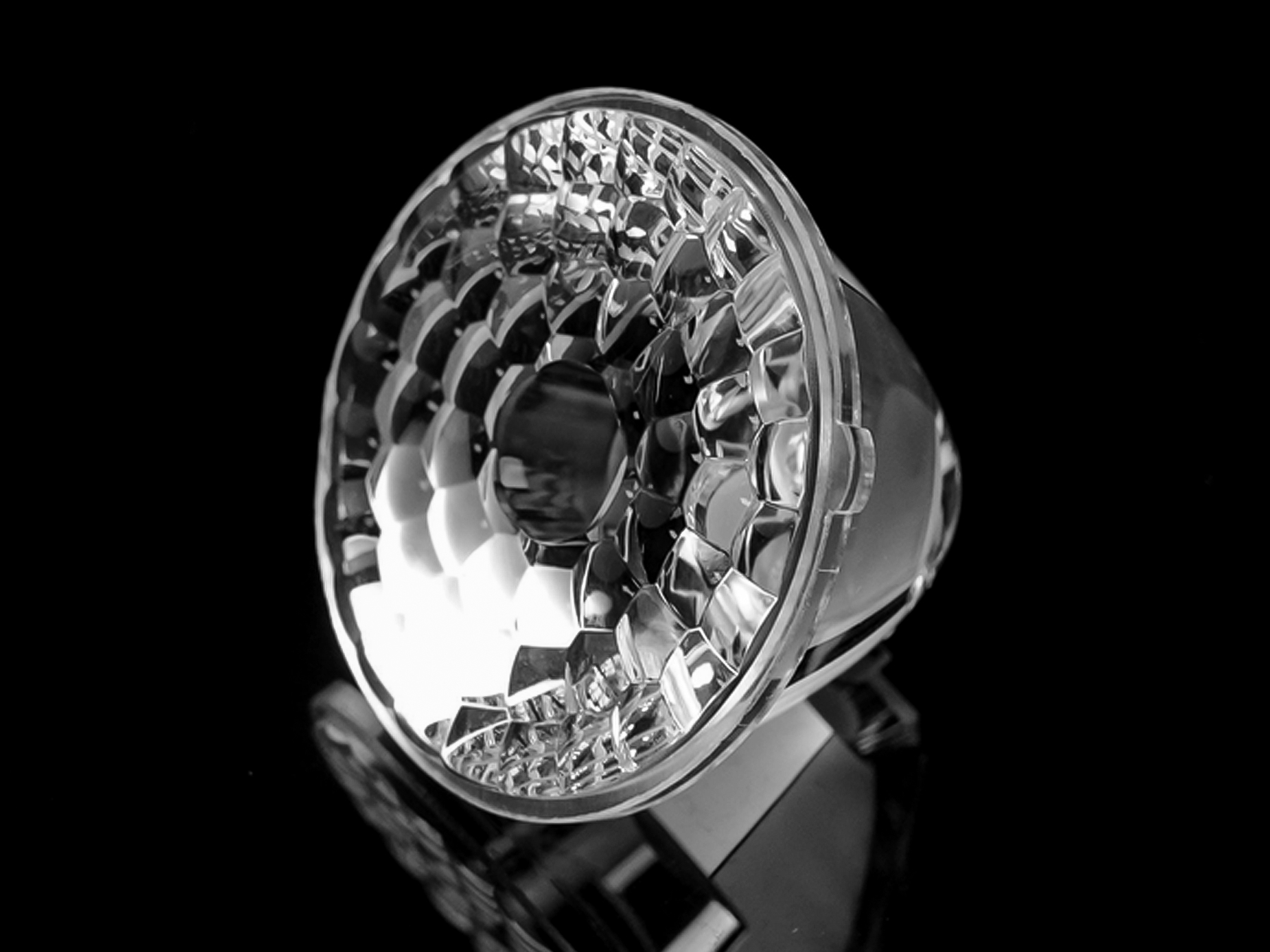

Model: RGBW41D1040G

Diameter: 41.00mm

Height: 26.58

Angle: 10X40°

Material: PMMA

Transmittance: >93%

LED Type: CREE XML-RGBW; OSRAM OSTAR S2W

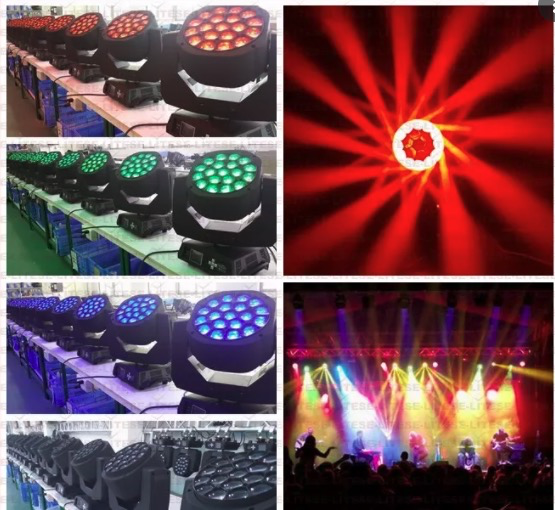

Lighting Applications: stage light

1. RGBW Color Mixing zoom Lenses, 5x zoom from ultra-narrow beam 8° up to 40° wide beam

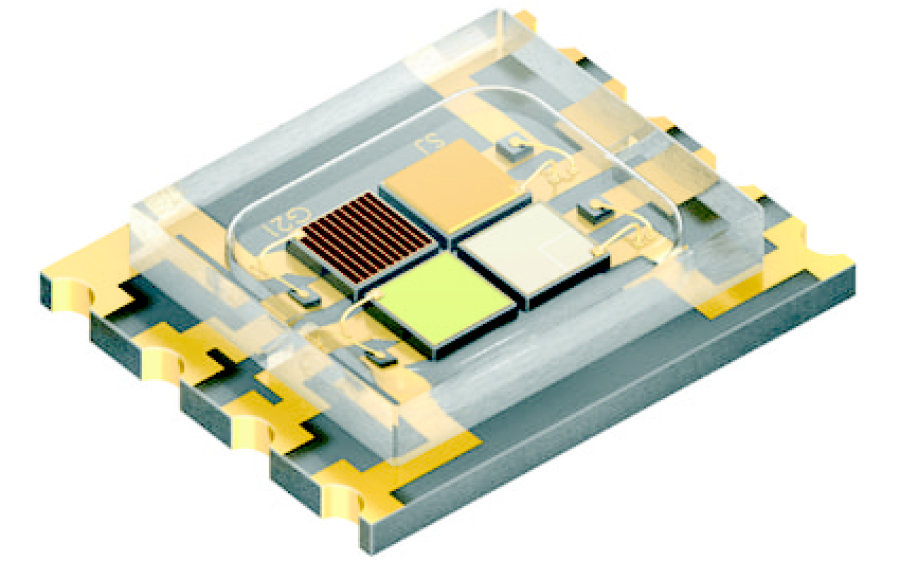

2. This RGBW lens is particularly designed for OSRAM OSTAR® Stage, LE RTDUW S2W osram ostar led.It is a Zoom & Autofocus lens that comply with a Moving Lenslet Array (MLA),

3. The beam angles vary in a range from 8° beam when the MLA is nearly in contact with the lens, up to 45°wide beam when the MLA is made sliding over the lens for a 5x zoom function.

Distribution

---

Specifications

Model:	RGBW41D1040G
Diameter:	41mm
Height:	26.58mm
Angle:	10X40°
Material：	PMMA
Transmittance：	>93%
LED Applications	CREE XML-RGBW; OSRAM OSTAR S2W
Lighting applications	stage light

LED Type

XML-RGBW

OSRAM OSTAR S2W

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

RGBW Color Mixing zoom Lenses, 5x zoom from ultra-narrow beam 8° up to 40° wide beam

This RGBW lens is particularly designed for OSRAM OSTAR® Stage, LE RTDUW S2W osram ostar led

It is a Zoom & Autofocus lens that comply with a Moving Lenslet Array (MLA),

The beam angles vary in a range from 8° beam when the MLA is nearly in contact with the lens, up to 45°wide beam when the MLA is made sliding over the lens for a 5x zoom function

Asahi Optics competes with European brands' optical design to better improve lighting performance.

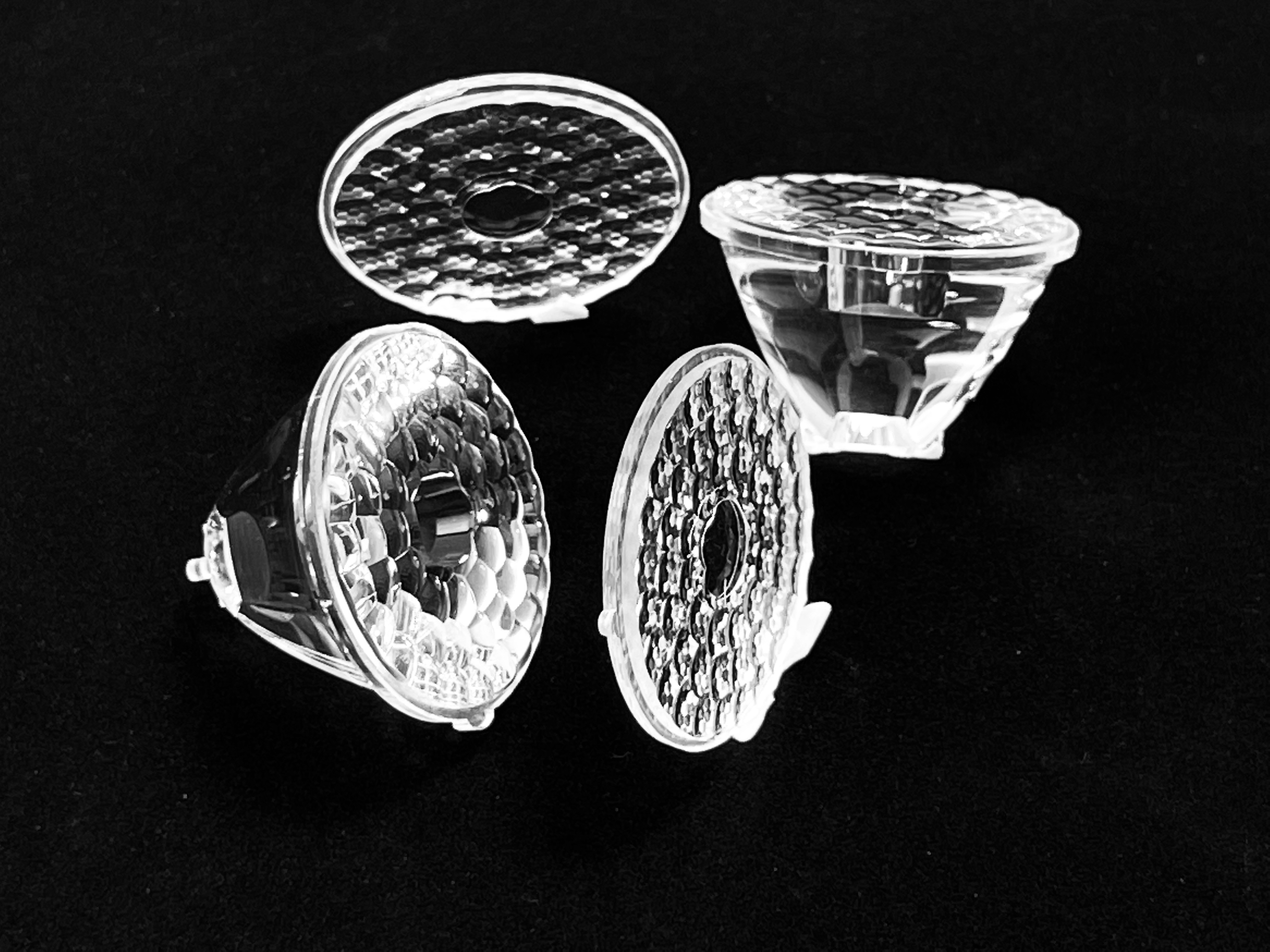

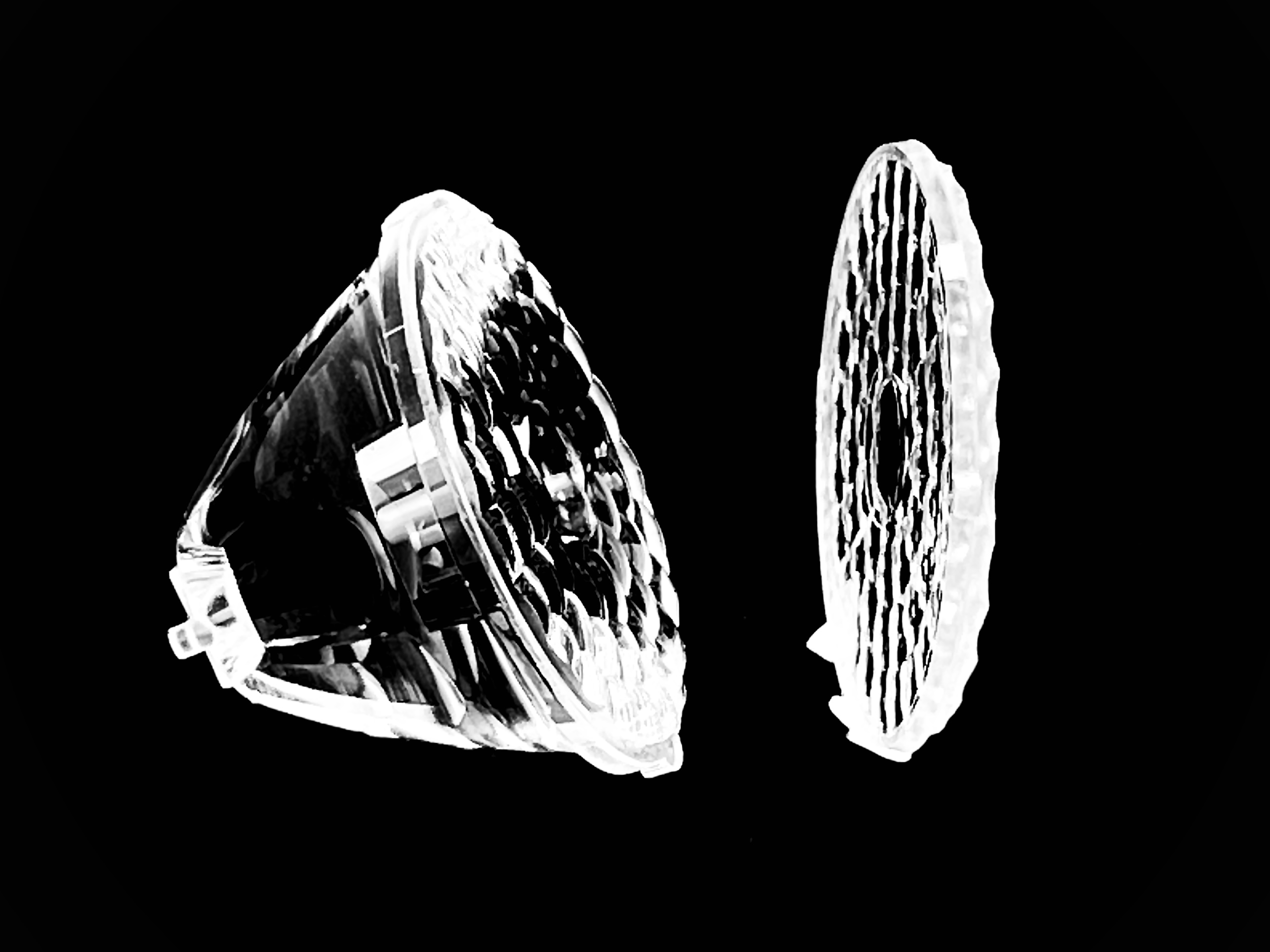

RGBW ZOOM RGBW ZOOM1
