173mm-Mx Family Lighting lens Compatible with 2x6 ZHAGA
173mm-Mx Family Lighting lens Compatible with 2x6 ZHAGA

173mm-Mx Family Lighting lens Compatible with 2x6 ZHAGA

Model: ALHB173DXXLED60G

Diameter: 173mm+71.4mm

Height: 10.38mm

Angle: 60°

Material: PC-1250Z

Transmittance: >90%

LED Type: "2835""3030""5050"LED

Lighting Applications: high bay lighting

Specifications

Model: ALHB173DXXLED60G
Diameter: 173mm+71.4mm
Height: 10.38mm
Angle: PC-1250Z
Material： PC
Transmittance： >90%
LED Applications "2835""3030""5050"LED
Lighting applications high bay lighting

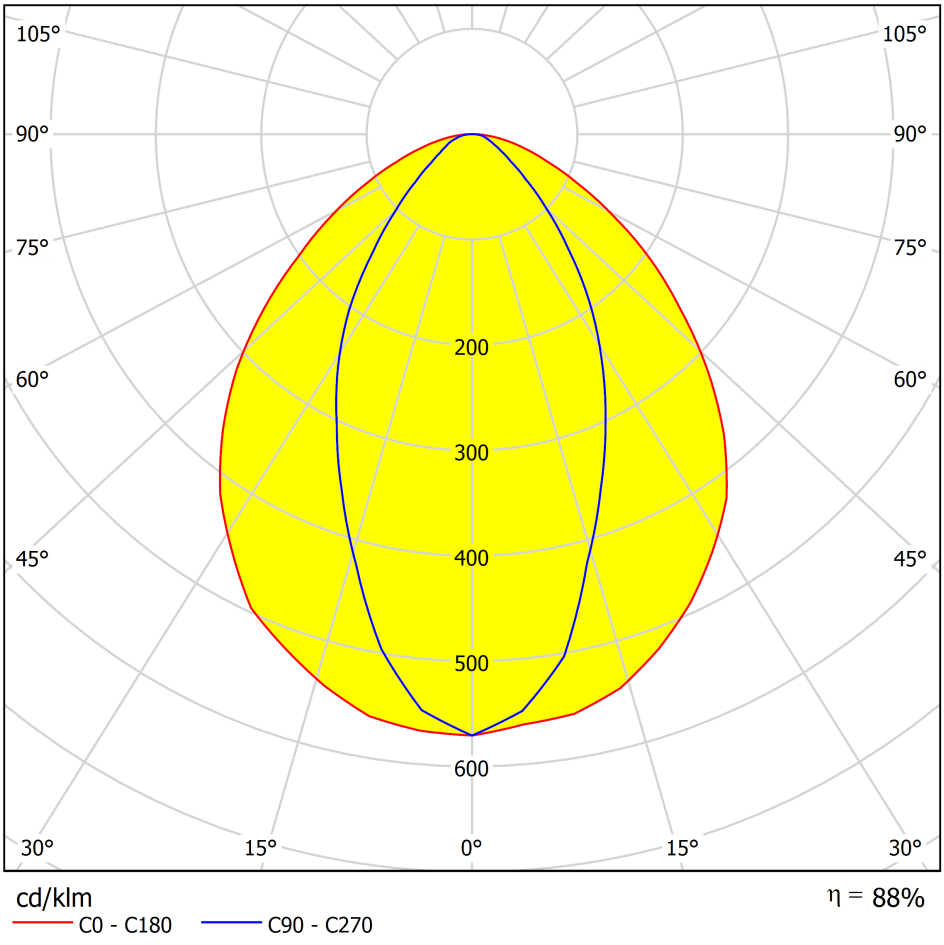

Light Distribution Curve

ALHB173DXXLED60G Light Distribution



This lens' family are flexible for customers to place LEDs freely to meet different requirements.

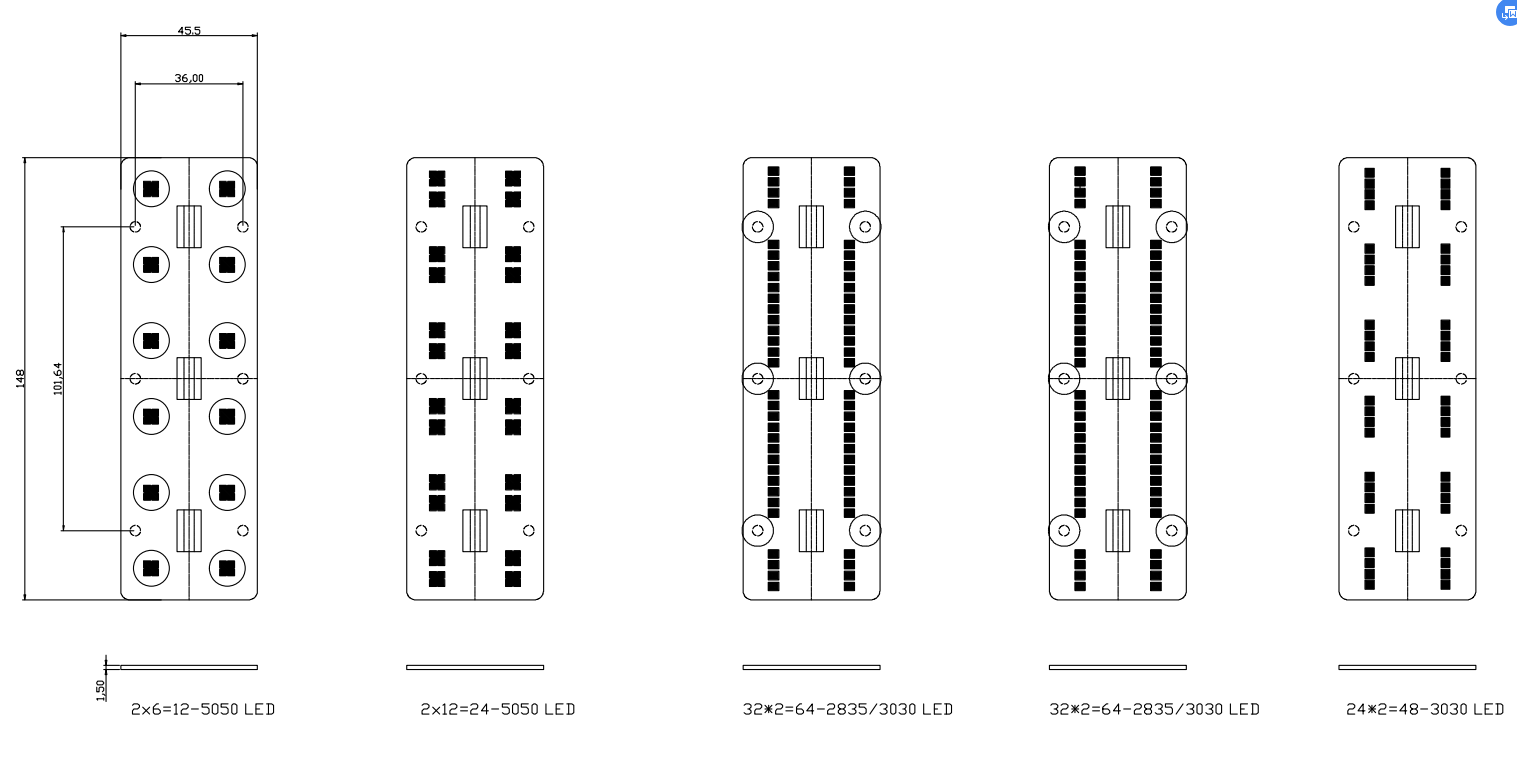

PCB Layout



173mm Mx Family Lighting lens Compatible with 2x6 ZHAGA Distribution 173mm Mx Family Lighting lens Compatible with 2x6 ZHAGA Drawing
