Model: AJHB236D64LEDT120
Diameter: 236mm
Height:
Angle: 120°
Material: PC-1250Z
Transmittance: >90%
LED Type: 2835/3030 LED
Lighting Applications: High Bay Lighting, Area Lighting

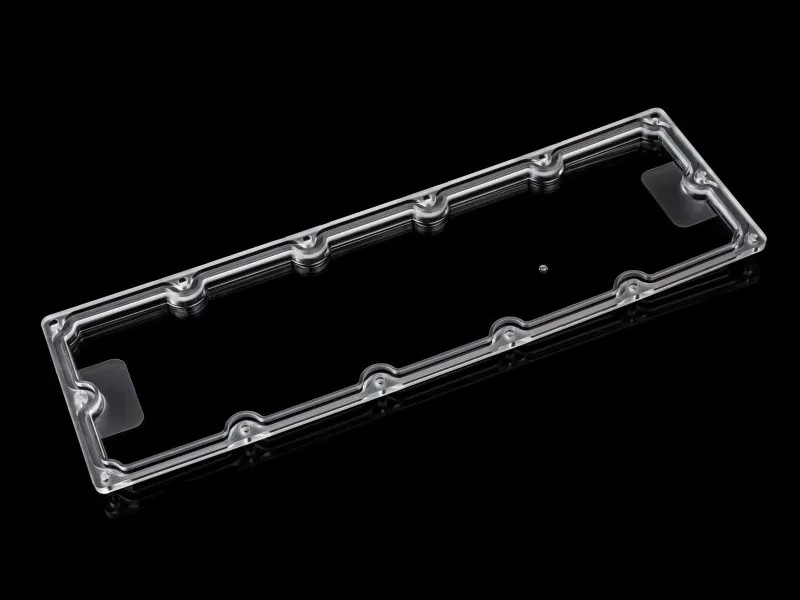

1.Featuring a transparent cover design, allows for the flexible arrangement of LED positions.
2.With a wide-angle of 120 degrees, the product is well-suited for broad-angle lighting applications.
3.This design ensures expansive coverage and effective illumination across larger areas. IP66 rating,suitable for use in challenging weather conditions, providing reliable performance in various environmental settings.

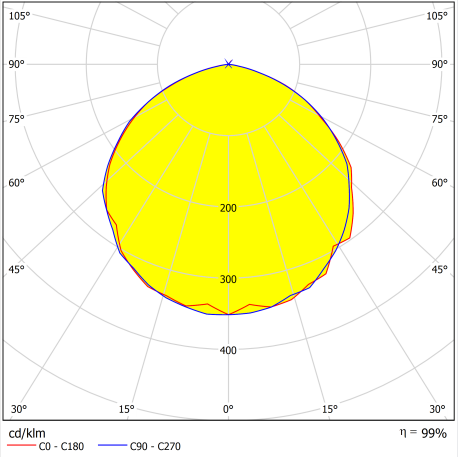

Distribution
Specifications

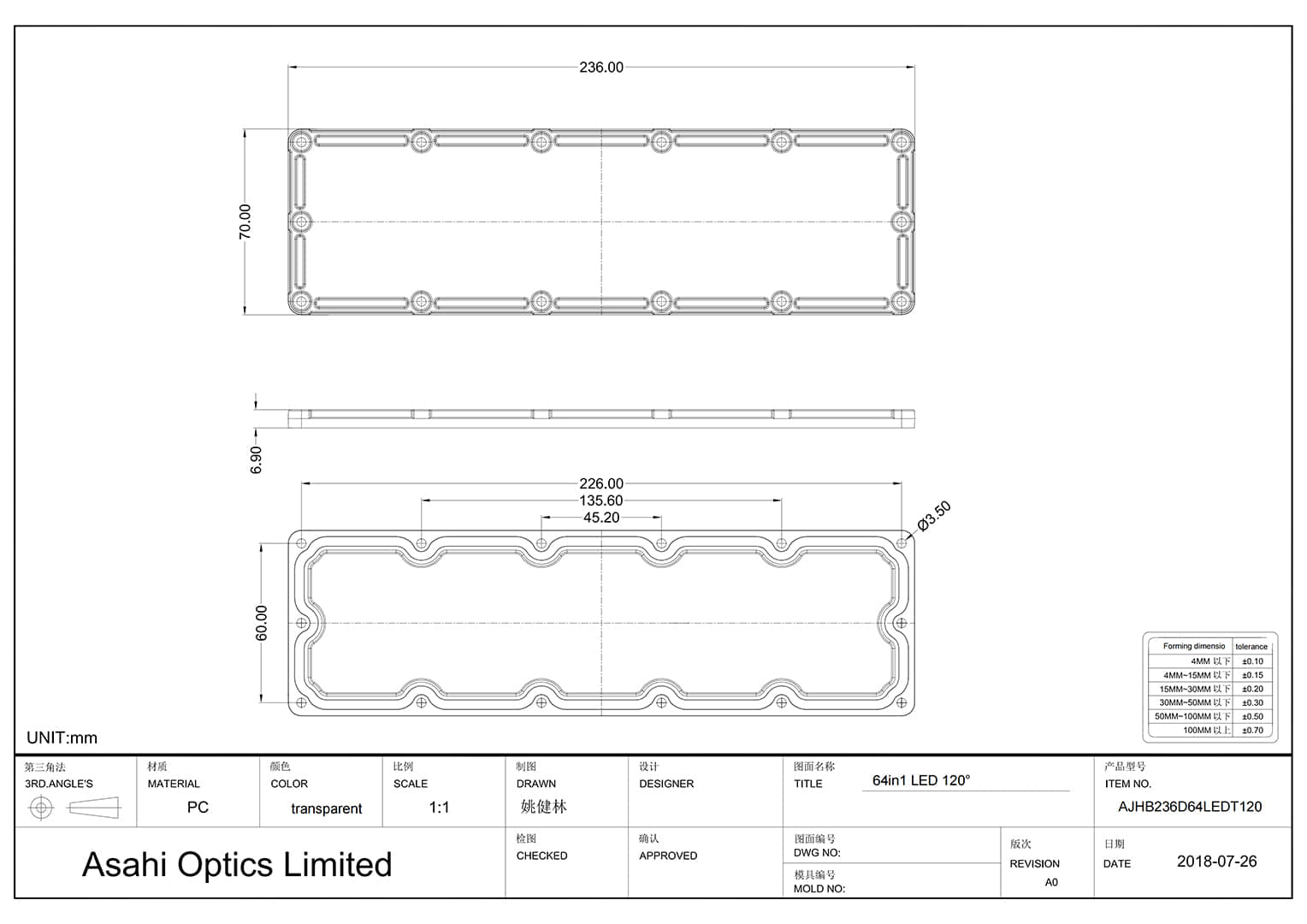

| Model: | AJHB236D64LEDT120 |
| Diameter: | 236mm |
| Height: | 71mm |
| Angle: | 120 ° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications: | 2835/3030 LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
