8LEDs lens 5050 T4M for street lighting

Model: AJST50D8LEDT4

Diameter: 50x50mm

Height:

Angle: T4M

Material: PC

Transmittance: >88%

LED Type: 3030/ 5050LED

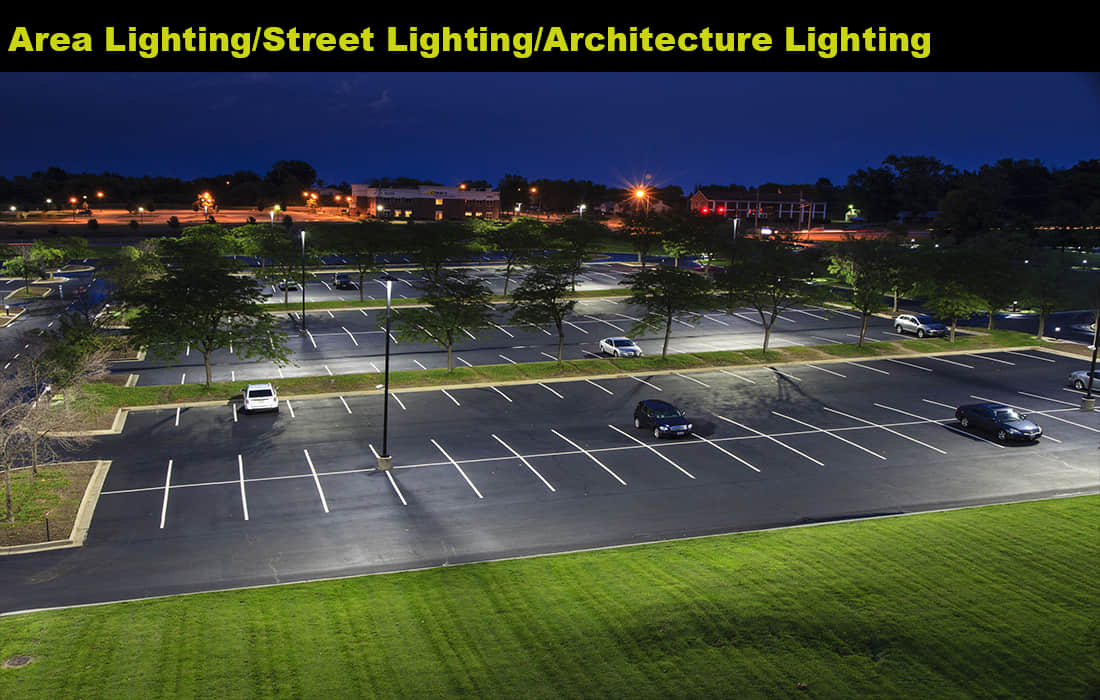

Lighting Applications: Street Lighting

1. The 50x50mm 8LED Lens T4 is engineered with advanced optical technology to deliver superior light distribution and efficiency to meet area lighting requirements.

2.The 50x50mm 8LED Lens ensures consistent brightness and minimal light loss, making it a reliable choice for high-intensity lighting needs.

1. The 50x50mm 8LED Lens T4 is engineered with advanced optical technology to deliver superior light distribution and efficiency to meet area lighting requirements.

2.The 50x50mm 8LED Lens ensures consistent brightness and minimal light loss, making it a reliable choice for high-intensity lighting needs.

Specifications

Model:	AJST50D8LEDT4
Diameter:	50x50mm
Height:
Angle:	T4M
Material：	PC
Transmittance：	＞88%
LED Type	3030/ 5050LED
Lighting applications	Street Lighting

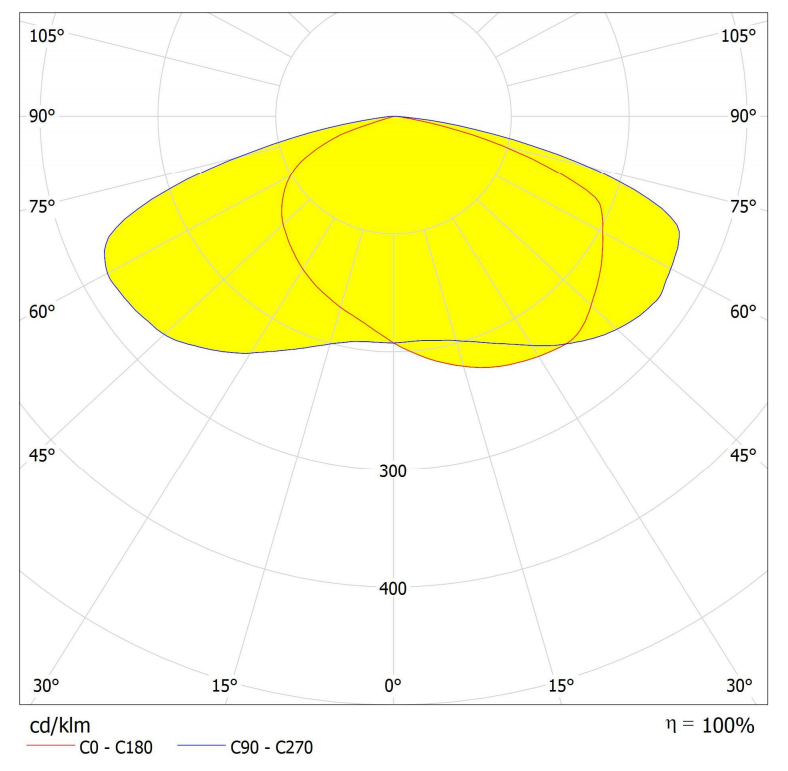

Light Distribution Curve 5050LED

AJST50D8LEDT4 8LEDs lens

Street Lighting Lens 2 1

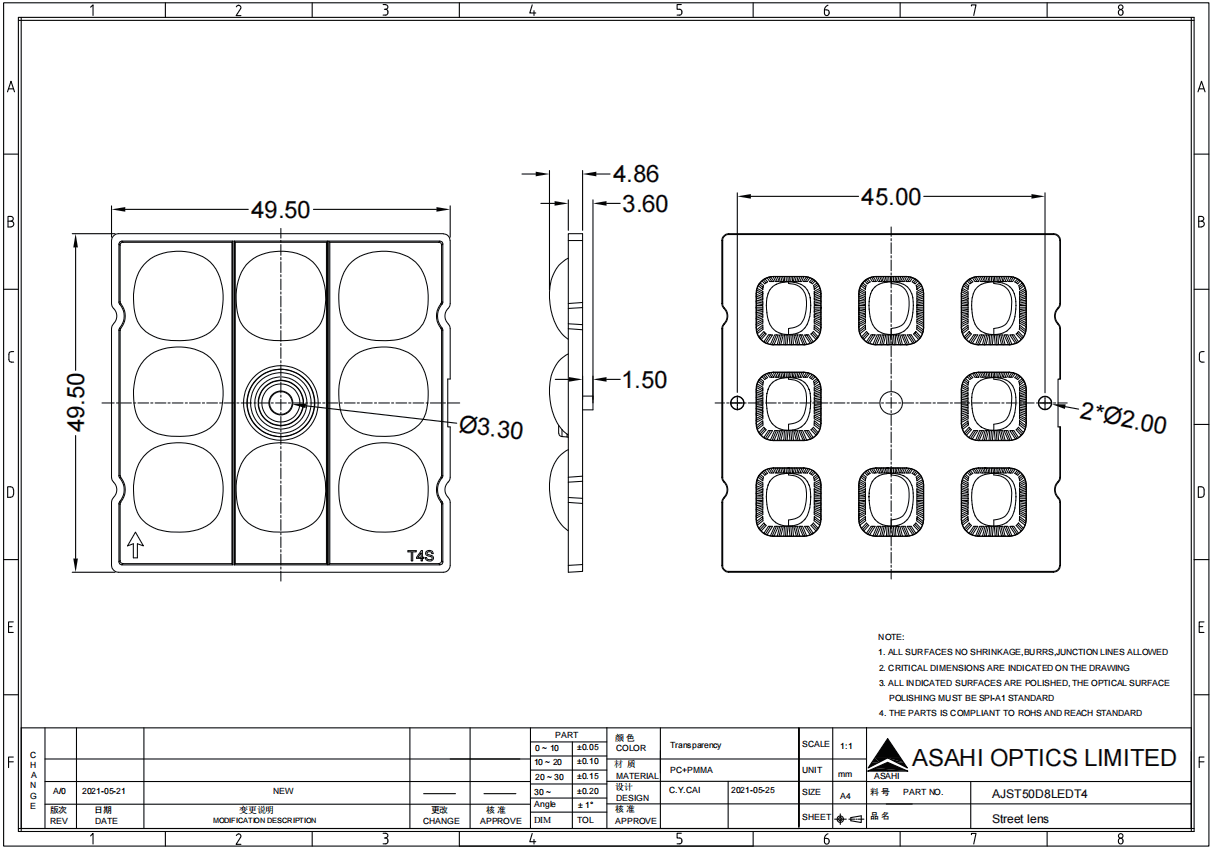

8 LEDs lens T4 Drawing

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
