Model: ARST250D72LEDT2M
Diameter: 250x74mm
Height: 6.81mm
Angle: Type II Medium
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 2835/3030LED

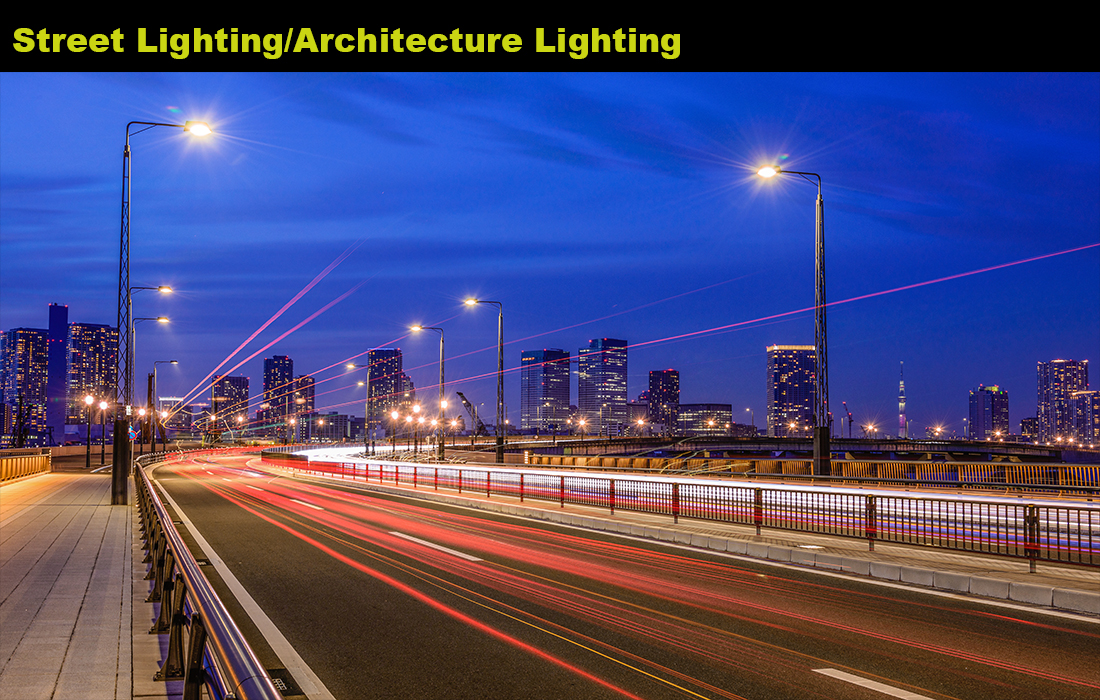

Lighting Applications: Street Lighting
1. 72-in-1 module street lens,one lens can achieve 50w,allowing flexible assembly for various power outputs.
2. Compatibility with both 2835 and 3030 LEDs, providing different budget options.
3. Constructed with high quality PC material，offering excellent durability and resistance to yellowing over time.

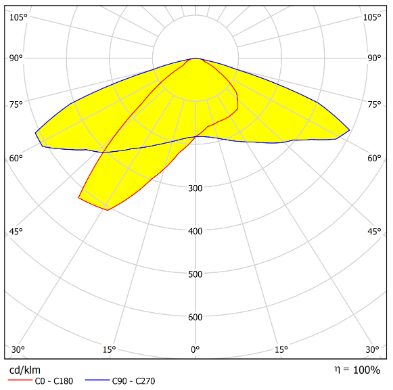

Distribution
Specifications
| Model: | ARST250D72LEDT2M |
| Diameter: | 250x74mm |
| Height: | 6.81mm |
| Angle: | Type II Medium |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030 LED |
| Lighting applications | Street Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARST250D72LEDT2M lens 3D drawing.STP

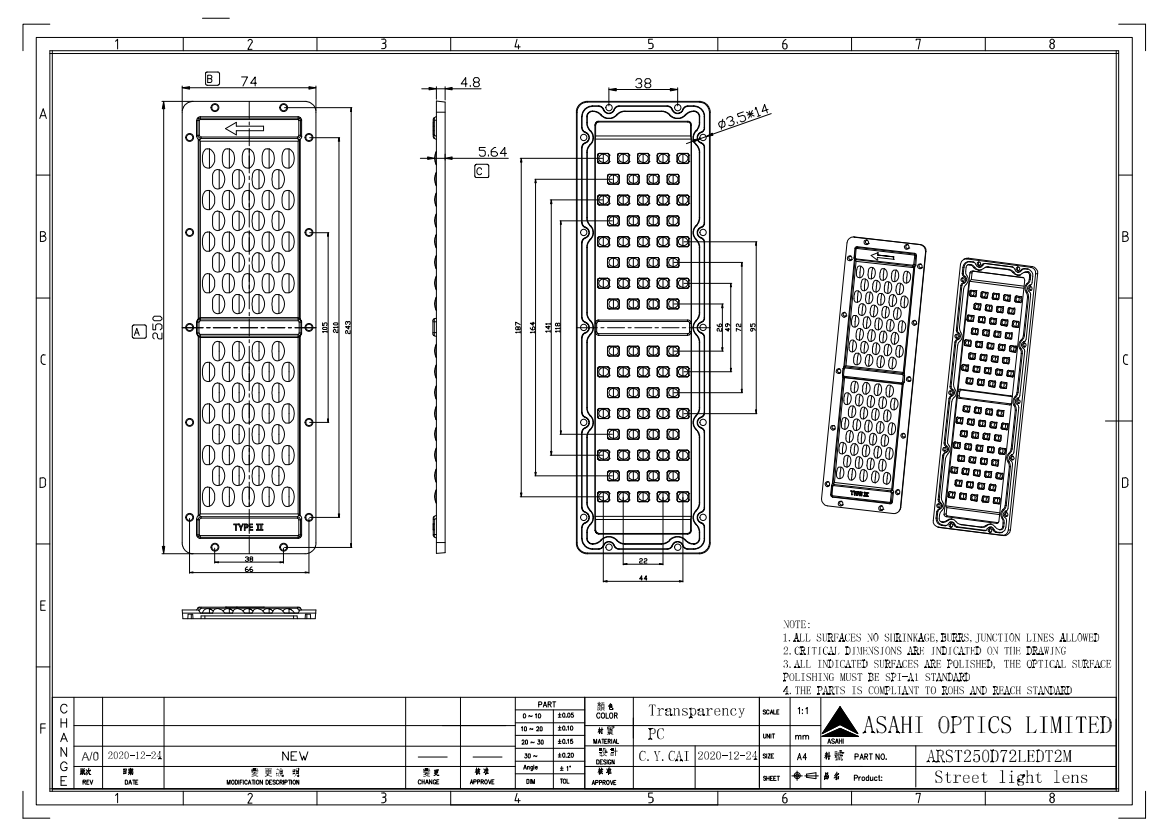

ASAHI OPTICS ARST250D72LEDT2M Drawing.dwg
ASAHI OPTICS ARST250D72LEDT2M Drawing.pdf
ASAHI OPTICS ARST250D72LEDT2M lens IES.ies
