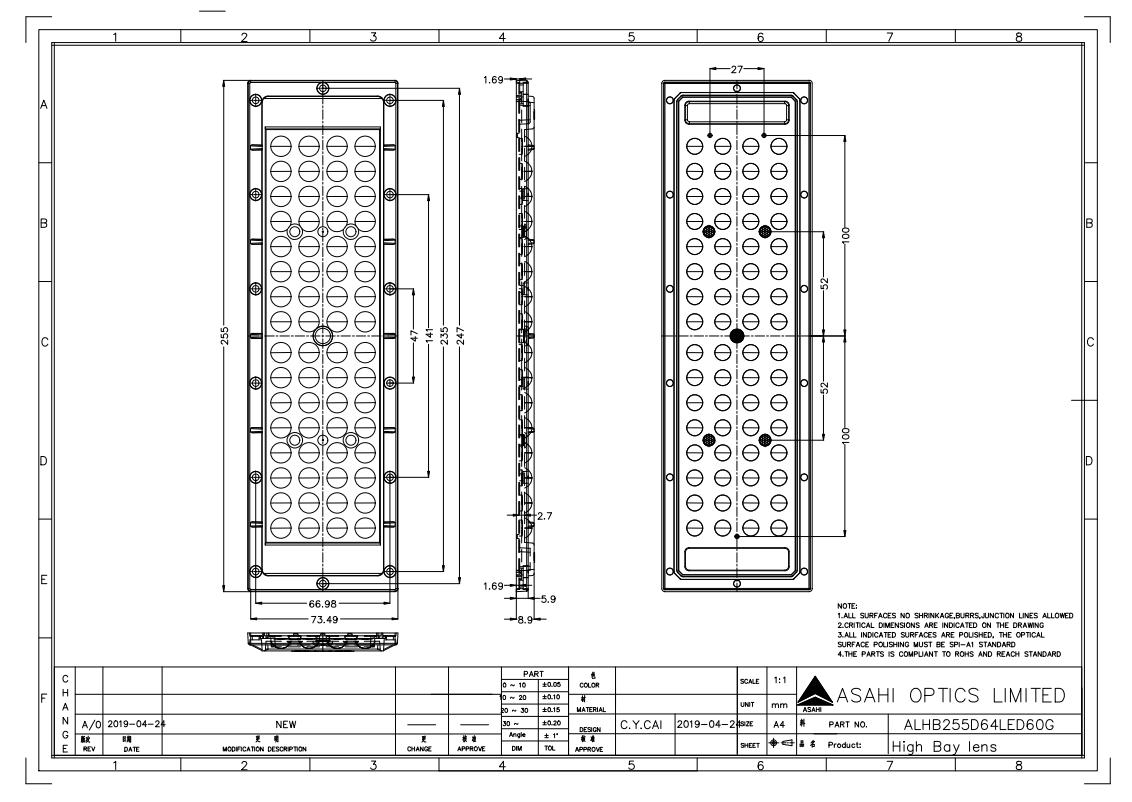

Model: ALHB255D64LED60G
Diameter: 255x75mm
Height: 7.95mm
Angle: 60°
Material: PC-1250Z
Transmittance: >88%
LED Type: 3030 LED

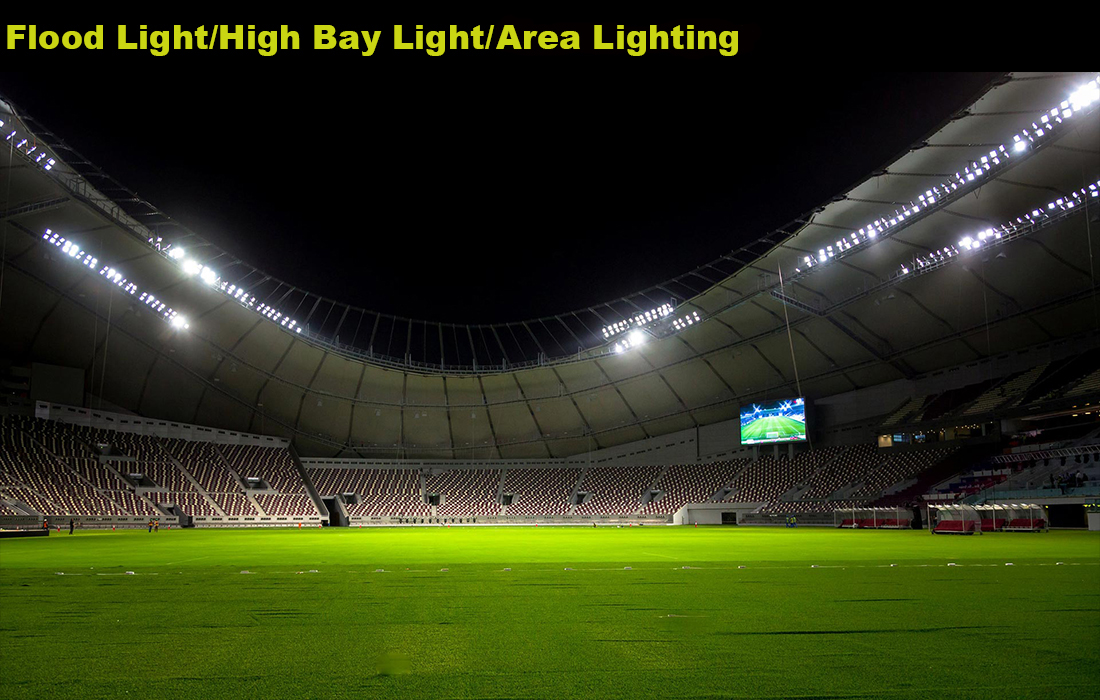

Lighting Applications: High Bay Lighting
1. The 60-degree lens angle enables the high bay light fixture to be positioned at a higher height without compromising on the quality of illumination.
2.The 3030 LEDs used in the high bay light fixture are rated for a high lumen output, which makes it suitable for large facilities such as gymnasiums, airports, and shopping malls, where a high ceiling is customary.

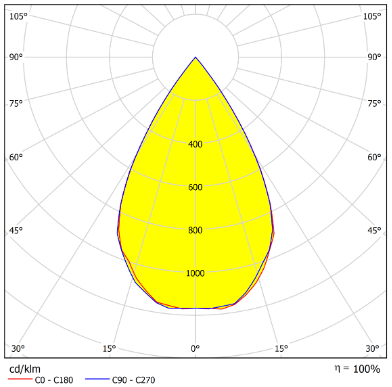

Distribution
Specifications
| Model: | ALHB255D64LED60G |
| Diameter: | 255x75mm |
| Height: | 7.95mm |
| Angle: | 60 ° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Applications | 3030 LED |
| Lighting applications | high bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
