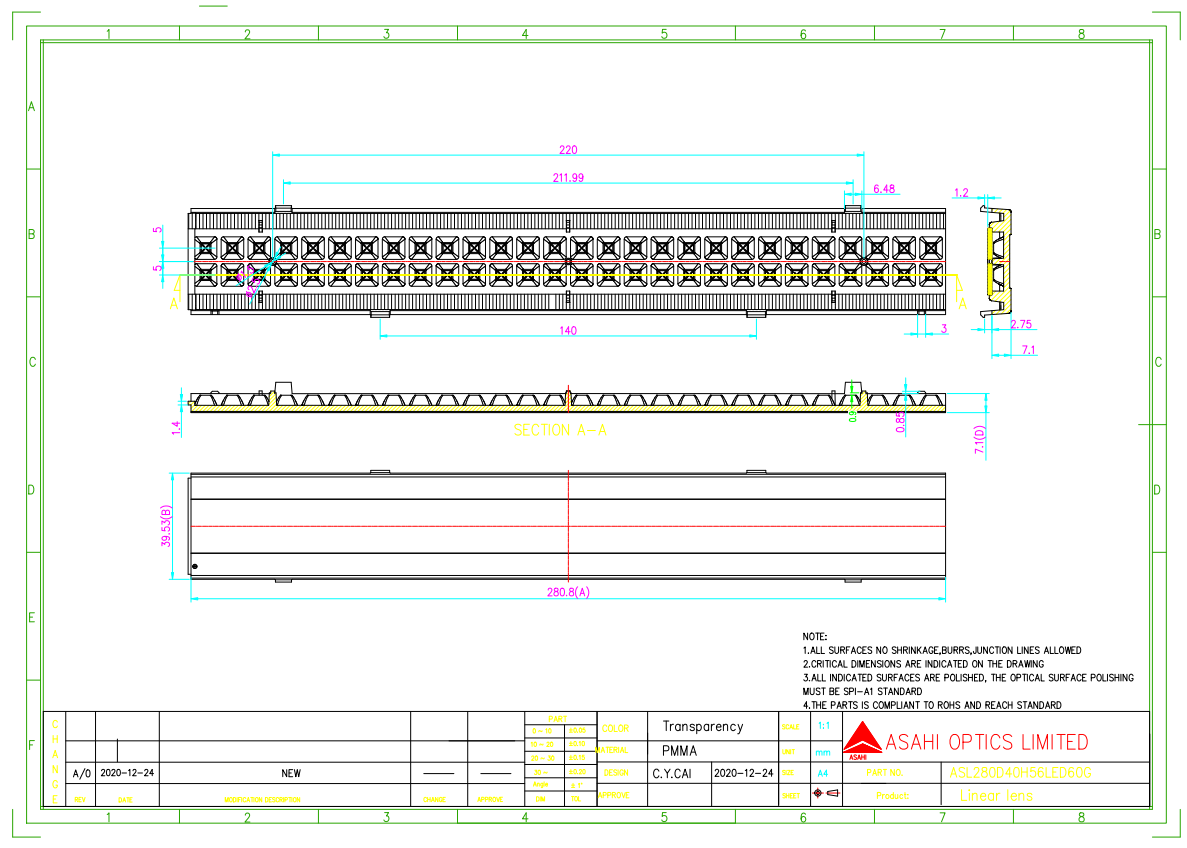

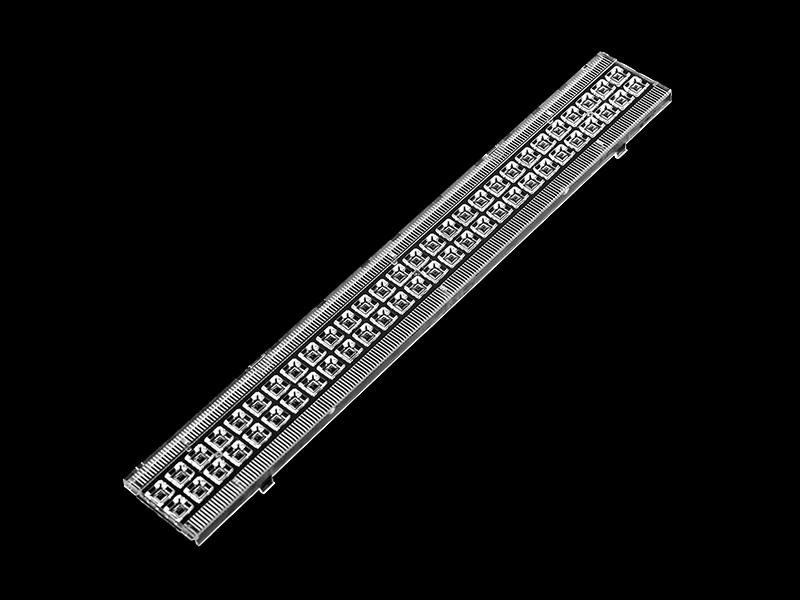

Linear Lens For Supermaket Lighting

Model: ASL280D40H56LED60G

Diameter: 280.0mm

Height: 7.1mm

Angle: 60°

Material: PMMA

Transmittance: >93%

LED Type: 2835/3030/3016LED

Lighting Applications: Linear Lighting

1. The lens is specifically designed to be compatible with a linear array or strip of 56 LEDs. It is engineered to match the spacing and arrangement of the LEDs to ensure optimal light distribution and performance.

2. The lens provides a fixed beam angle of 60 degrees. This means that the light emitted from the LEDs is spread out in a medium-angle pattern, covering a moderate area compared to narrower or wider beam angles.

3. The lens helps control the direction and spread of light emitted by the 56 LEDs, ensuring that the light is efficiently distributed in the desired area or surface within the 60-degree beam angle. It provides a medium spread of light suitable for applications where a focused yet moderately wide coverage is required.

4. The lens aids in distributing the light evenly across a specific area or surface within the 60-degree beam angle. It helps minimize hotspots or dark spots, providing a uniform and consistent illumination from the linear LED array.

Specifications

Model:	ASL280D40H56LED60G
Diameter:	280mm
Height:	40mm
Angle:	60°
Material：	PMMA
Transmittance：	93%
LED Applications	2835/3030/3016LED
Lighting applications	Linear Lighting, Office Lighting

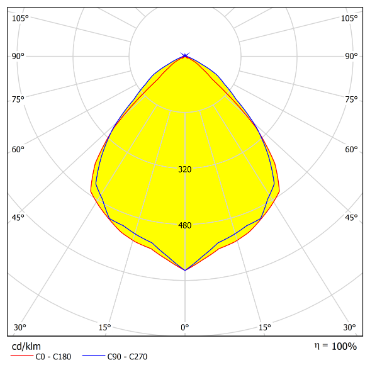

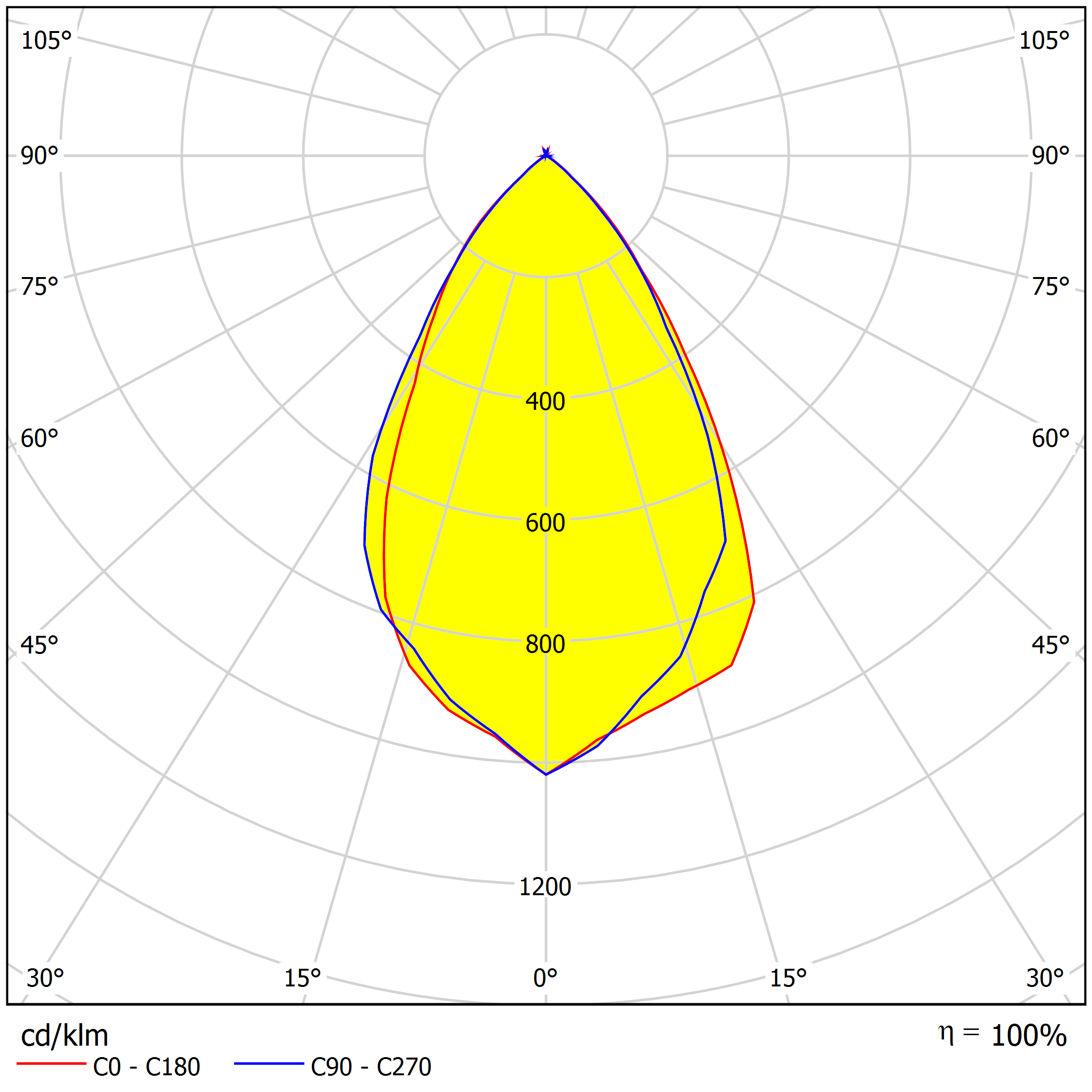

Light Distribution Curve

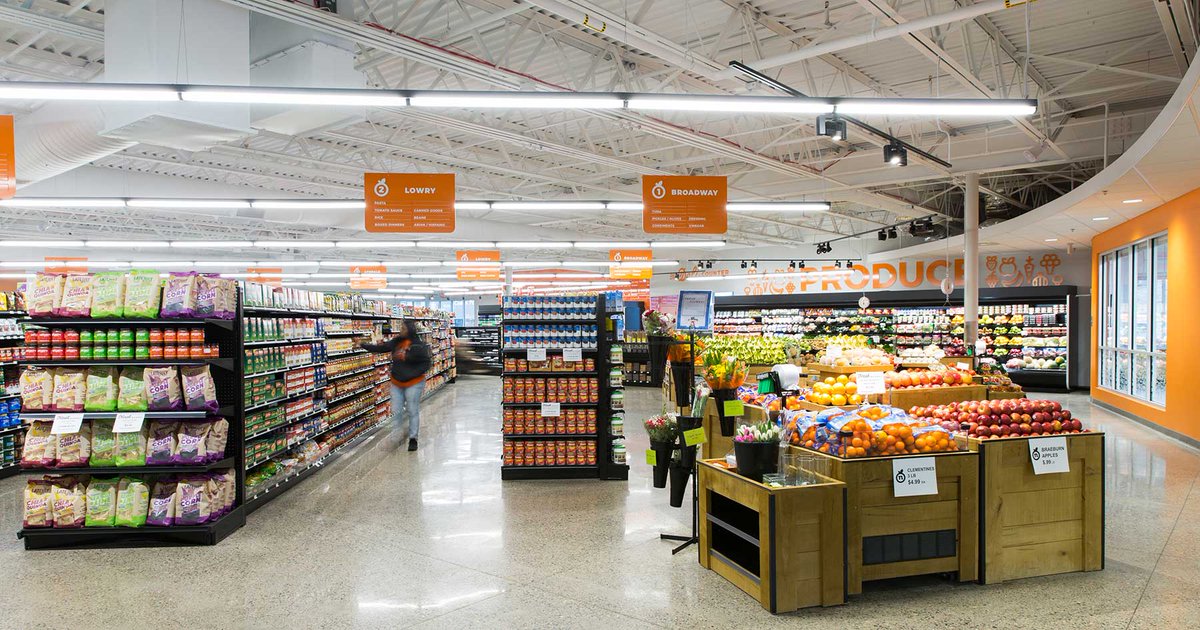

supermarket lighting

ASL280D40H56LED60G

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
