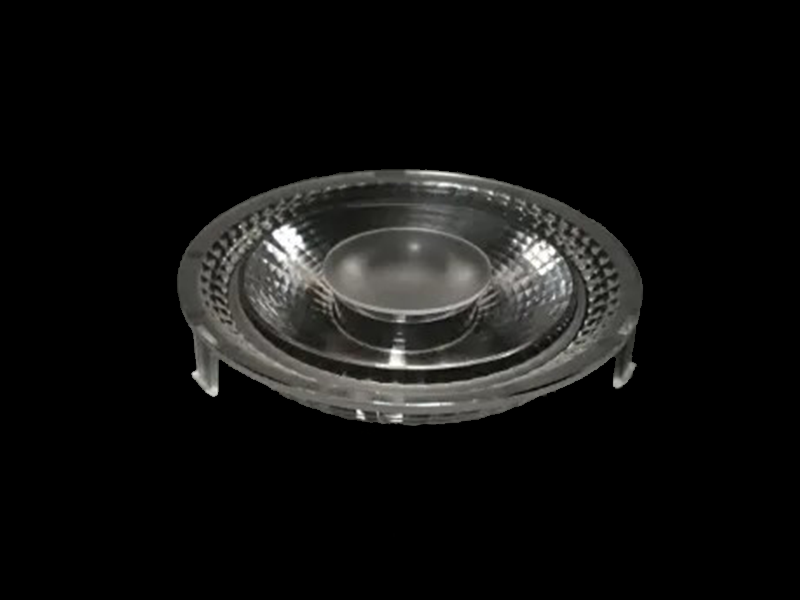

75mm Cob Lens 24 Degree 38 Degree With Buckle

75mm Cob Lens 24 Degree 38 Degree With Buckle

Model: AHCOB7522D

Diameter: 75.0mm

Height: 22.0mm

Angle: 24°; 38°

Material: PMMA

Transmittance: 90%

LED Type: COB LED

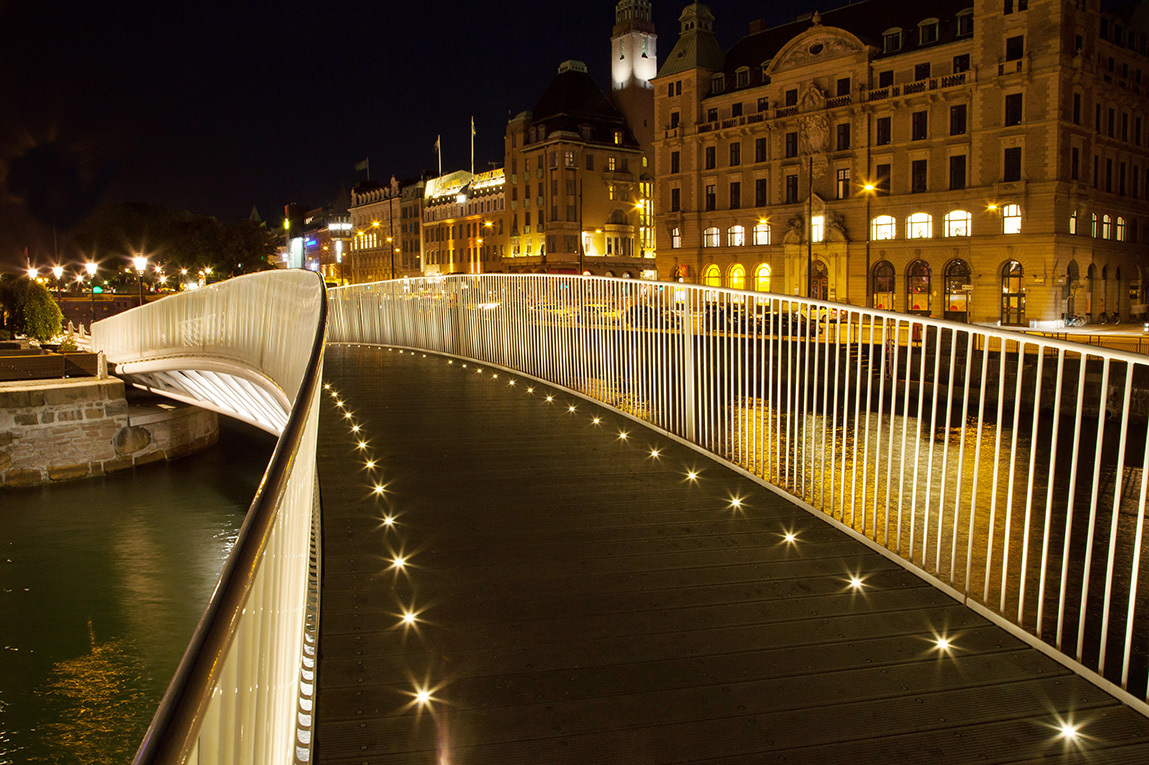

Lighting Applications: PAR lighting,Spot Light,Down Light

1, 75mm Cob Lens 24 Degree 38 Degree With Buckle

2, COB lenses are used to precisely control the light emitted by the COB LED. They help to focus and direct the light in a specific direction, allowing for efficient light distribution and minimizing light loss.

3, COB lenses play a critical role in stage and entertainment lighting applications. They help focus the light emitted by COB LEDs onto performers or specific areas on the stage. COB lenses can provide precise beam control, allowing lighting designers to create spotlights, washes, or other desired lighting effects for concerts, theatrical performances, and other live events.

Specifications

Model:	AHCOB7522D
Diameter:	75.0mm
Height:	22.0mm
Angle:	24°,38°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting, Spot Light, Down Light

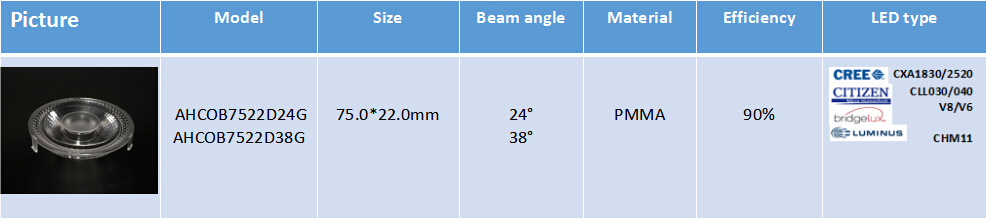

20160923212931213121

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
