Model: ALHB50D24LEDT30
Diameter: 50x50mm
Height: 5.05mm
Angle: 30°
Material: PC
Transmittance: >93%
LED Type: 3030LED
Lighting Applications:
1. 50mm diameter 24 in1 layout compatible with 3030LED for flood lighting.
2. The 24in1 lens widely use in various application scenarios, such as indoor lighting, building exterior lighting, landscape lighting, stage lighting, etc.
3. Constructed from Polycarbonate materials,offering durability and resistance to weather conditions, UV radiation, and impact.

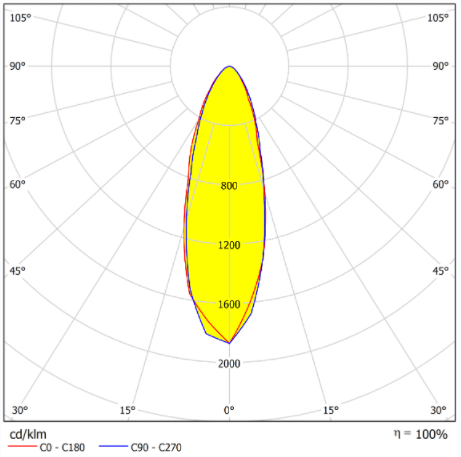

Distribution
Specifications
| Model: | ALHB50D24LEDT30 |
| Diameter: | 50x50mm |
| Height: | 5.05mm |
| Angle: | 30° |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | High bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D24LEDT30 lens 3D Drawing.stp

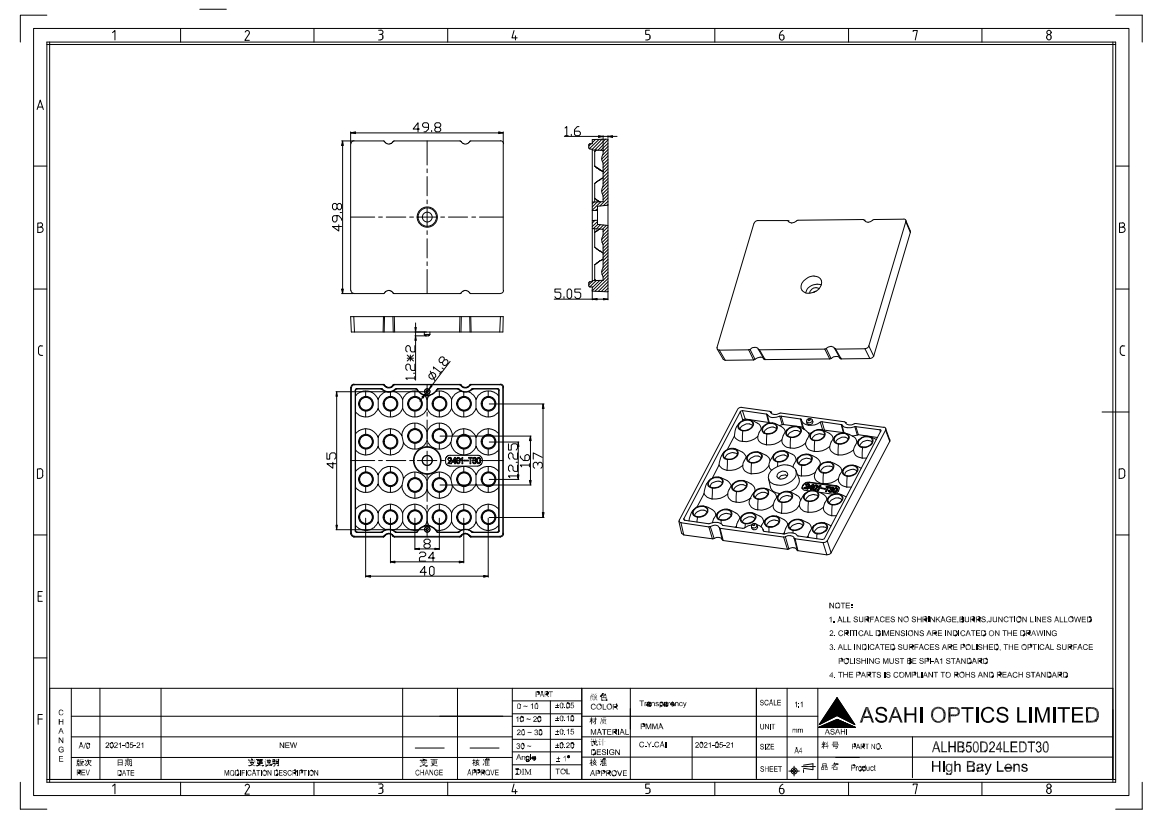

ASAHI OPTICS ALHB50D24LEDT30 Drawing.dwg
ASAHI OPTICS ALHB50D24LEDT30 Drawing.pdf
ASAHI OPTICS ALHB50D24LEDT30 lens IES.ies
