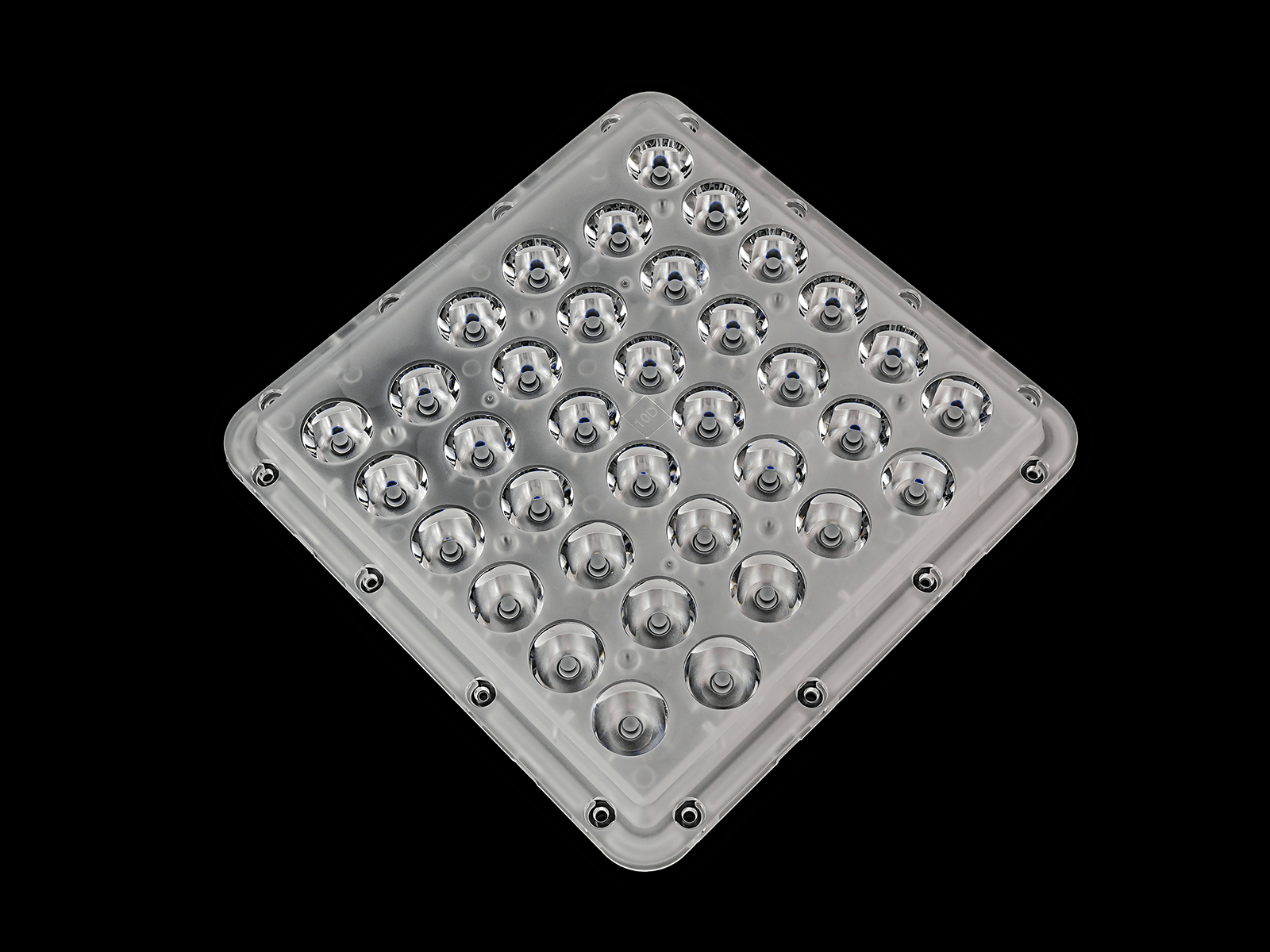

Model: AJHB180D36LED10G
Diameter: 180mm
Height: 16.8mm
Angle: 10°
Material: PC
Transmittance: >90%
LED Type: 3535LED
Lighting Applications: High Bay lighting, Stadium lighting
1. High Power lens module for Stadium lighting and Floodlight, with completely optical beam angles 10°, 15°, 30°, 45°, 60°，90°.
2. The 10-degree lens is able to effectively focus the light emitted by the 3535 LEDs so that the light is concentrated in a smaller area, thus significantly increasing the intensity and distance of the beam. This is ideal for scenes that require long distance or focused illumination.
Specifications
| Model: | AJHB180D36LED10G |
| Diameter: | 180mm |
| Height: | 16.8mm |
| Angle: | 10° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 3535LED |
| Lighting applications | High Bay lighting, Stadium lighting |
1. High Power lens module for Stadium lighting and Floodlight, with completely optical beam angles 10°, 15°, 30°, 45°, 60°，90°.
2. The 10-degree lens is able to effectively focus the light emitted by the 3535 LEDs so that the light is concentrated in a smaller area, thus significantly increasing the intensity and distance of the beam. This is ideal for scenes that require long distance or focused illumination.
