Model: ALSU12D7H10G/15G/20G/25G/30G/38G/45G/60G/70G/80G/90G

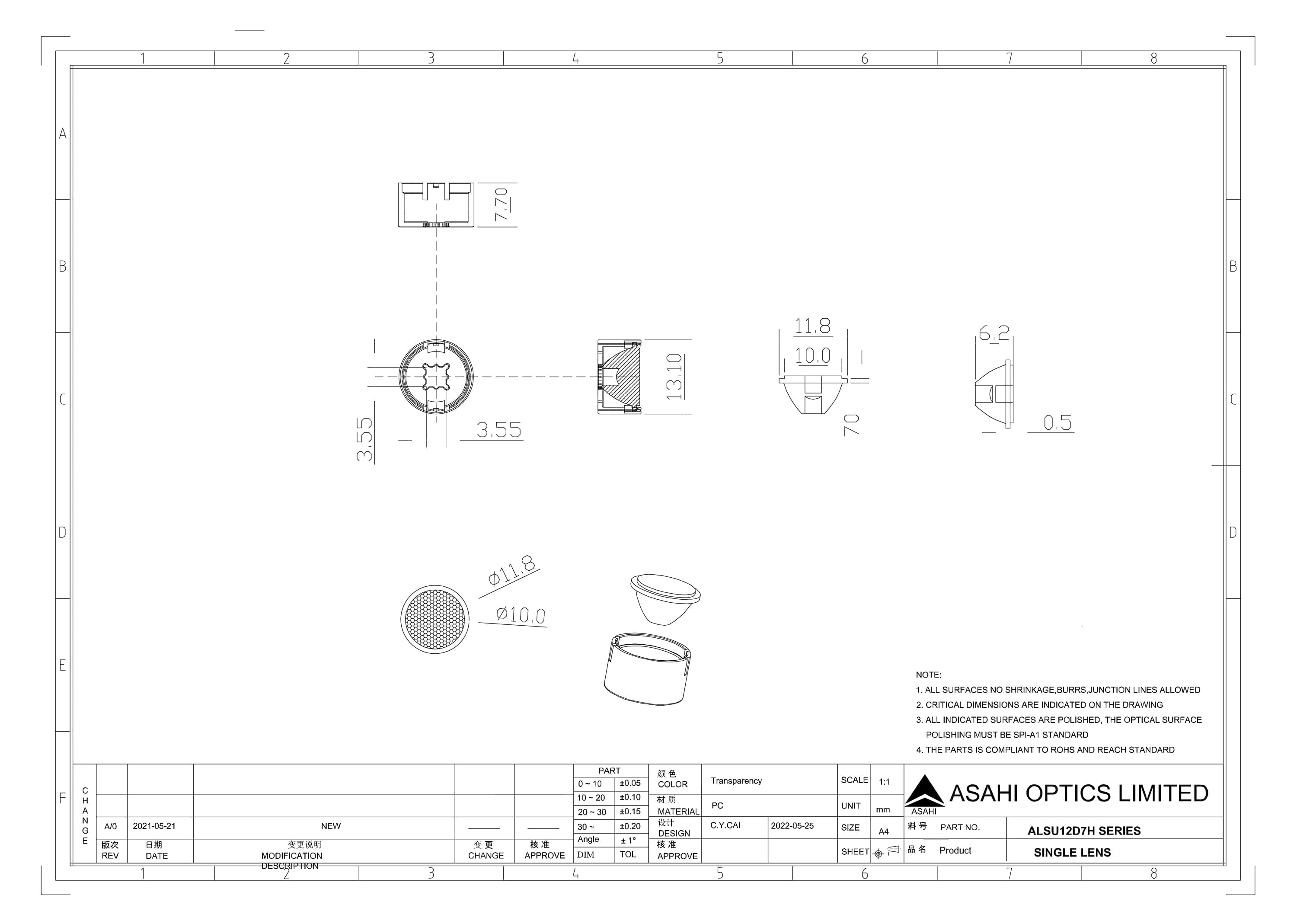

Size: Ø11.8mm
Height: 7.70mm
Angle: 10°,15°,20°,25°,30°,38°,45°,60°,70°,80°,90°
Material: PMMA
Transmittance: >93%
LED Type: Cree XP-G
Lighting Applications: Architecture light, Flash light,Stage light
1. The ALSU12D7H series offers 11 beam angles from 10° to 90°, flexibly matching various lighting needs such as spotlights, downlights, track lights, wall washers, projection lights, and floodlights.
2. Made of PMMA material with >93% transmittance and pure light output. Whether for indoor ceiling lights, cup lights, or outdoor rainbow lights, garden lights, underwater/in-ground lights, it delivers precise light control with a single lens for multiple applications.
Distribution
Specifications
| Model: | ALSU12D7H10G/15G/20G/25G/30G/38G/45G/60G/70G/80G/90G |
| Size: | Ø11.8mm |
| Height: | 7.70mm |
| Angle: | 10°,15°,20°,25°,30°,38°,45°,60°,70°,80°,90° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | Cree XP-G |
| Lighting applications | Architecture light, flash light,stage light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
-Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
