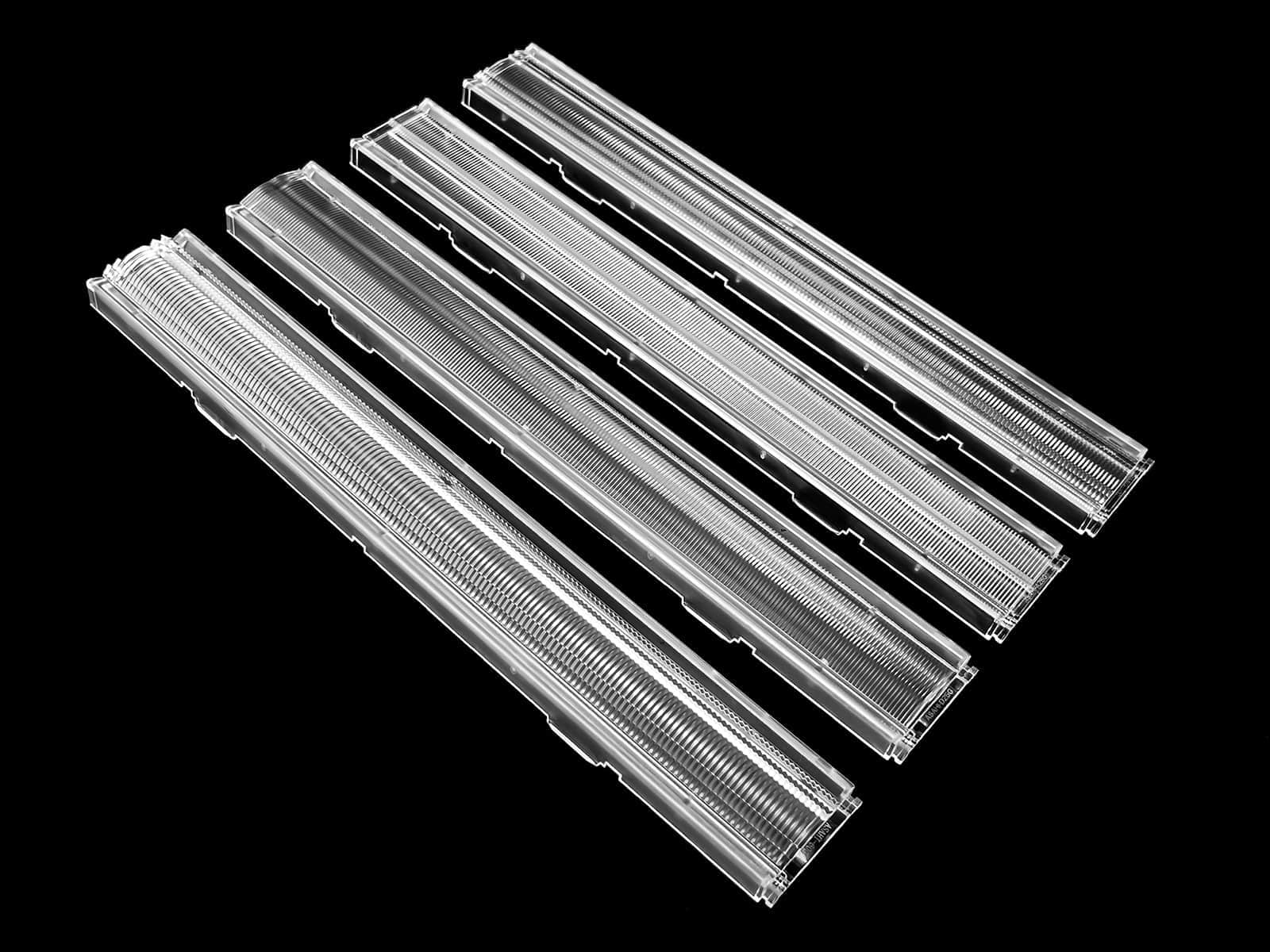

Model: ASL280D40HXXLED60G
Diameter: 280mm
Height: 40mm
Angle: 60°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 2835/3030LED

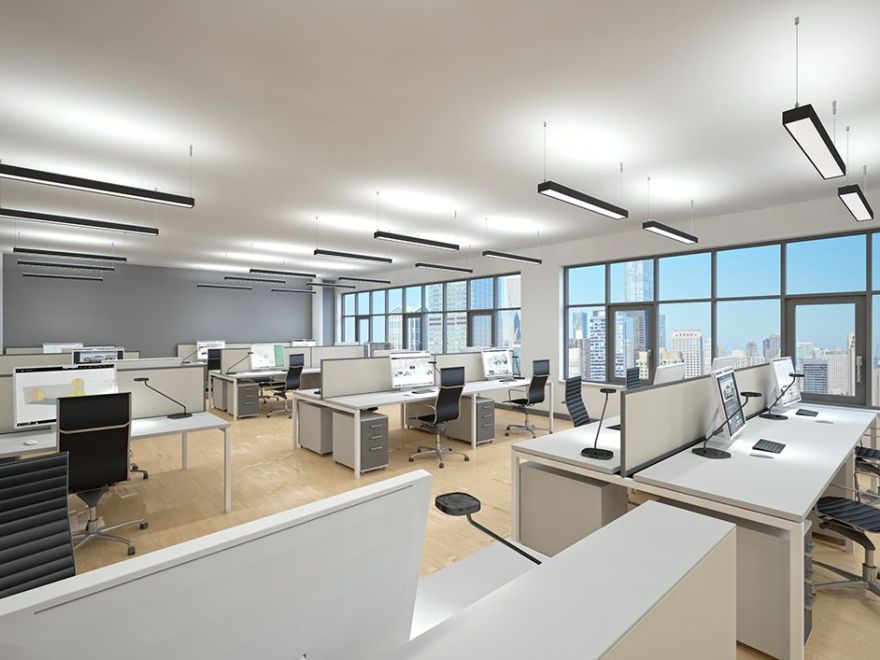

Lighting Applications: Linear Lighting, Area Lighting

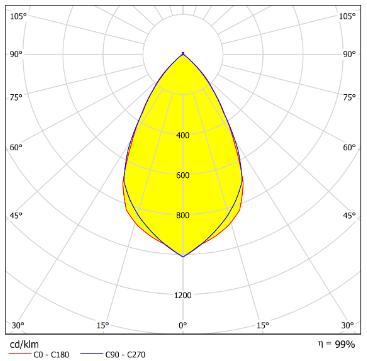

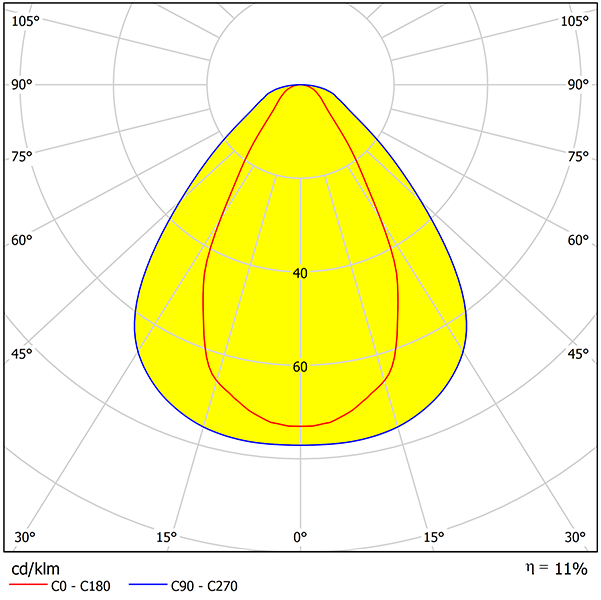

1. It's compatible with Zhaga standard PCB.Distribution
Specifications
| Model: | ASL280D40HXXLED60G |
| Diameter: | 280.0mm |
| Height: | 40.0mm |
| Angle: | 60° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
This linear lens adopts a snap-on type, which makes the assembly of the luminaire more simple and elegant.
ASAHI OPTICS ASL280D40HXXLED60G lens 3D Drawing.stp

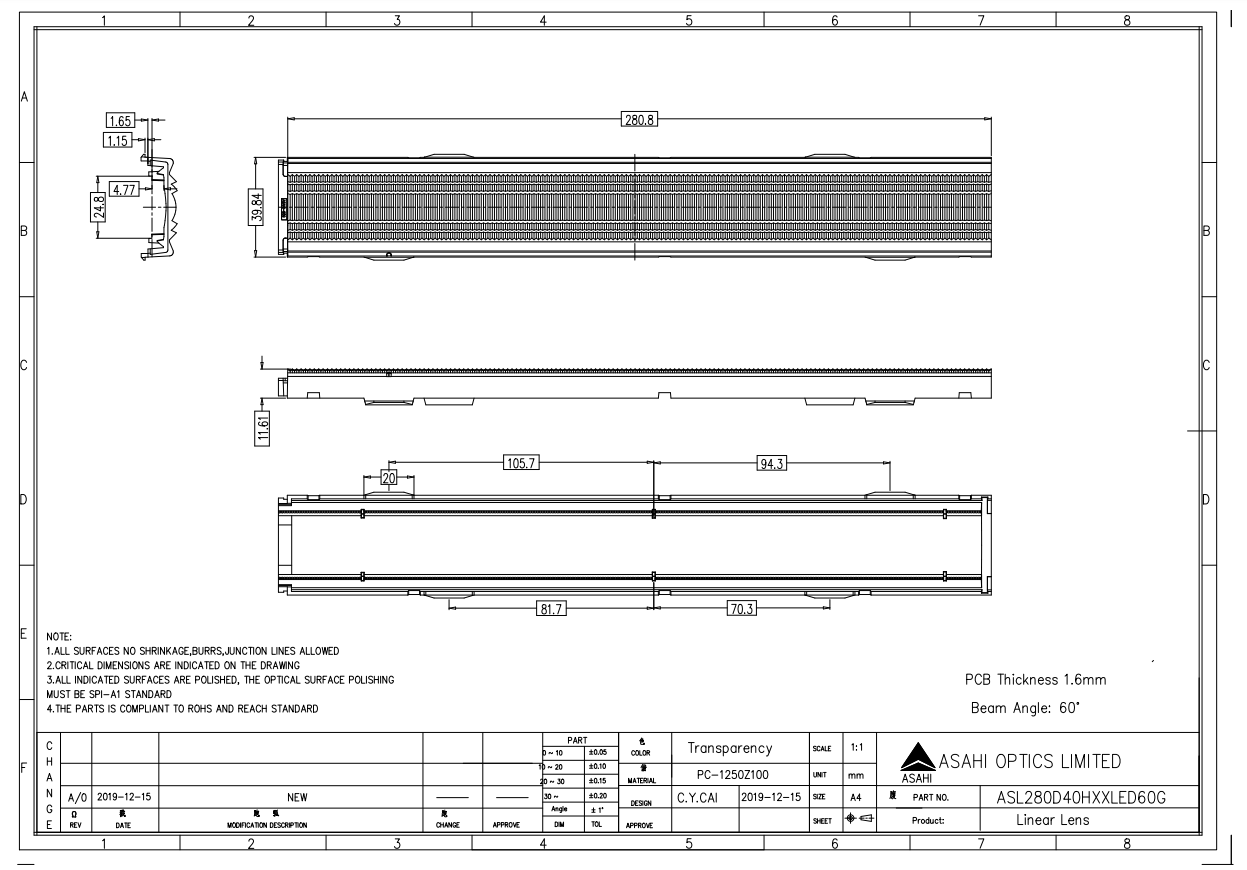

ASL280D40HXXLED60G.PDF Drawing
