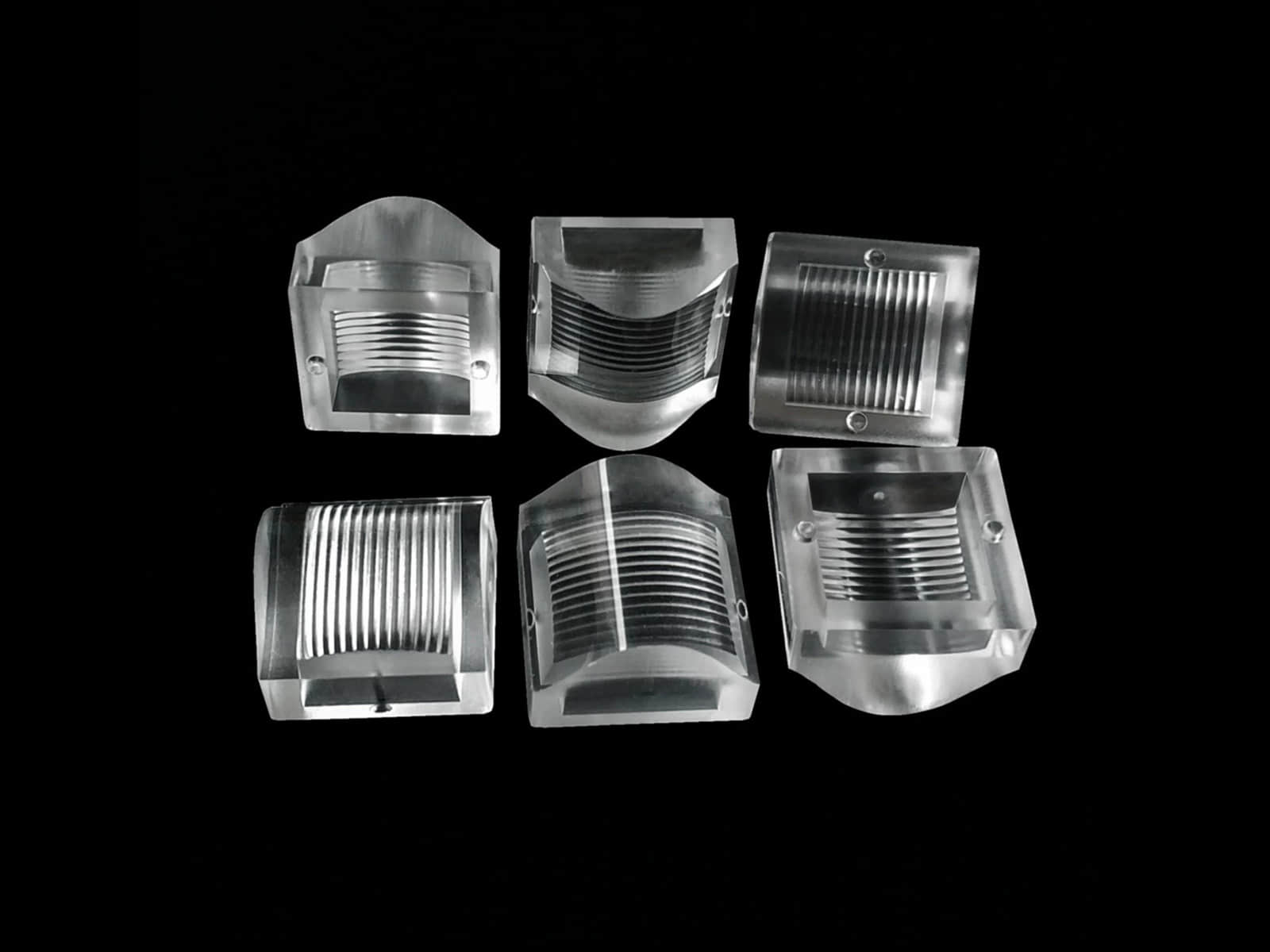

Model: AML20D14H1090G

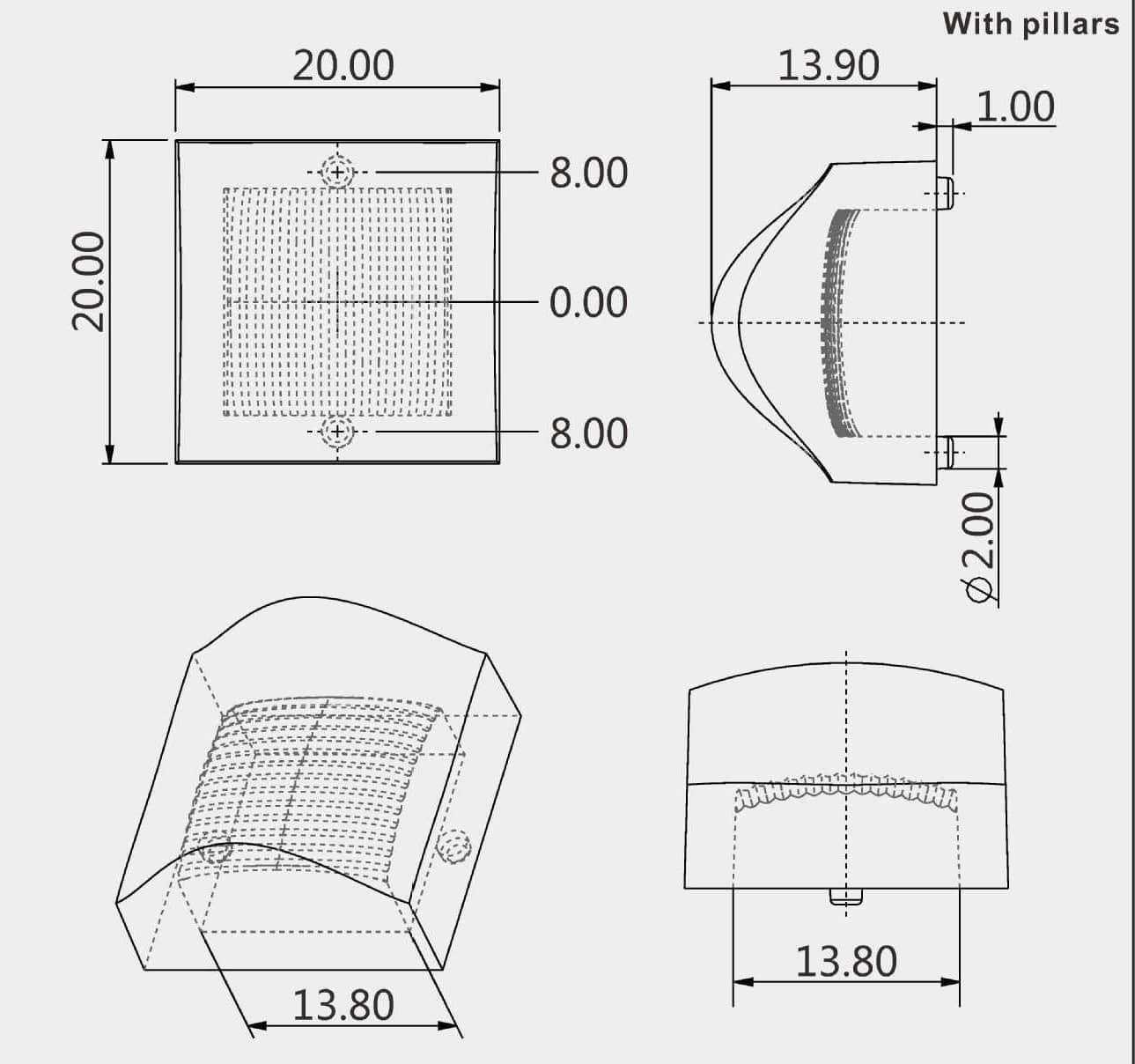

Size: 20x20(mm)
Height: 13.9mm
Angle: 10x90°
Material: PMMA
Transmittance: >92%
LED Type: 2835, 3030LED
Lighting Applications: Wall Washer Light, Landscaping Light, Architecture Lighting
1. 20×20mm square design, made of PMMA material with >92% light transmittance.

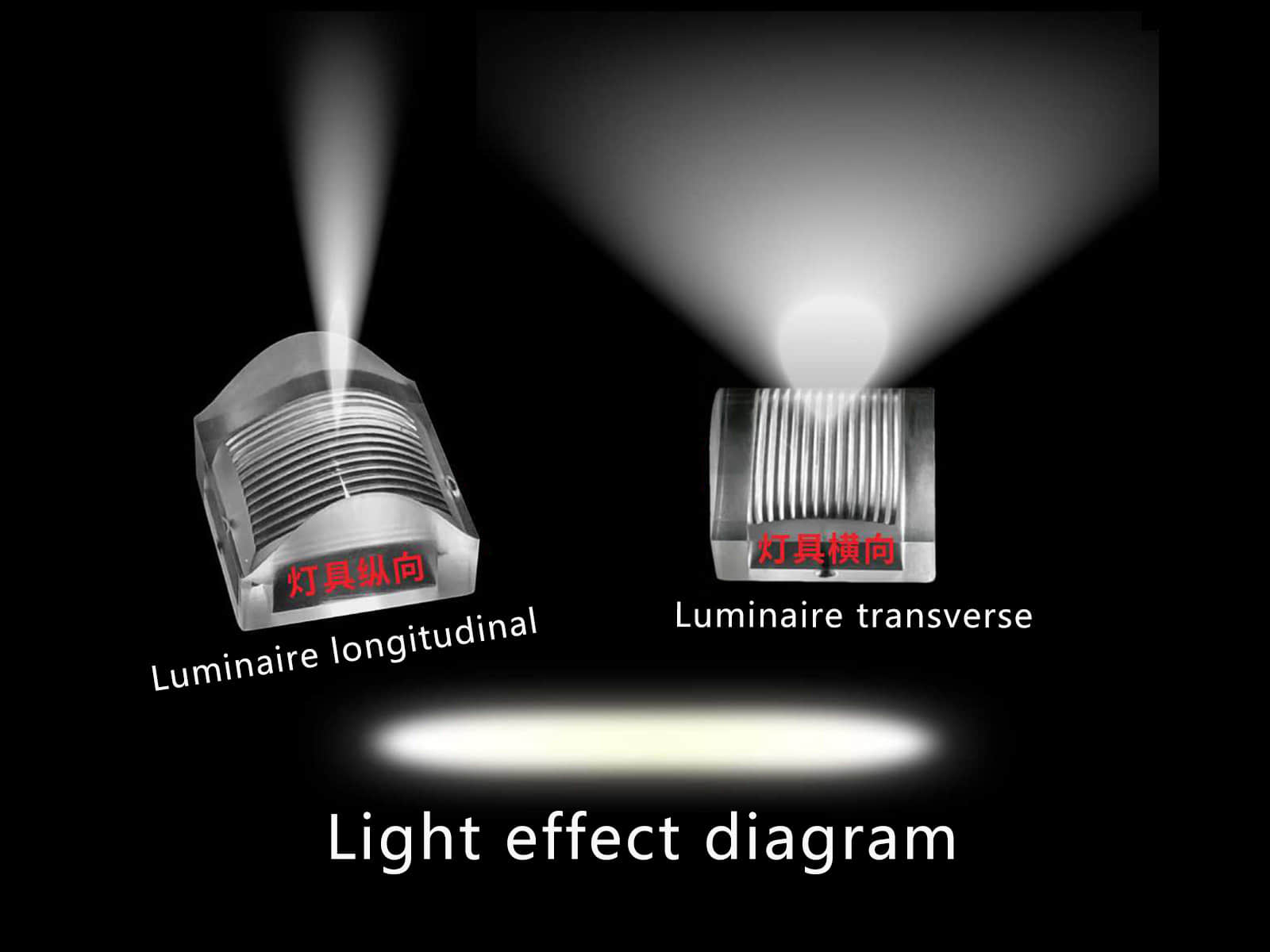

2. 10°×90° asymmetric striped light distribution, precisely achieving a stretched lighting effect with a uniform and smooth beam pattern.
3. Suitable for outdoor landscape lighting applications such as floodlights, in-ground lights, underwater lights, wall washers, and window sill lights.

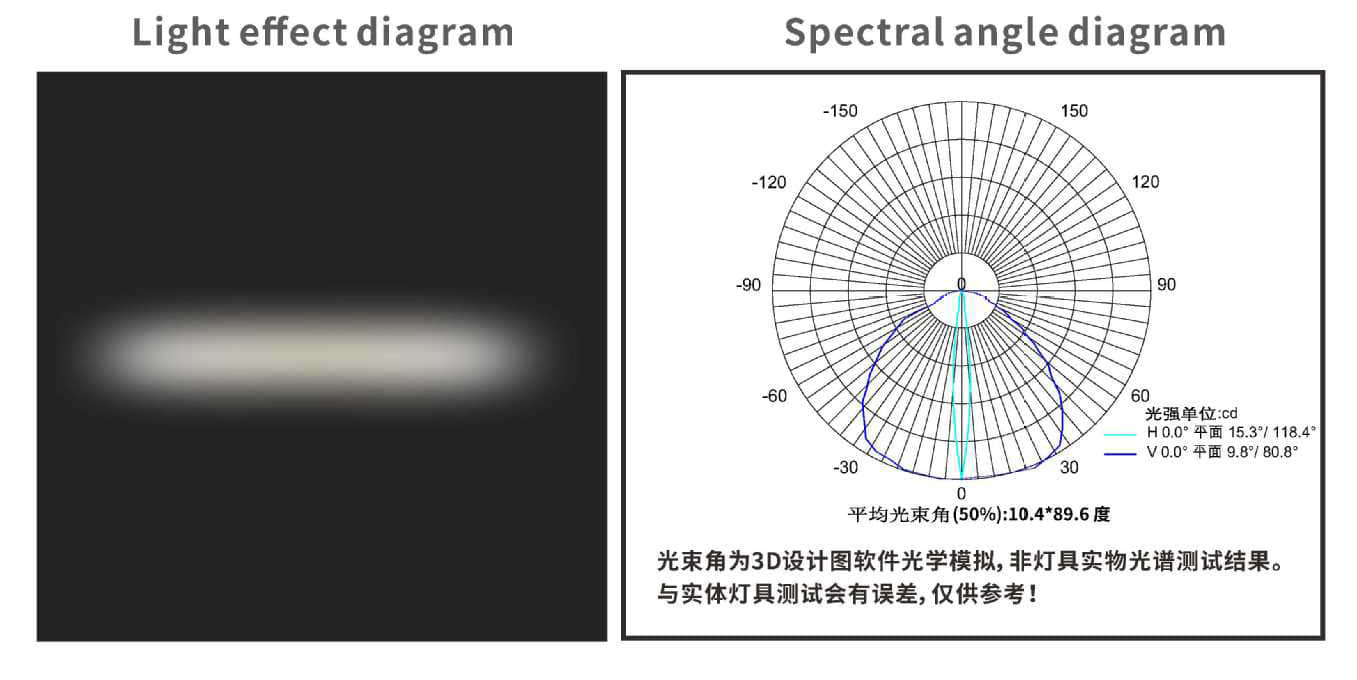

Distribution
Specifications
| Model: | AML20D14H1090G |
| Size: | 20x20(mm) |
| Height: | 13.9mm |
| Angle: | 10x90° |
| Material： | PMMA |
| Transmittance： | >92% |
| LED Type | 2835, 3030LED |
| Lighting applications | Wall Washer Light, Landscaping Light, Architecture Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
