Model: ASL80D40H2LED30G/3070G/50G/80G

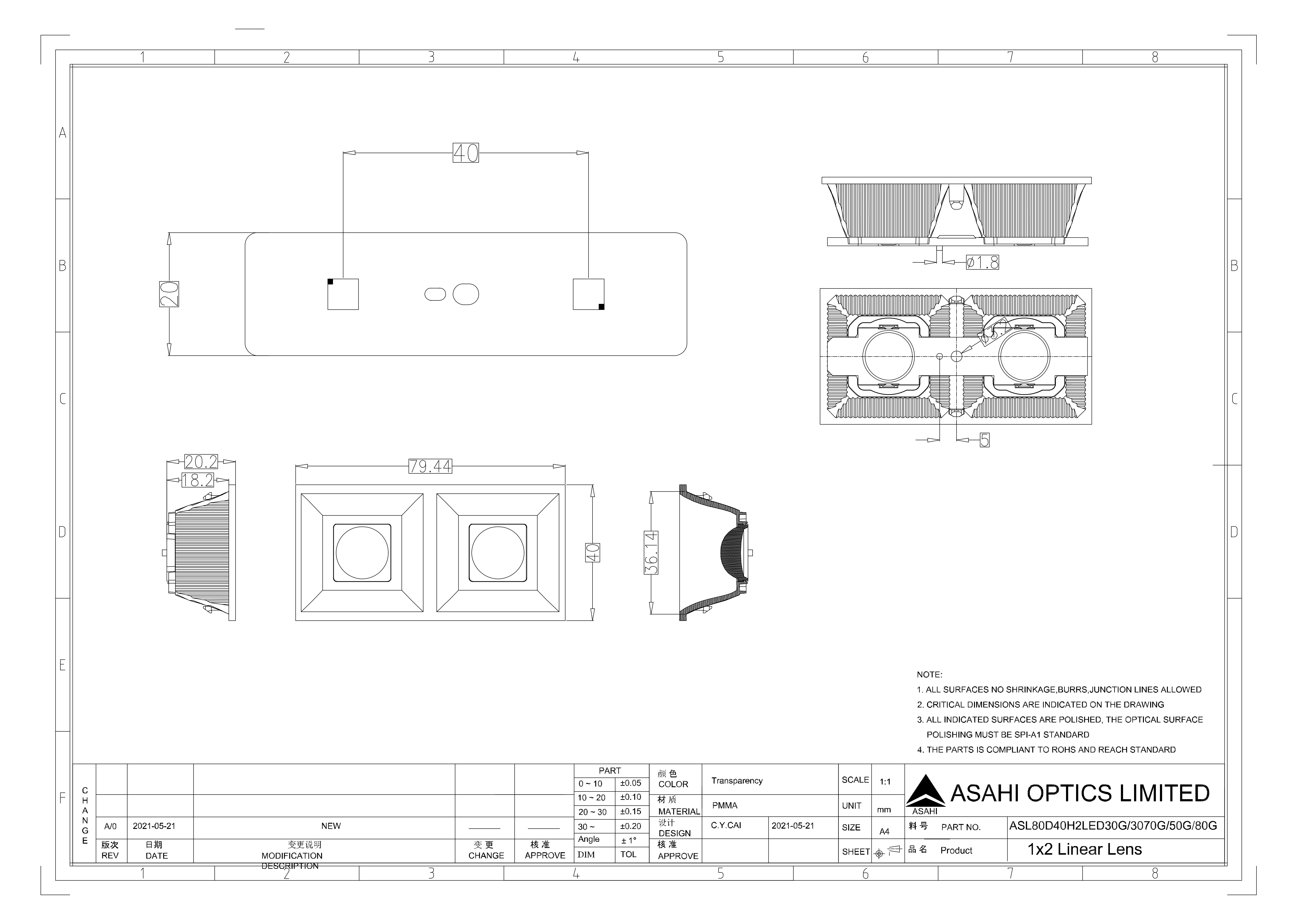

Diameter: 80mm
Height: 20.2mm

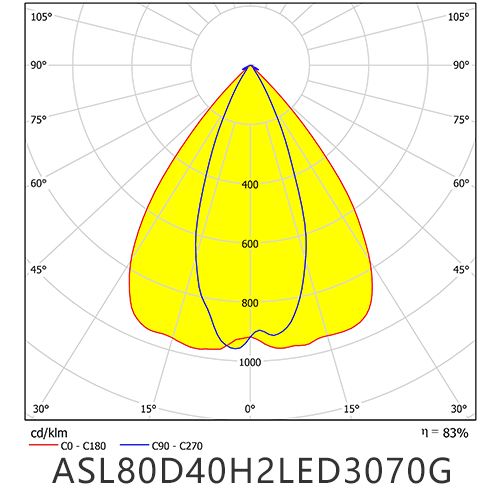

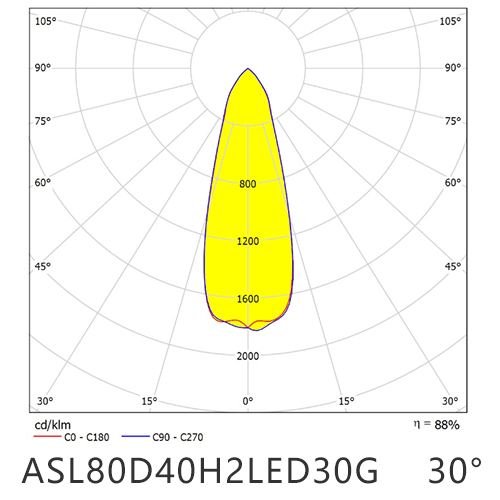

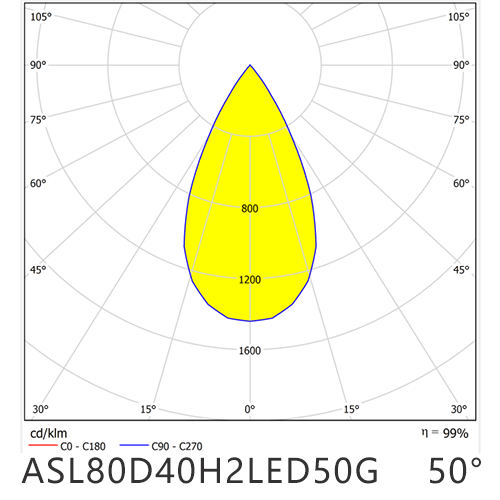

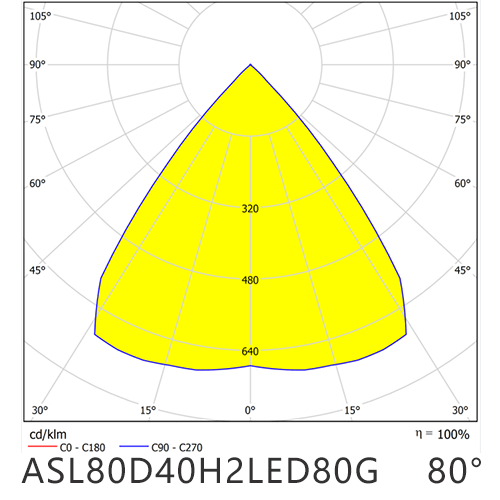

Angle: 30°,30x70°,50°,80°
Material: PMMA
Transmittance: 93%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: Linear Lighting

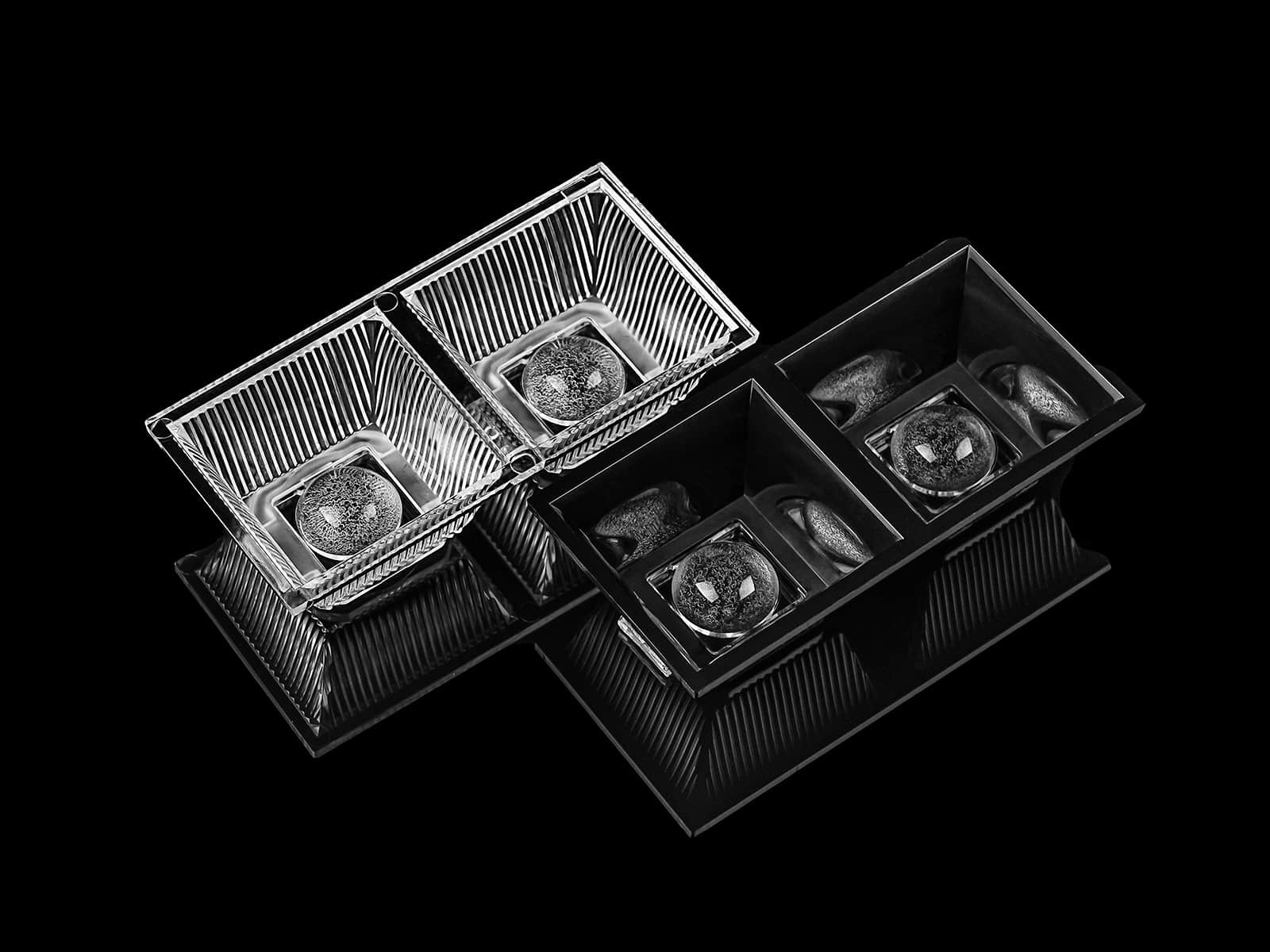

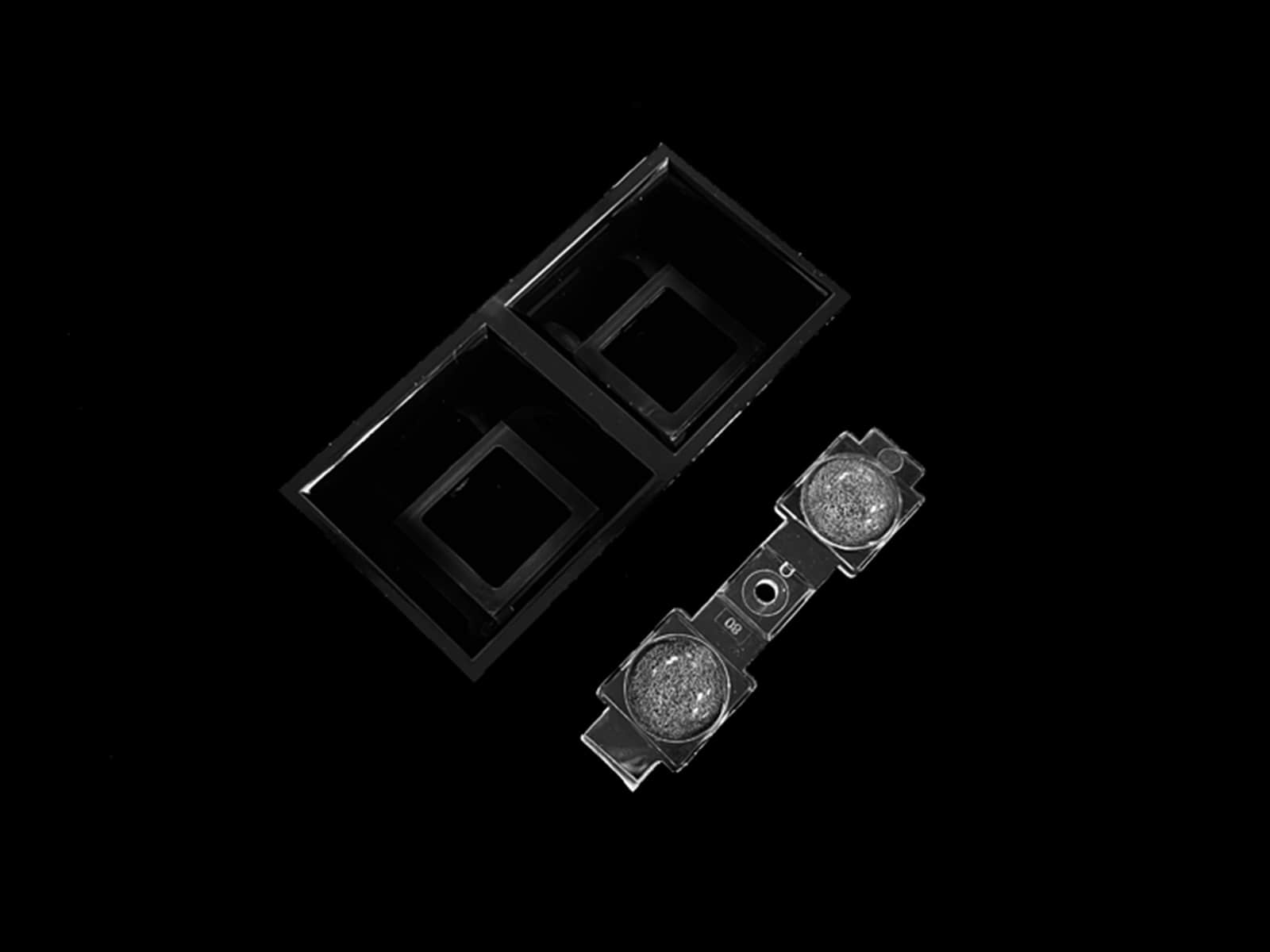

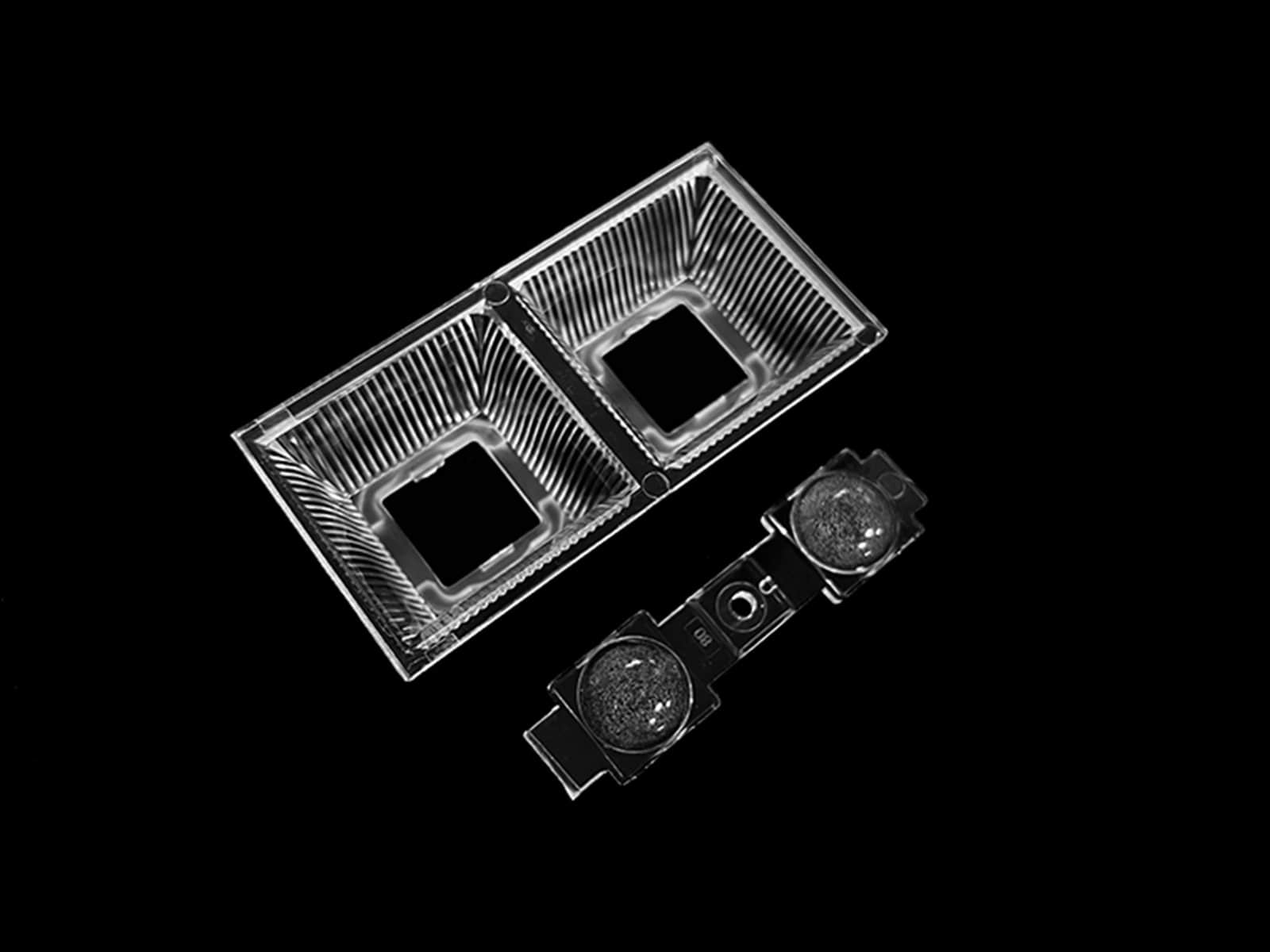

1. The 1x2 linear lens array is designed with an optical grill for better UGR and anti-glare control.
2. The 1x2 linear optics compatible with 2835, 3030 LEDs up to 5630, 5050 LEDs.
Specifications
| Model: | ASL80D40H2LED30G/3070G/50G/80G |
| Diameter: | 80mm |
| Height: | 20.2mm |
| Angle: | 30°,30x70°,50°,80° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | Linear Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
