Model: AZHB50D8LEDT30G
Diameter: 50x50mm
Height:
Angle: 30°
Material: PMMA
Transmittance: 93%
LED Type: 5050LED

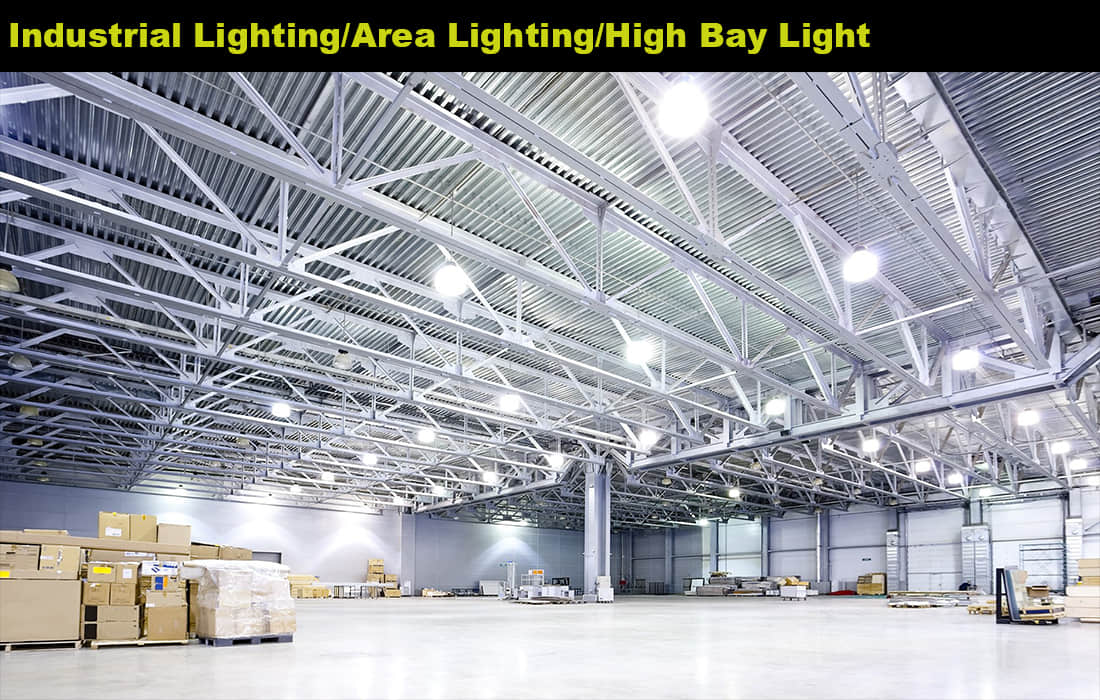

Lighting Applications: High bay lighting
1. Standard 2x4 lens layout designed by 5050LED with high lighting efficiency.
2. Standard 50mm 2x4 lens with beam angle 30° designed for flood lighting.

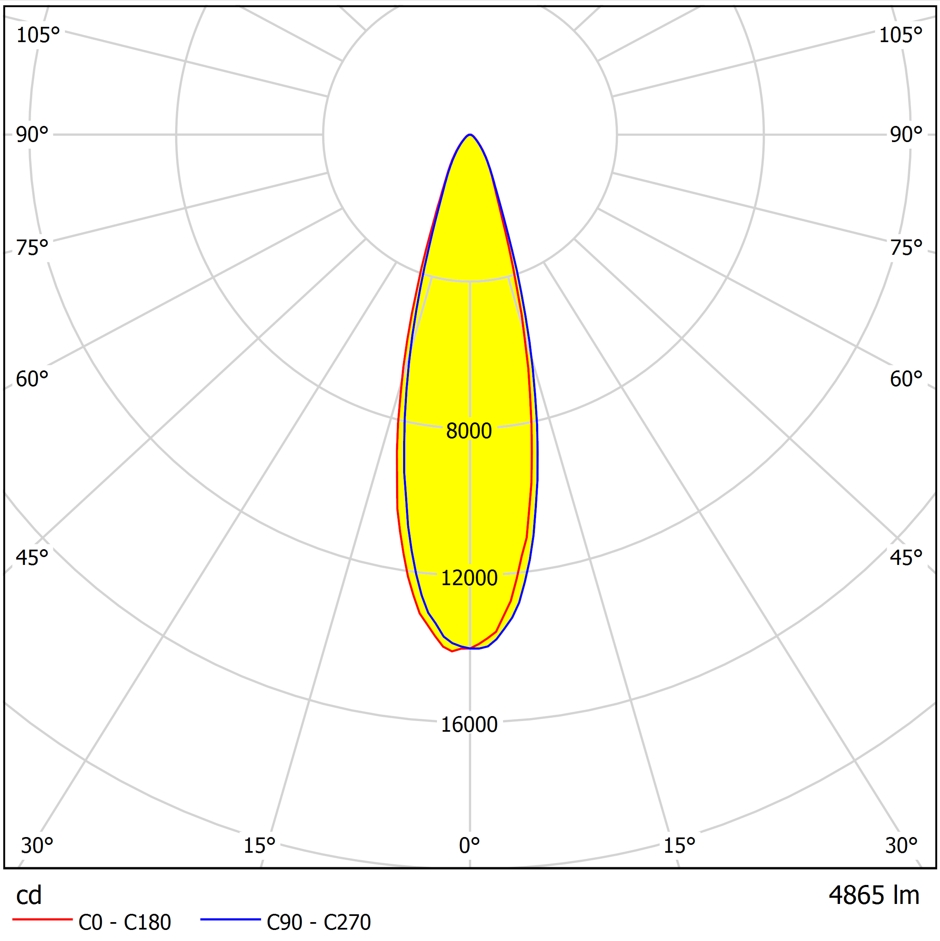

Distribution
Specifications
| Model: | AZHB50D8LEDT30G |
| Diameter: | 50x50mm |
| Height: | |
| Angle: | 30° |
| Material： | PMMA |
| Transmittance： | ＞93% |
| LED Type | 5050LED |
| Lighting applications | High bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. With a precise beam angle of 30°, this lens offers focused and directed illumination, making it ideal for various applications,such as high bay lighting,sport lighting,flood lighting etc.
2. Designed for straightforward installation, facilitating quick setup and minimizing installation complexities.

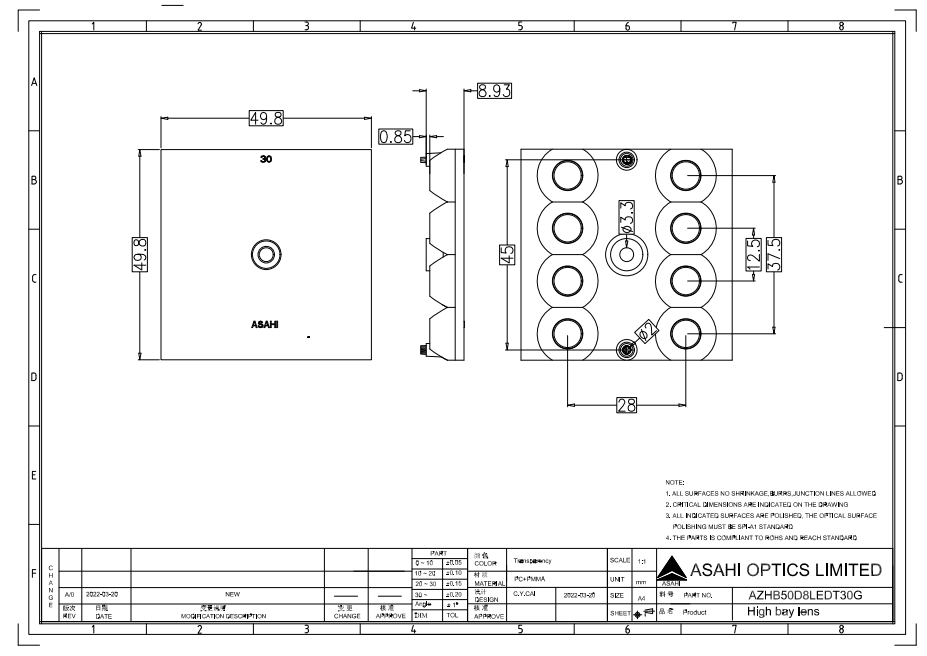

Asahi Optics AZHB50D8LEDT30G Drawing.dwg
Asahi Optics AZHB50D8LEDT30G Drawing.pdf
Asahi Optics AZHB50D8LEDT30G.ies
Asahi Optics AZHB50D8LEDT30G 3Drawing.stp
