2x2 80x60degree Optical Lens For Parking Lot Lighting

Model: ALST50D4LED5050T8060G

Diameter: 50x50mm

Height: 8.62mm

Angle: T4 80°*60°

Material: PC-1250Z

Transmittance: >90%

LED Type: 5050LED

Lighting Applications:

1. The design of the 2x2 Type IV 80x60° lens provides directional illumination, making it suitable for streetlight applications that require long-distance projection in wider areas.

2. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

3. Offers a long lifespan with minimal maintenance requirements, reducing the need for frequent replacements and associated costs.

1. The design of the 2x2 Type IV 80x60° lens provides directional illumination, making it suitable for streetlight applications that require long-distance projection in wider areas.

2. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

3. Offers a long lifespan with minimal maintenance requirements, reducing the need for frequent replacements and associated costs.

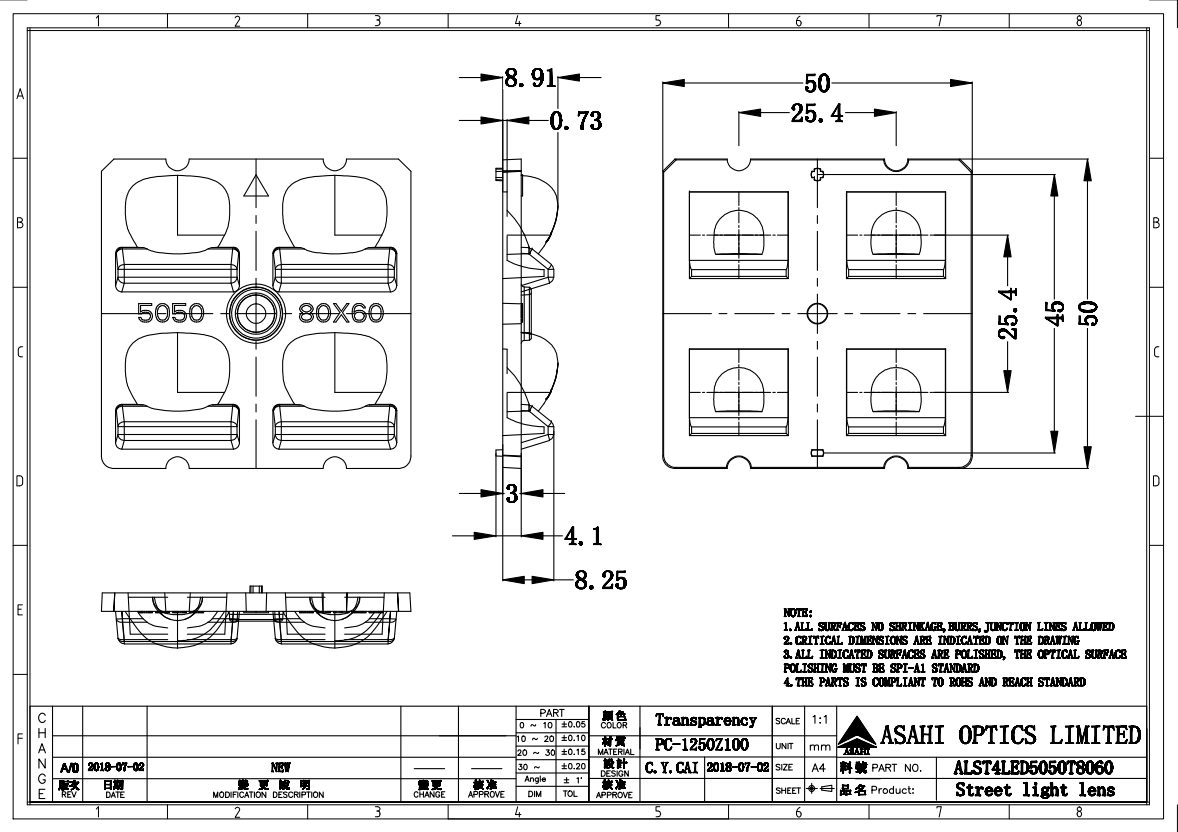

Specifications

Model:	ALST50D4LED5050T8060G
Diameter:	50x50mm
Height:	8.62mm
Angle:	80*60°
Material：	PC
Transmittance：	>90%
LED Type	5050LED
Lighting applications	street lighting

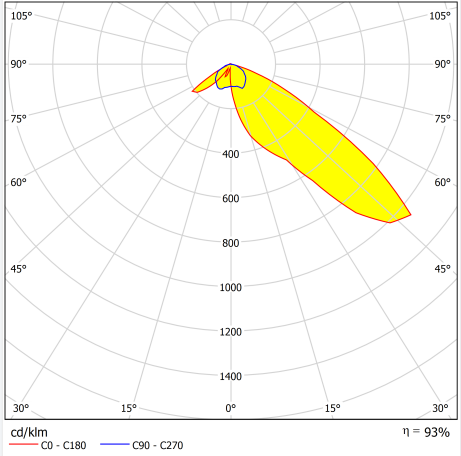

Light Distribution Curve

5050T8060G

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
