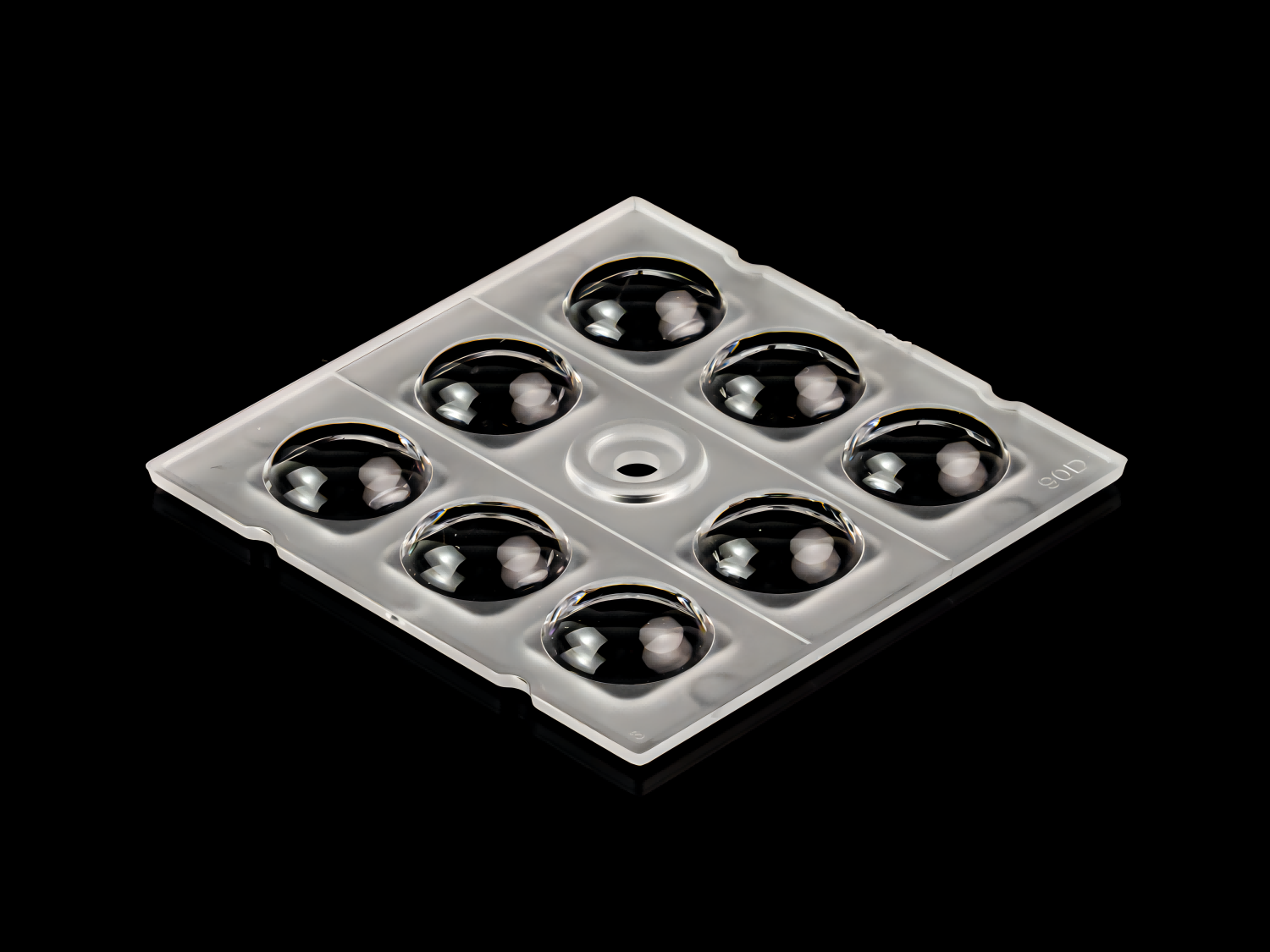

2x2 Arrays Wide Forward Throw Beam Urban Area Light Lens

Model: ALST50D4LED5050T12060G

Diameter: 50x50mm

Height: 8.62mm

Angle: T4 120°*60°

Material: PC-1250Z

Transmittance: >90%

LED Type: 5050LED

Lighting Applications: Area Lighting,Street Lighting

1. The Type IV 120x60° lens is designed to provide versatile area coverage.

2. With its 120x60° light distribution, this lens achieves a balanced distribution of light both horizontally and vertically, ensuring even illumination across the targeted area.

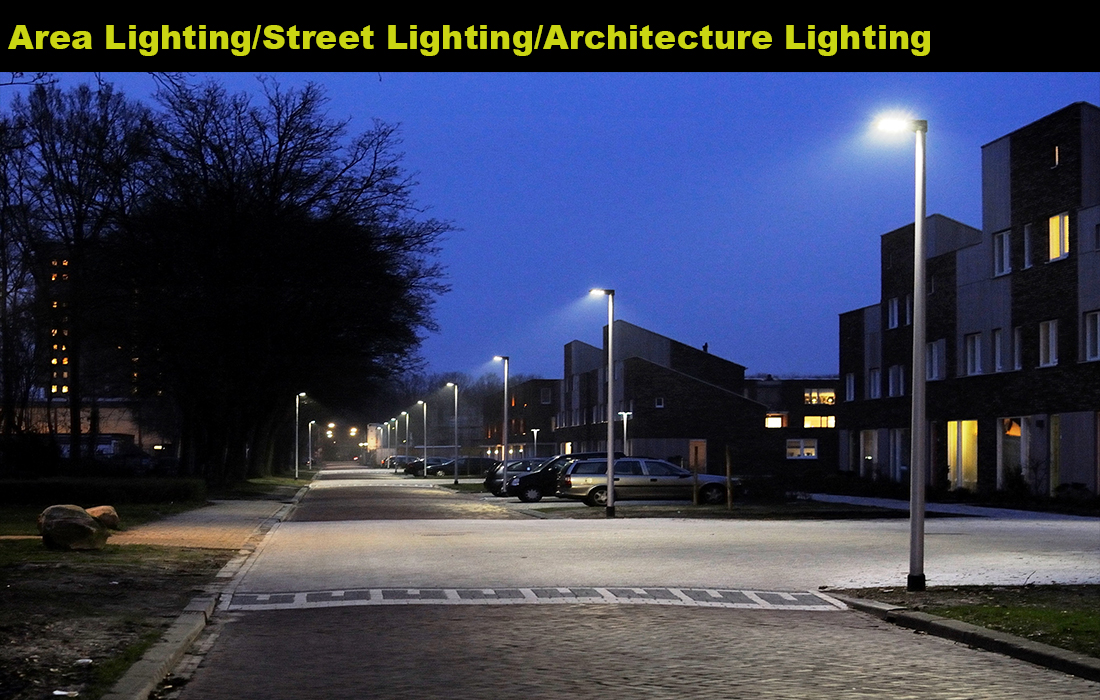

3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

1. The Type IV 120x60° lens is designed to provide versatile area coverage.

2. With its 120x60° light distribution, this lens achieves a balanced distribution of light both horizontally and vertically, ensuring even illumination across the targeted area.

3. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

Specification

Model:	ALST50D4LED5050T12060G
Diameter:	50x50mm
Height:	8.62mm
Angle:	120*60°
Material：	PC-1250Z
Transmittance：	>90%
LED Type	5050LED
Lighting applications	Area Lighting,Street Lighting

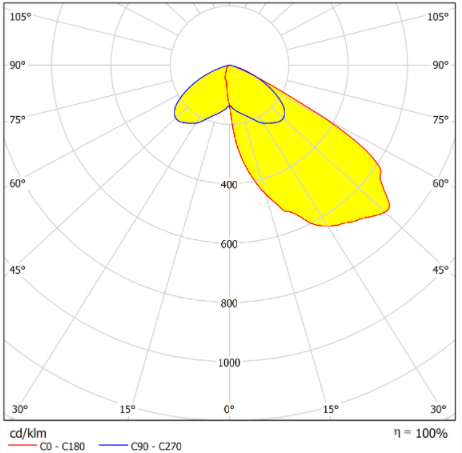

Light Distribution Curve

5050T12060G

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
