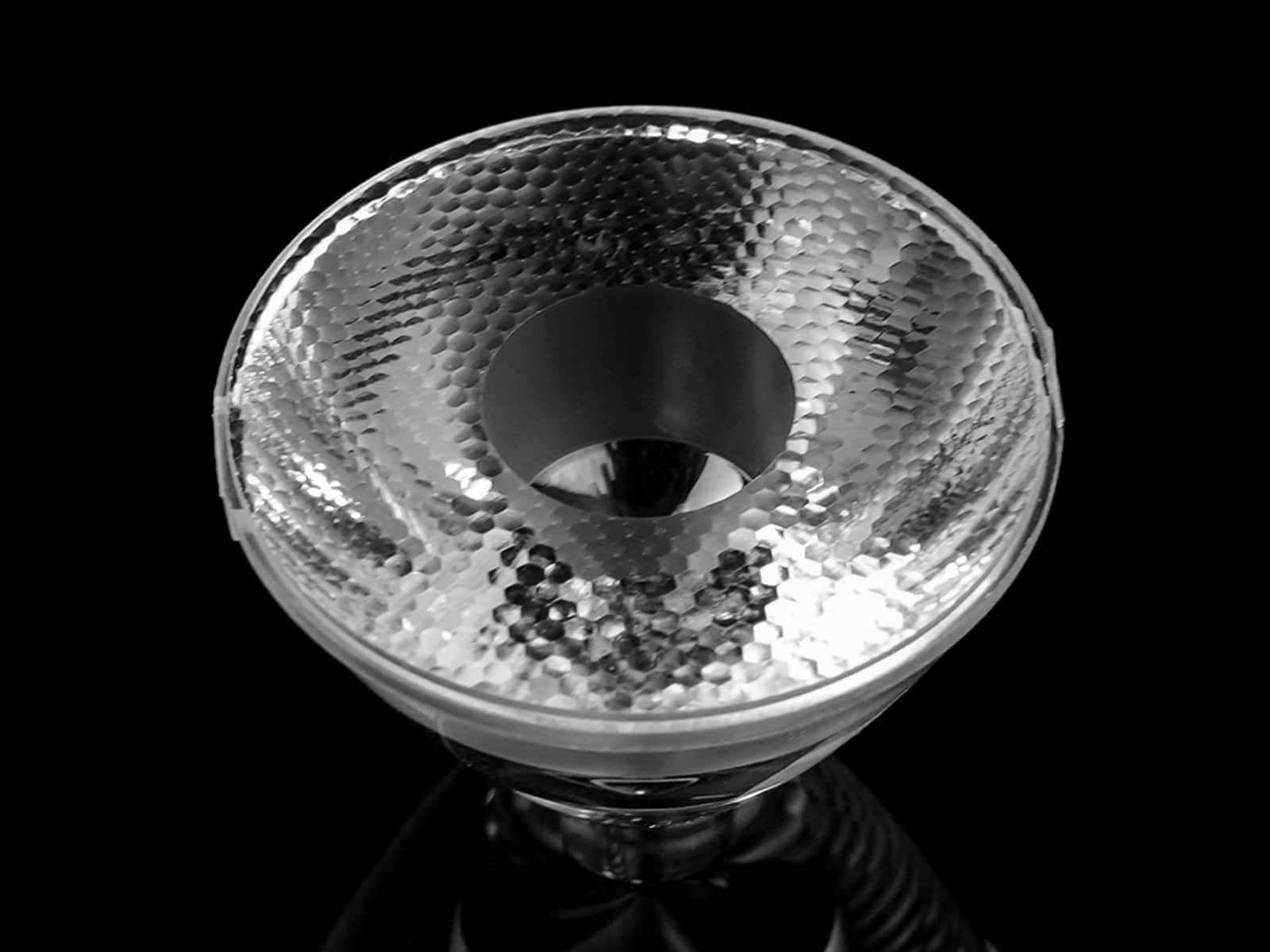

Model: AJS45DRGBW5G
Diameter: 45mm
Height: 26.4mm
Angle: 5°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW
Lighting Applications: Stage light
1. RGBW COB LED lenses with a 5° beam angle are particularly useful in stage lighting as they offer precise and focused light.
2. LED lenses with a narrow 5° beam angle, allows for more control over the direction of the light and can help to create a more dynamic and visually interesting lighting design.
3. Ideal for stage lighting, architectural lighting, and decorative lighting applications

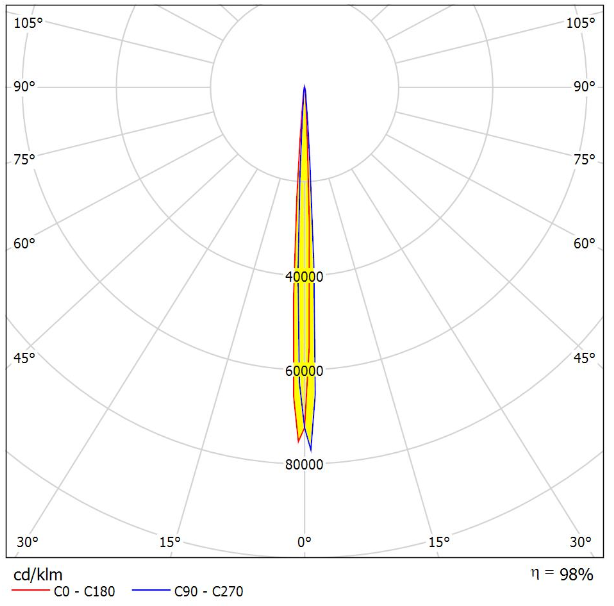

Distribution
Specifications
| Model: | AJS45DRGBW5G |
| Diameter: | 45mm |
| Height: | 26.4mm |
| Angle: | 5° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW |
| Lighting applications | Stage light |
LED Type
XML-RGBW
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
