Model: AJHB50D6LED90G-3S
Diameter: 50x50mm
Height: -
Angle: 90°
Material: PC-1250Z
Transmittance: >88%
LED Type: 5050 LED
Lighting Applications: High Bay Lighting, Area Lighting
1.The 2x3 lens 90° is specifically designed for 5050 LEDs, providing a wide 90° beam angle for extensive light coverage.
2. The 2x3 lens 90° is resistant to UV radiation, heat, and environmental wear. Its robust design ensures long-lasting performance, making it suitable for both indoor and outdoor applications.

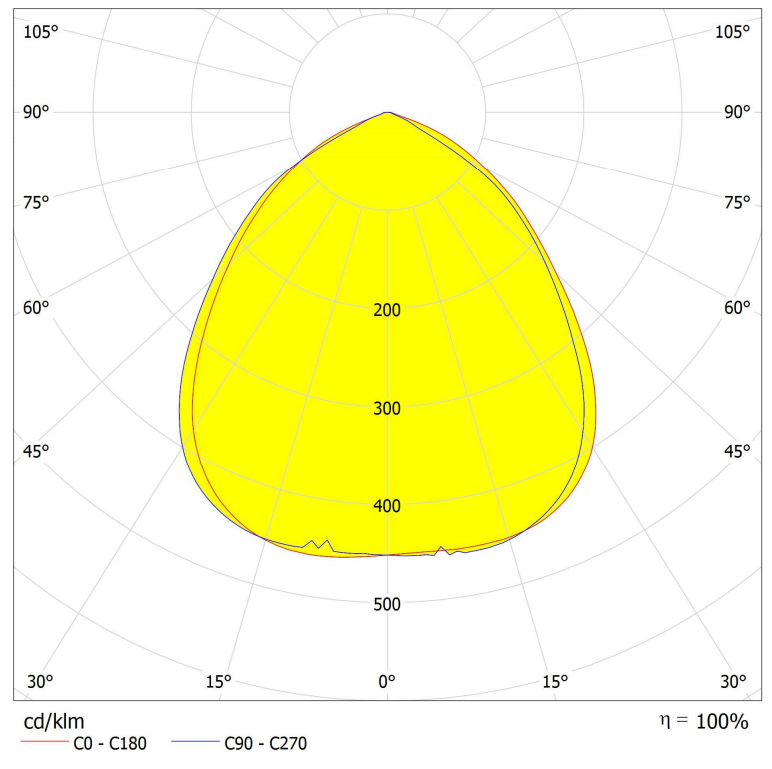

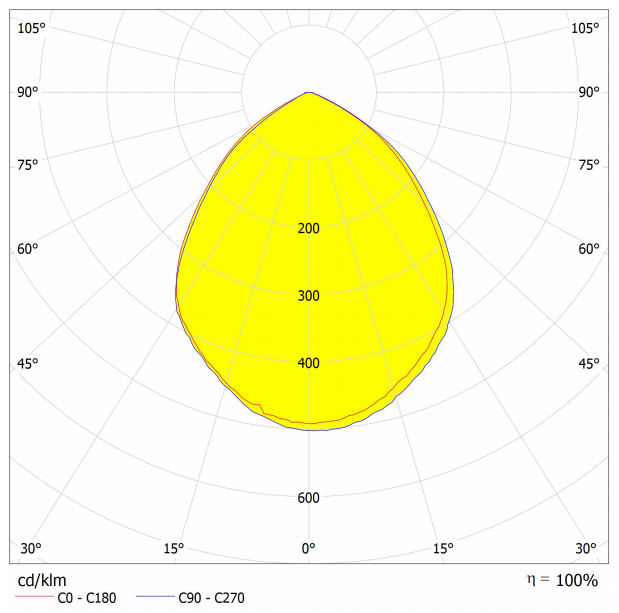

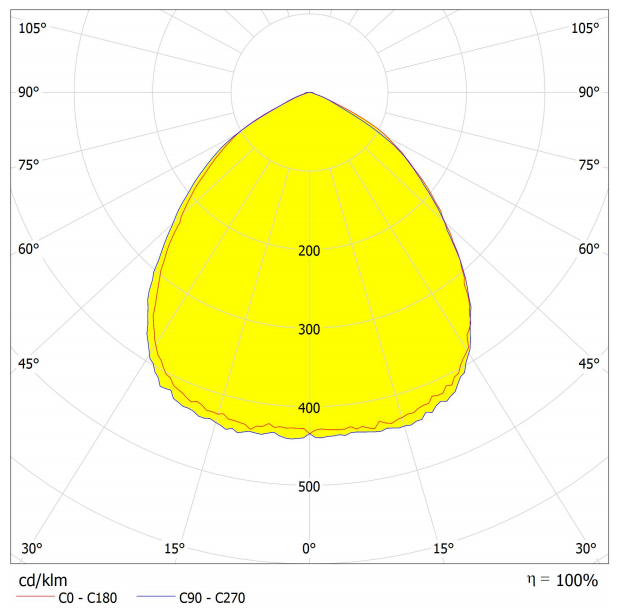

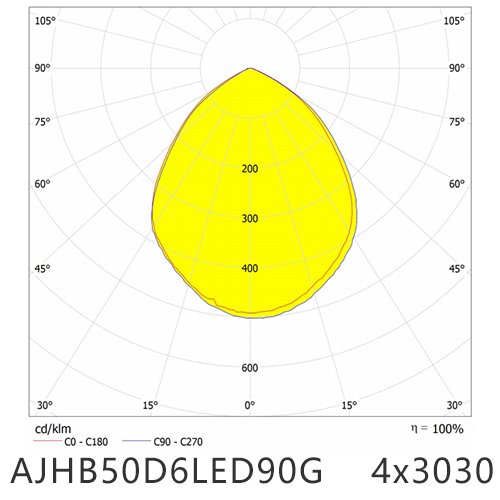

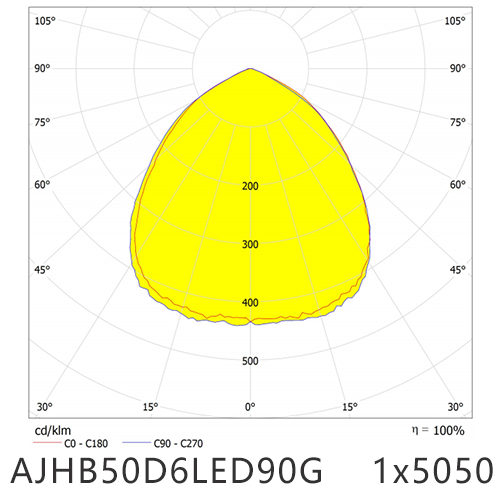

Distribution
Specifications
| Model: | AJHB50D6LED90G-3S |
| Diameter: | 50x50mm |
| Height: | - |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >88% |
| LED Type | 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.The 2x3 lens 90° is specifically designed for 5050 LEDs, providing a wide 90° beam angle for extensive light coverage.
2. The 2x3 lens 90° is resistant to UV radiation, heat, and environmental wear. Its robust design ensures long-lasting performance, making it suitable for both indoor and outdoor applications.

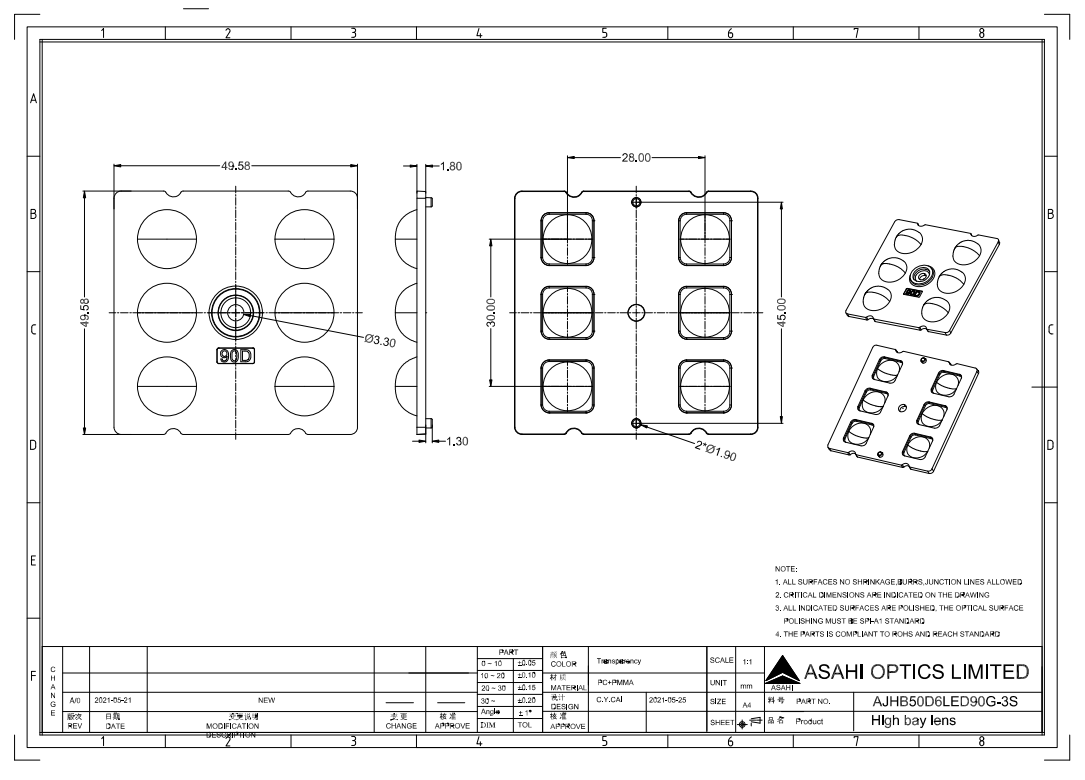

ASAHI OPTICS AJHB50D6LED90G Drawing.dwg
ASAHI OPTICS AJHB50D6LED90G Drawing.pdf
