Model: ARST256D90LEDT3M
Diameter: 256x78.5mm
Height: 7.35mm
Angle: T3M
Material: PC-1250Z
Transmittance: >93%
LED Type: 3030LED
Lighting Applications: Street lighting,Architecture lighting
1. The 90LED lens module (3030LED) is a high-performance optical component designed for TYPE III Medium beam street lights. With dimensions of L256.0mm x W78.5mm, a height of 7.35mm and a beam angle of T3M, it is able to meet the diverse needs of street lighting and architectural lighting.
2. The lens module is made of PC-1250Z material, with a transmittance of more than 93%, ensuring efficient light transmission. In addition, its IP66 protection rating makes it resistant to dust and moisture intrusion, suitable for long-term outdoor use.

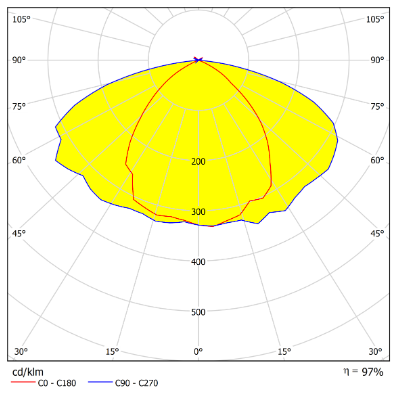

Distribution
Specifications
| Model: | ARST256D90LEDT3M |
| Diameter: | 256x78.5mm |
| Height: | 7.35mm |
| Angle: | T3M |
| Material： | PC-1250Z |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting,Architecture lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
