Model: ARHB236D64LEDT30
Diameter: 236mm
Height: 7.1mm
Angle: 30°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030 LED
Lighting Applications: High Bay Lighting, Area Lighting
1. 64LEDs lens 30° is designed specifically for high bay lights, which is a popular choice for industrial and commercial lighting projects.
2. The lens is designed with 3030 LED. The 3030LED chips used in this product are known for their high brightness, energy efficiency, and long lifespan.
3. A specific beam angle of 30 degrees is ideal for applications where a narrower beam angle or light projection is desired, such as spotlights, track lighting, and architectural lighting.

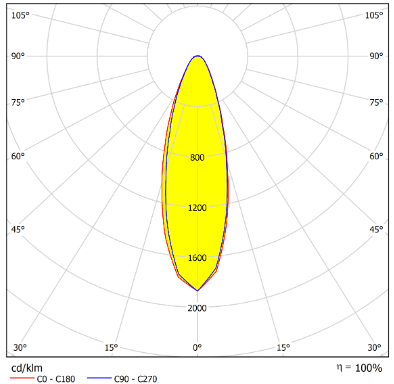

Distribution
Specifications
| Model: | ARHB236D64LEDT30 |
| Diameter: | 236mm |
| Height: | 7.1mm |
| Angle: | 30° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3030 LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB236D64LEDT30 lens 3D drawing.STP
ASAHI OPTICS ARHB236D64LEDT30 Drawing.dwg
ASAHI OPTICS ARHB236D64LEDT30 Drawing.pdf
ASAHI OPTICS ARHB236D64LEDT30 lens IES.ies
