Model: ARHB236D28LEDT30G
Diameter: 236x70mm
Height: 9.5mm
Angle: 30°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 5050LED

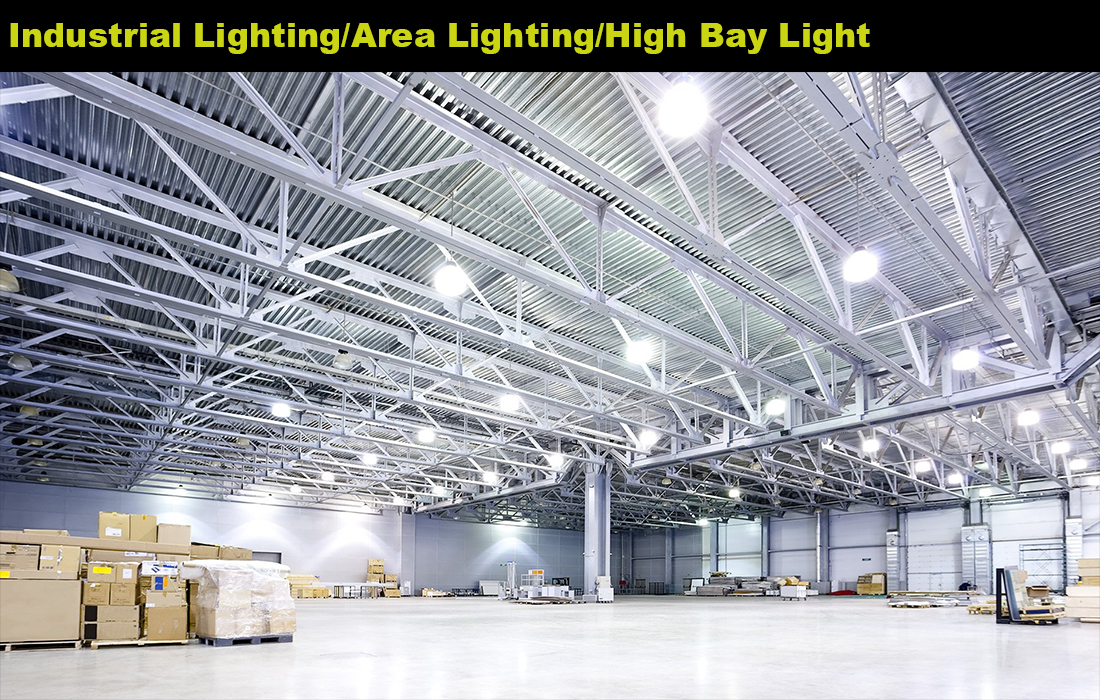

Lighting Applications: High Bay Lighting, Area Lighting
1. 28-in-1 module lens, designed with 5050LED, achieving a power output of up to 100W per piece.
2. With a 30degree beam angle, it is well-suited for floodlight applications, providing efficient and targeted illumination.
3. It's made of high quality PC material,ensuring durability and heat resistance up to 120°C.

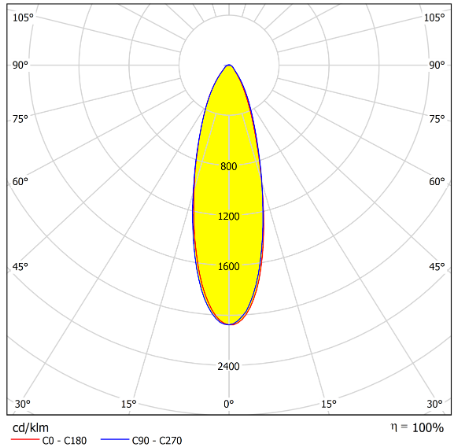

Distribution
Specifications
| Model: | ARHB236D28LEDT30G |
| Diameter: | 236x70mm |
| Height: | 9.5mm |
| Angle: | 30° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

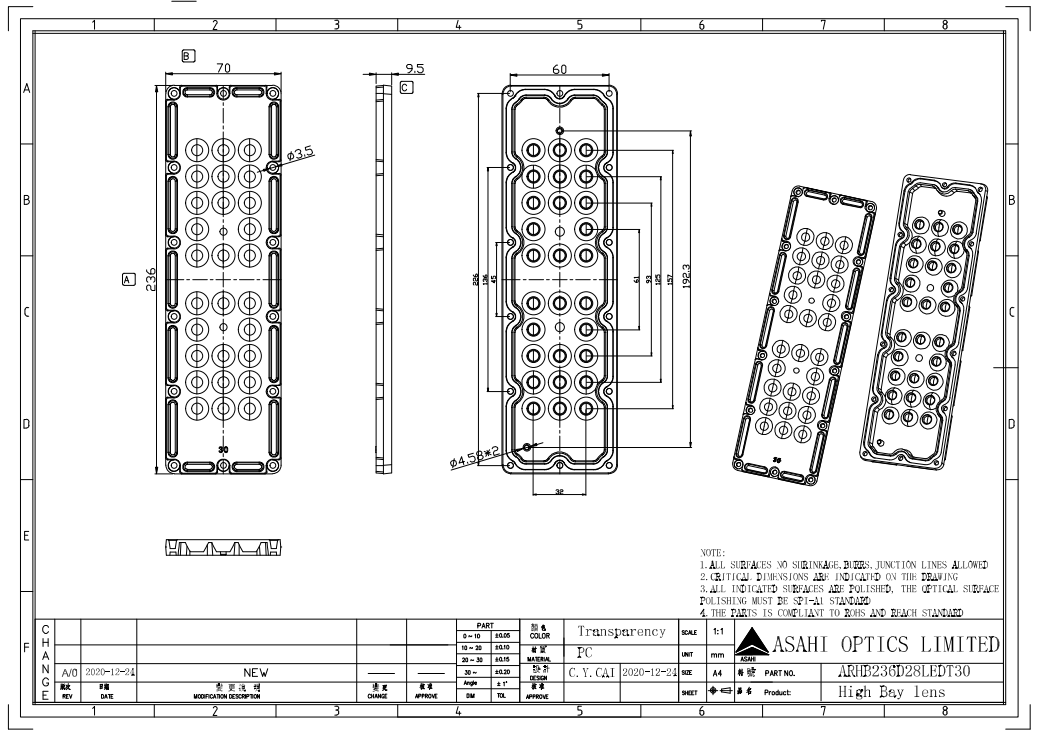

ASAHI OPTICS ARHB236D28LEDT30 lens 3D drawing.STP
ASAHI OPTICS ARHB236D28LEDT30 Drawing.dwg
ASAHI OPTICS ARHB236D28LEDT30 Drawing.pdf
ASAHI OPTICS ARHB236D28LEDs PCB Drawing.dwg
ASAHI OPTICS ARHB236D28LEDs PCB Drawing.pdf
ASAHI OPTICS ARHB236D28LEDT30 lens IES.ies
