Model: ARHB250D72LEDT90G
Diameter: 250x74mm
Height: 6.81mm
Angle: 90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 2835/3030LED

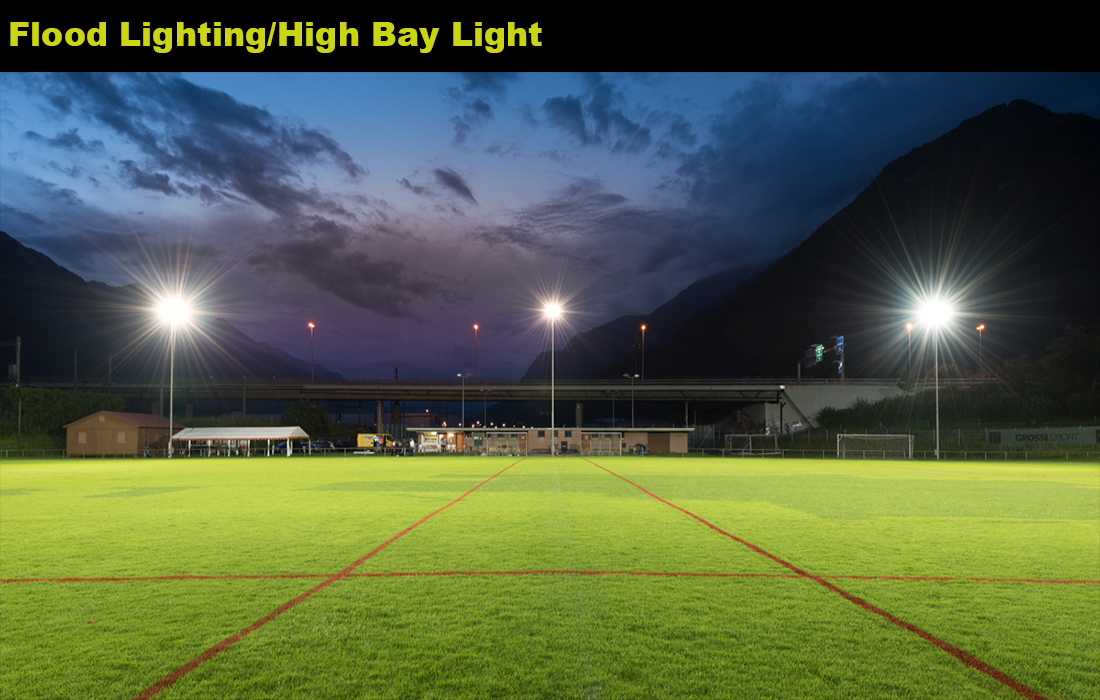

Lighting Applications: High Bay Lighting, Area Lighting

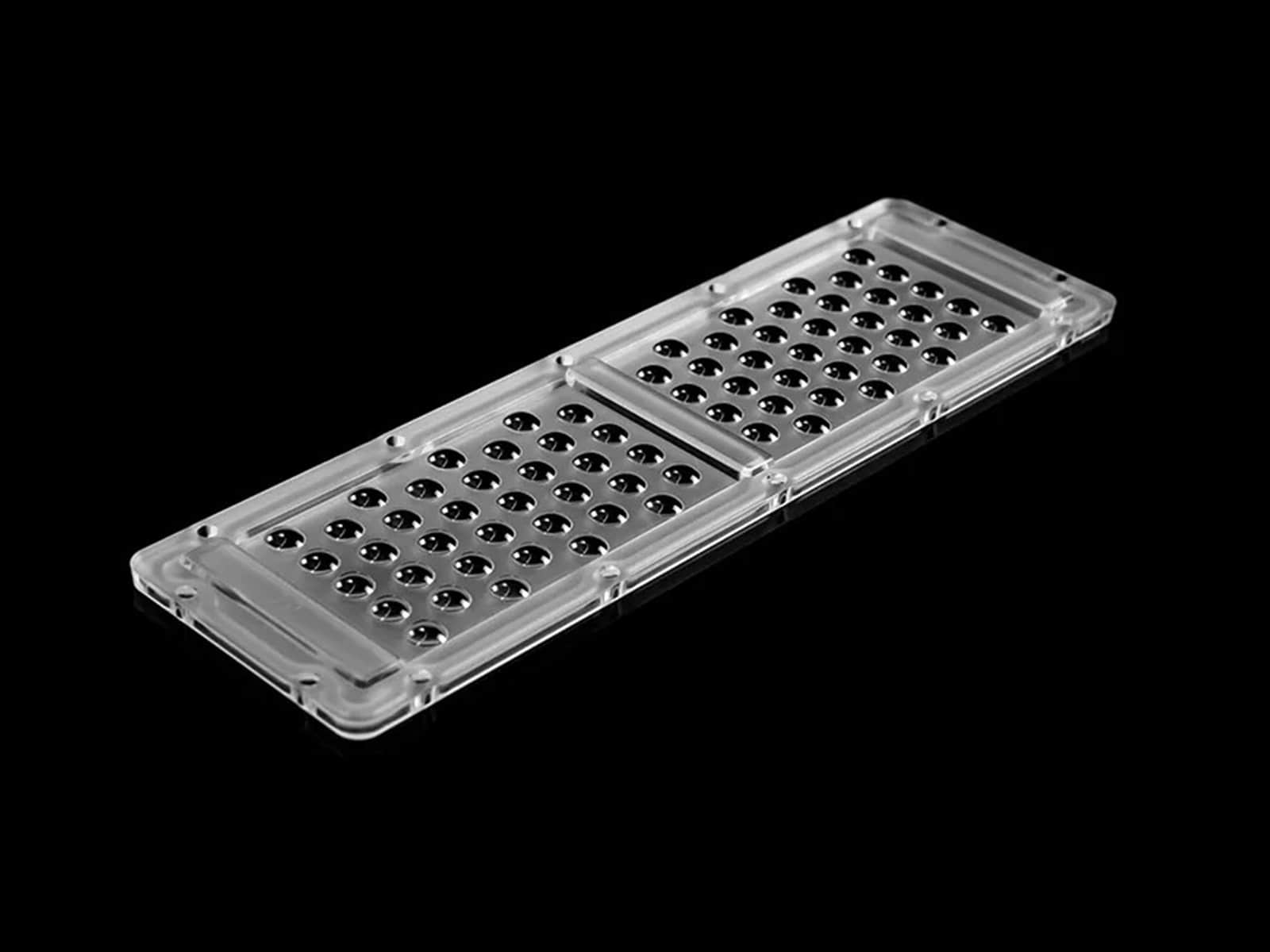

1. 72-in-1 module lens with 90° Wide beam angle,suitable for various applications requiring wide-angle illumination.
2. Compatible with both 2835 and 3030 LEDs, one module lens can achieve a power output of up to 50W.
3. IP66 rating ensures protection against dust and water, making it suitable for outdoor use.

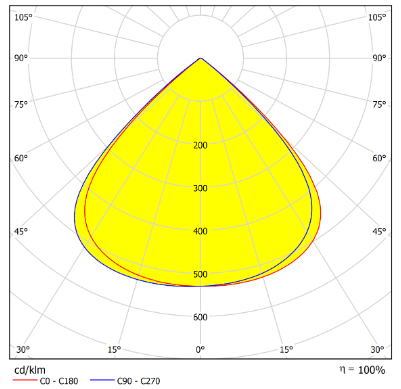

Distribution
Specifications
| Model: | ARHB250D72LEDT90 |
| Diameter: | 250x74mm |
| Height: | 6.81mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/3030LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB250D72LEDT90 lens 3D drawing.STP

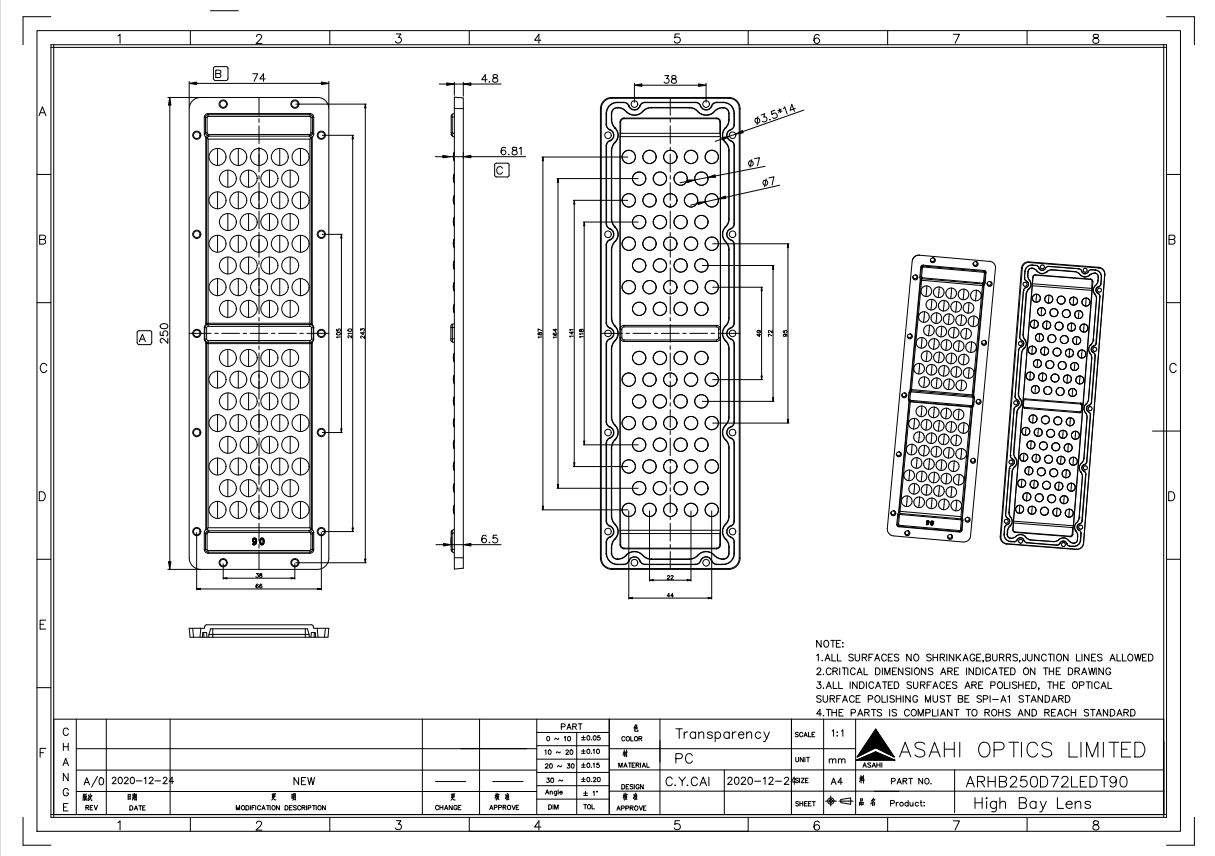

ASAHI OPTICS ARHB250D72LEDT90 Drawing.dwg
ASAHI OPTICS ARHB250D72LEDT90 Drawing.pdf
ASAHI OPTICS ARHB250D72LEDT90 lens IES.ies
