Model: ALST50D24LEDT4VS
Diameter: 50x50mm
Height: 3.61mm
Angle: T4VS
Material: PC
Transmittance: >93%
LED Type: 3030LED

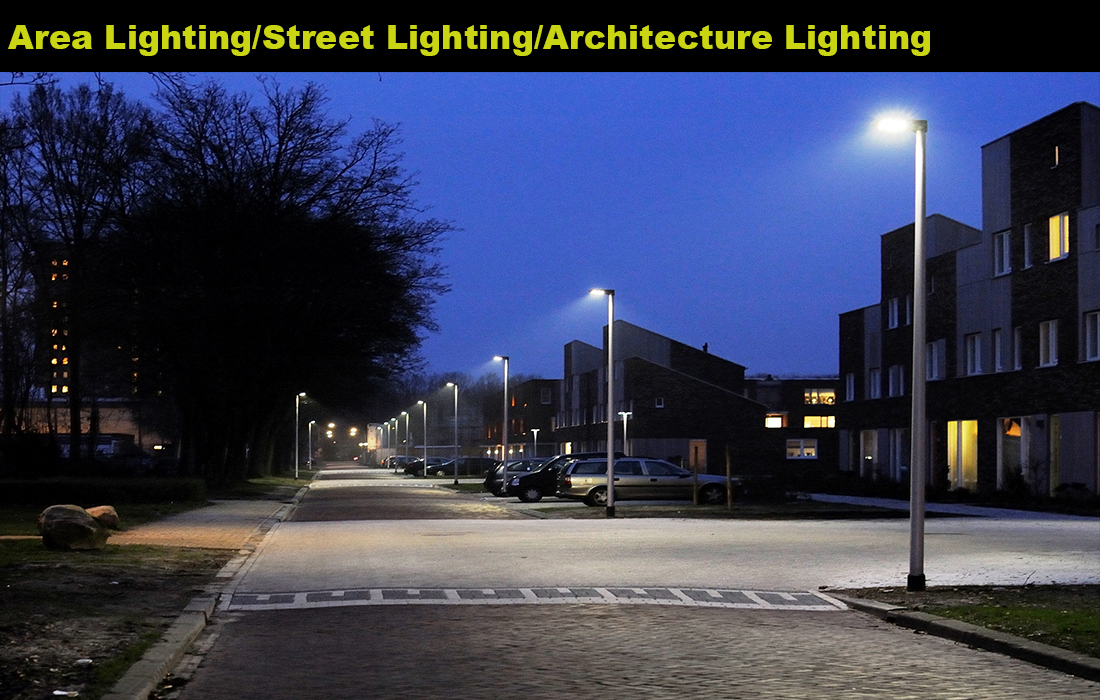

Lighting Applications:
1. ALHB50D24LEDT30/60/90/120 / T2S/T3M/T4VS were of the same series, They can be substituted for each other in arrangement.
2. T4very Short street light lenses typically have a narrower angle to provide more concentrated illumination, focusing light into a smaller area.
3. This narrow-angle design is suitable for road sections that require farther projection and higher illumination requirements.

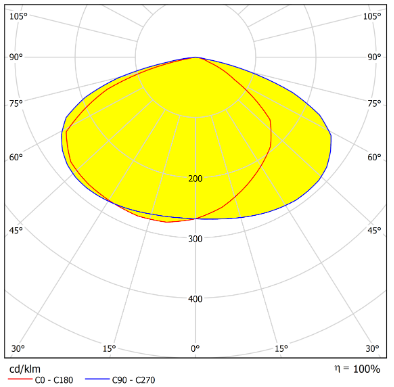

Distribution
Specifications
| Model: | ALST50D24LEDT4VS |
| Diameter: | 50x50mm |
| Height: | 3.61mm |
| Angle: | T4VS |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | Area lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALST50D24LEDT4VS Drawing.dwg
ASAHI OPTICS ALST50D24LEDT4VS Drawing.pdf
ASAHI OPTICS ALST50D24LEDT4VS lens IES.ies
