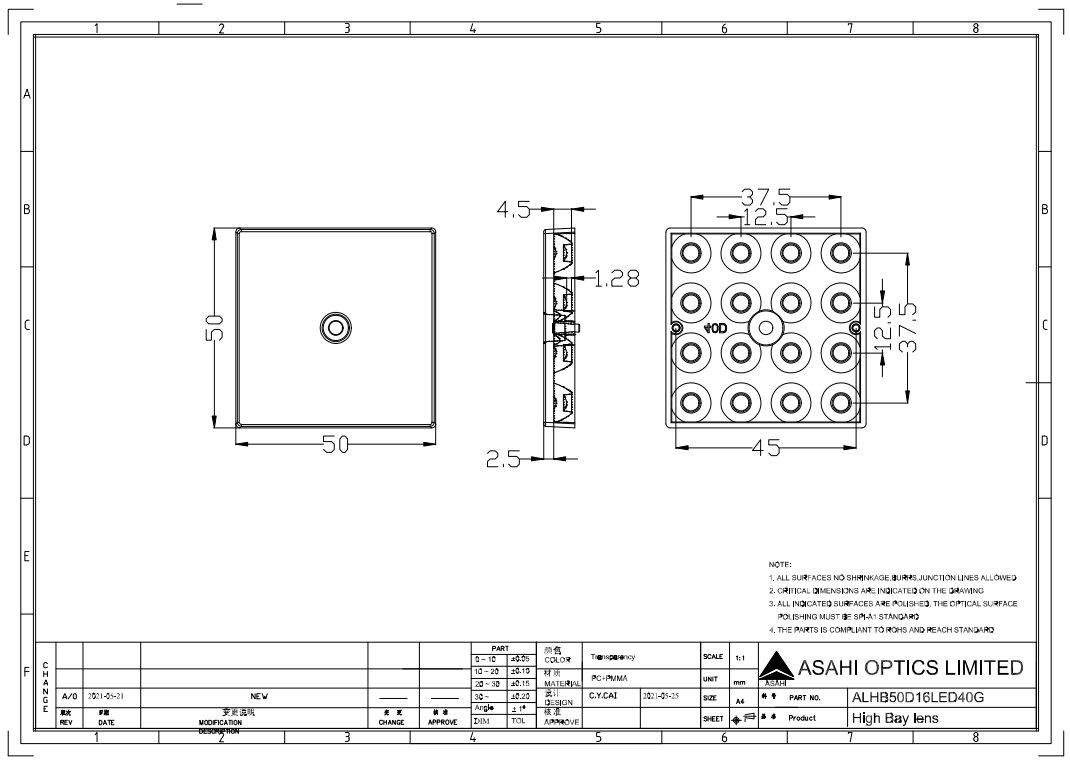

Model: ALHB50D16LED40G
Diameter: 50x50mm
Height: 7.7mm
Angle: 40°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED
Lighting Applications: Architecture lighting,High Bay lighting

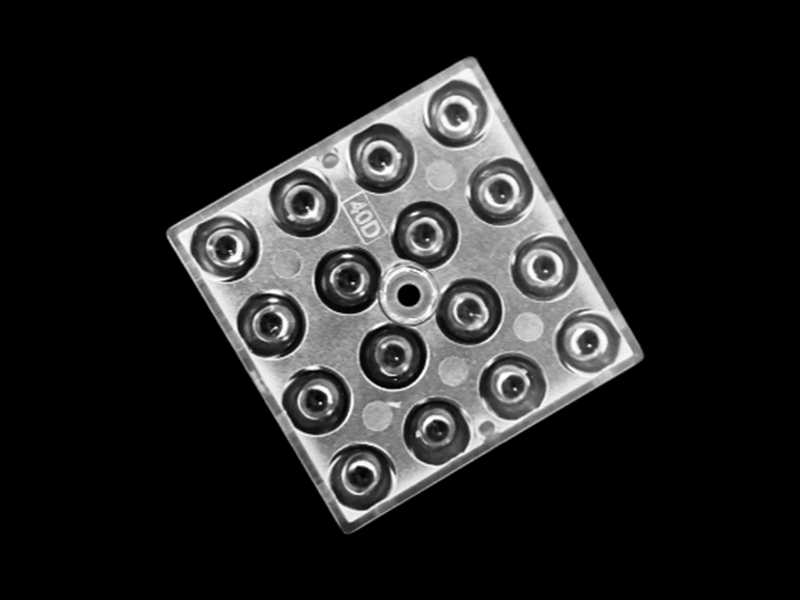

1. 16LEDs lens for 3030LED beam with a 40° angle is specifically designed to provide optimal light distribution and intensity for various lighting applications.
2. The 4x4 LEDs lens is compatible with 3030LEDs, which are popular light sources known for their high brightness and energy efficiency.
3. The 40° beam angle of the lens allows for focused and uniform lighting in a specific area, making it suitable for applications such as street lighting, architectural lighting, and outdoor area lighting.

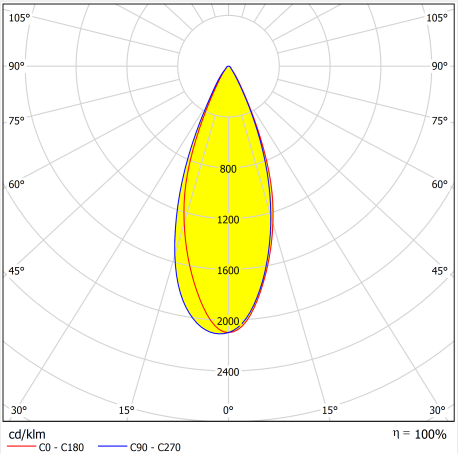

Distribution
Specifications
| Model: | ALHB50D16LED40G |
| Diameter: | 50x50mm |
| Height: | 7.7mm |
| Angle: | 40° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Architecture lighting,High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
