Model: AJHB265D4083G-SR
Size: Ø265mm
Height: 7mm
Angle: 40×83°
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: High bay light
1. 40×83° asymmetric elliptical light distribution optimized for high‑bay lighting, combining long‑range longitudinal throw with wide horizontal coverage, perfectly matching high‑bay mounting spacing and spatial layout.
2. With a diameter of 265mm and a height of only 7mm, the large‑size thin and light design delivers a uniform and bright lighting solution for large spaces such as factories and warehouses.

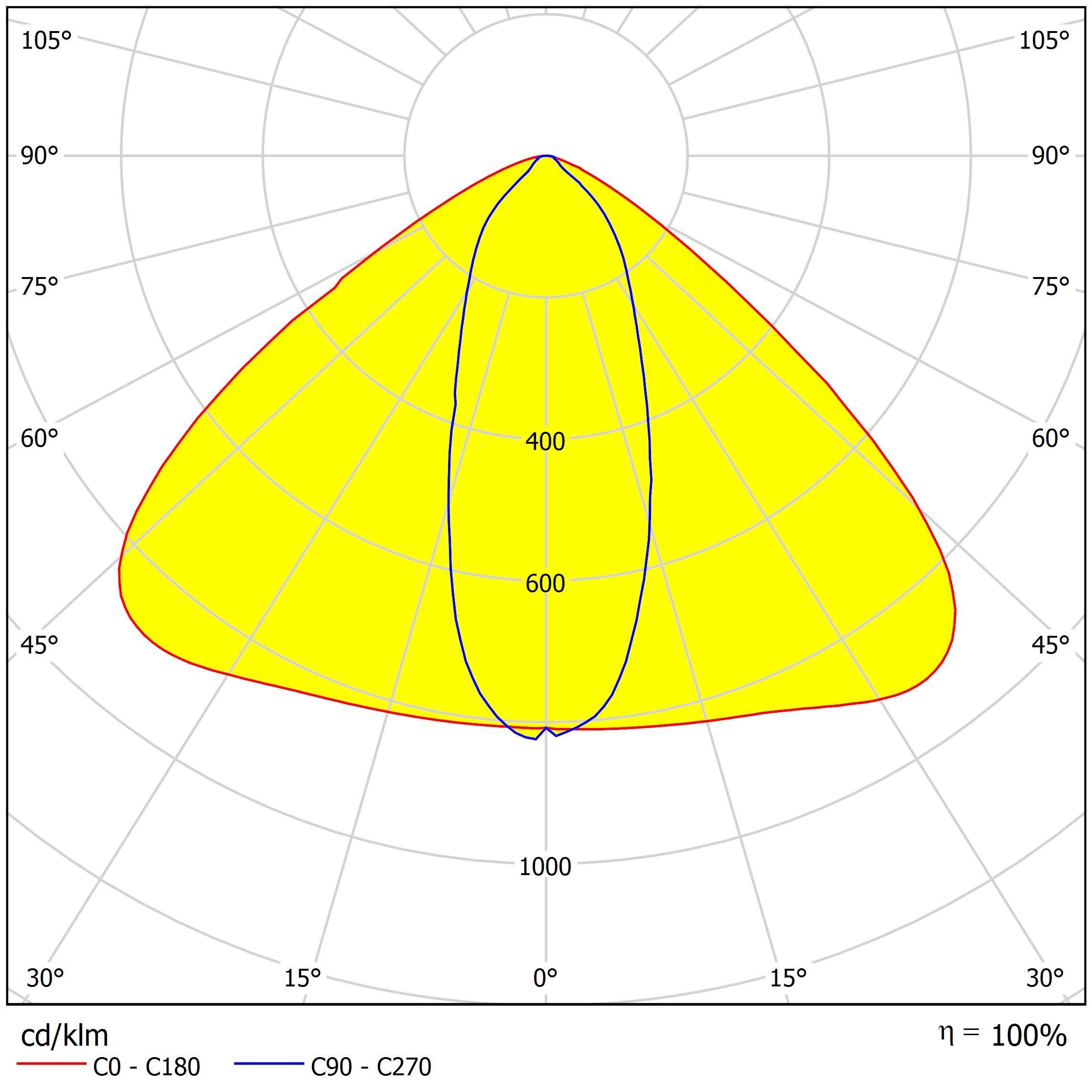

Distribution
Specifications
| Model: | AJHB265D4083G-SR |
| Size: | Ø265mm |
| Height: | 7mm |
| Angle: | 40x83° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

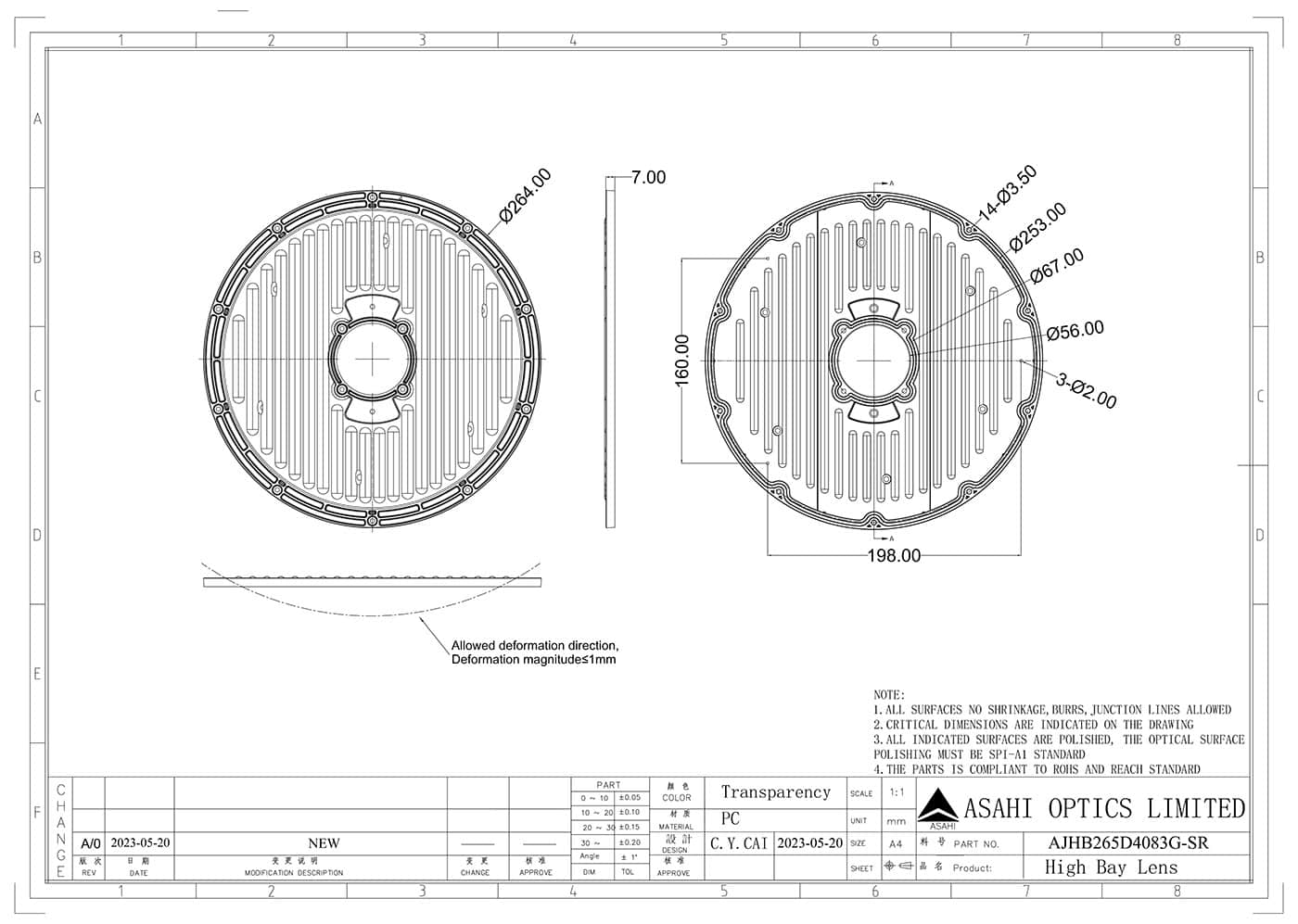

AJHB265D4083G SR 2D Drawing.dwg
AJHB265D4083G SR 2D Drawing.pdf
AJHB265D4083G SR 2D PCB Drawing.dwg
