Model: AR8542

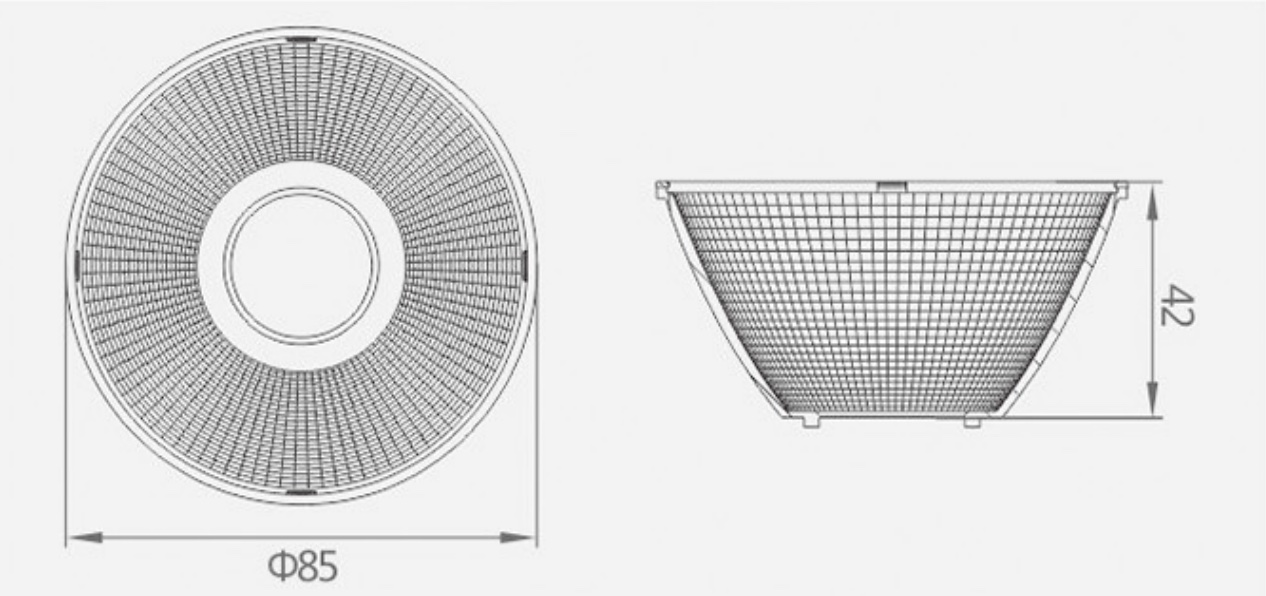

Diameter: 85mm, 25mm
Height: 42mm

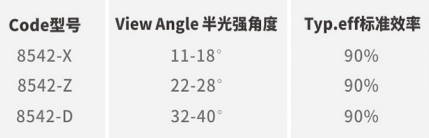

Angle: 15°, 25°, 38°
Material: PC+Aluminum Coating
Transmittance: >88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

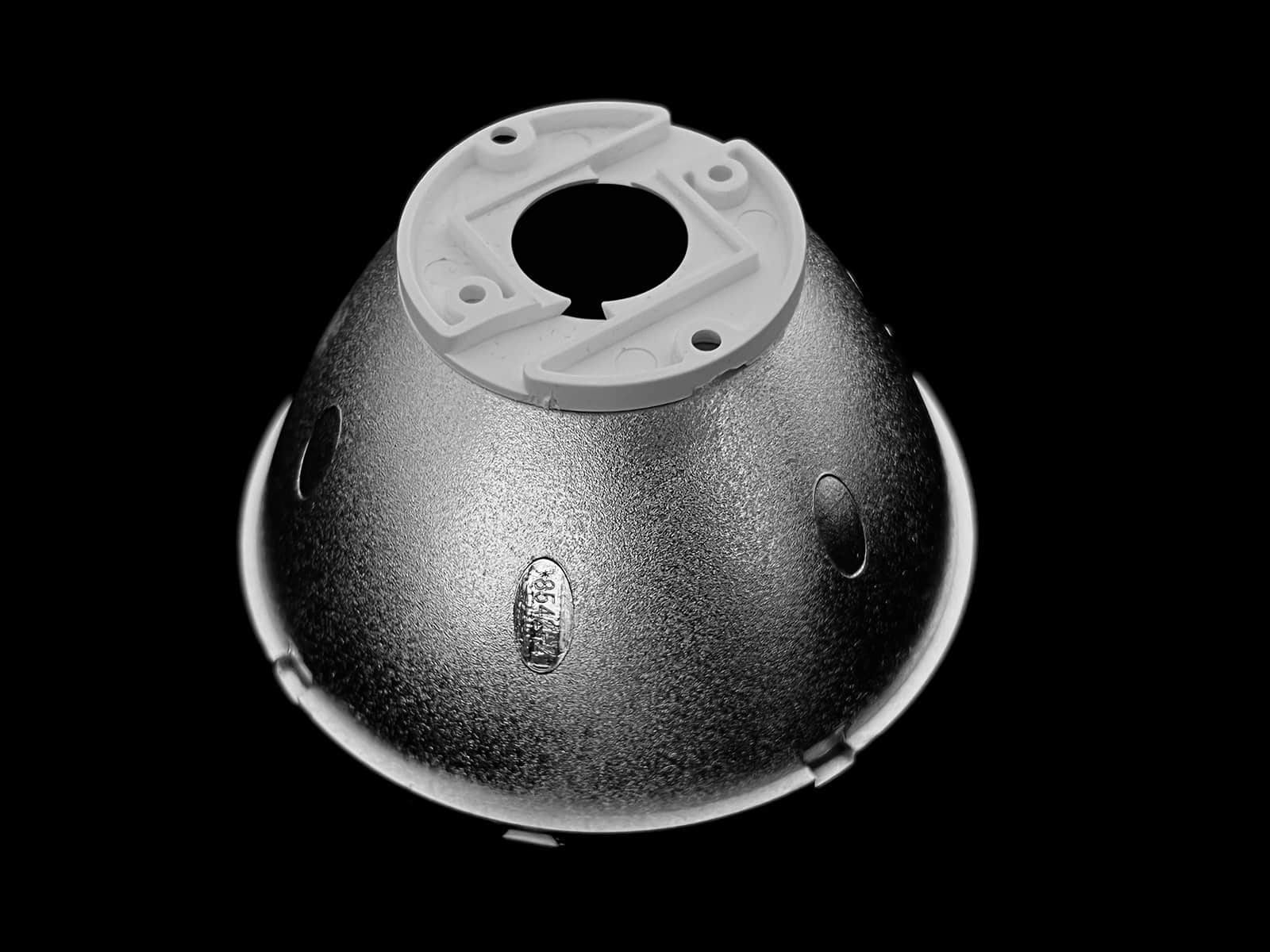

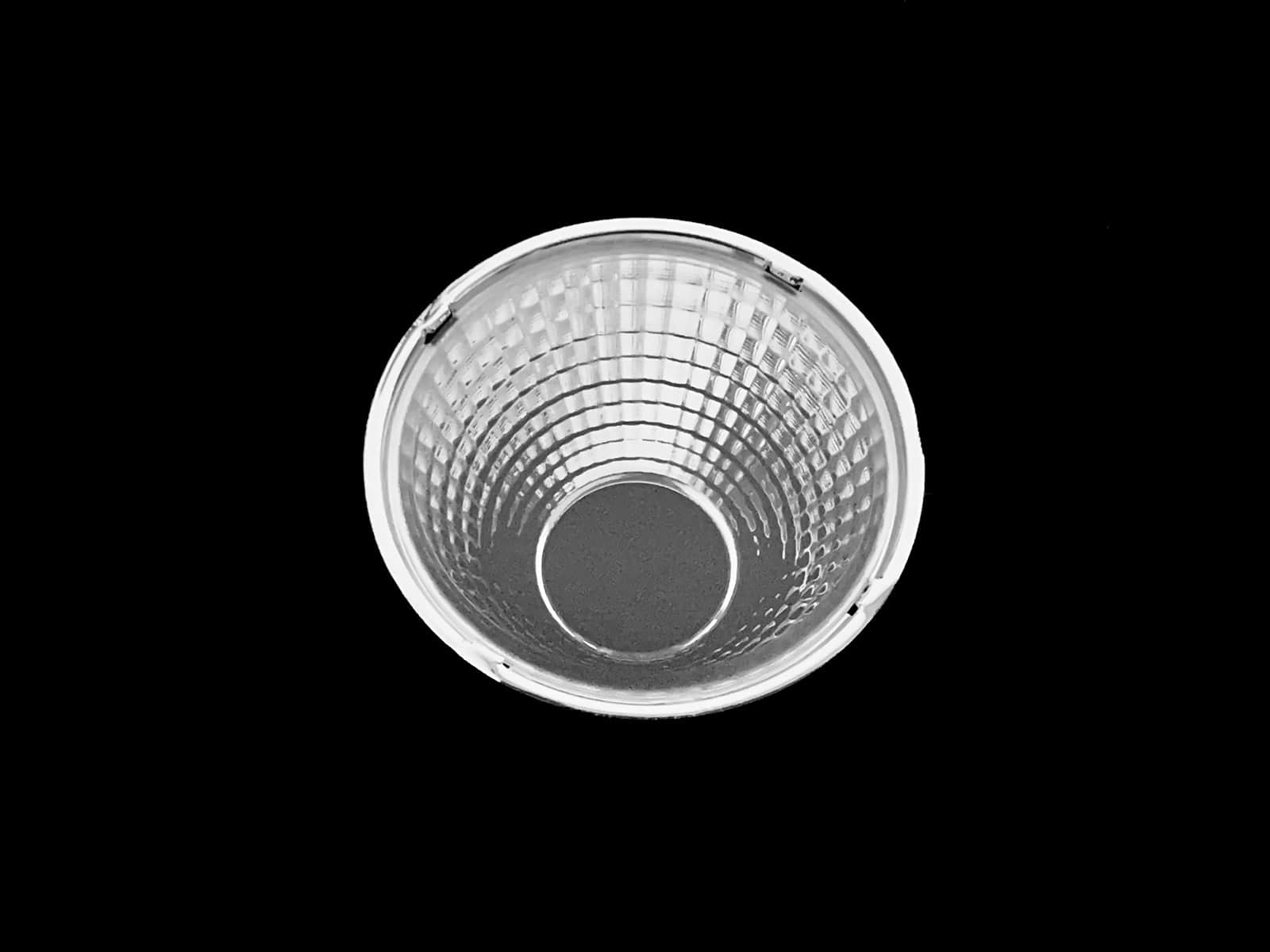

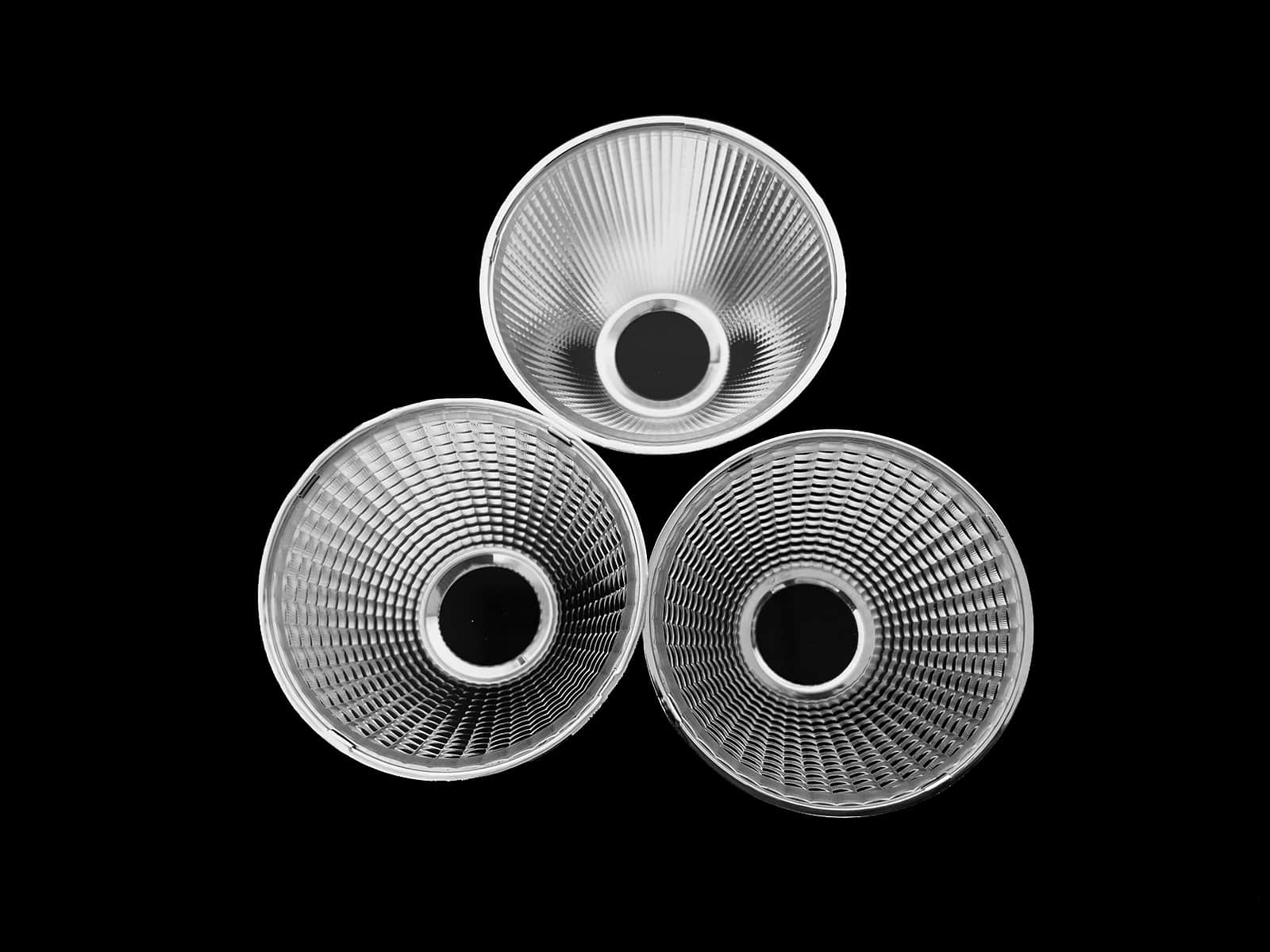

1, 85mm PC Material Led Reflector Suitable For Spot Lights, the reflector technology allows for precise beam control.

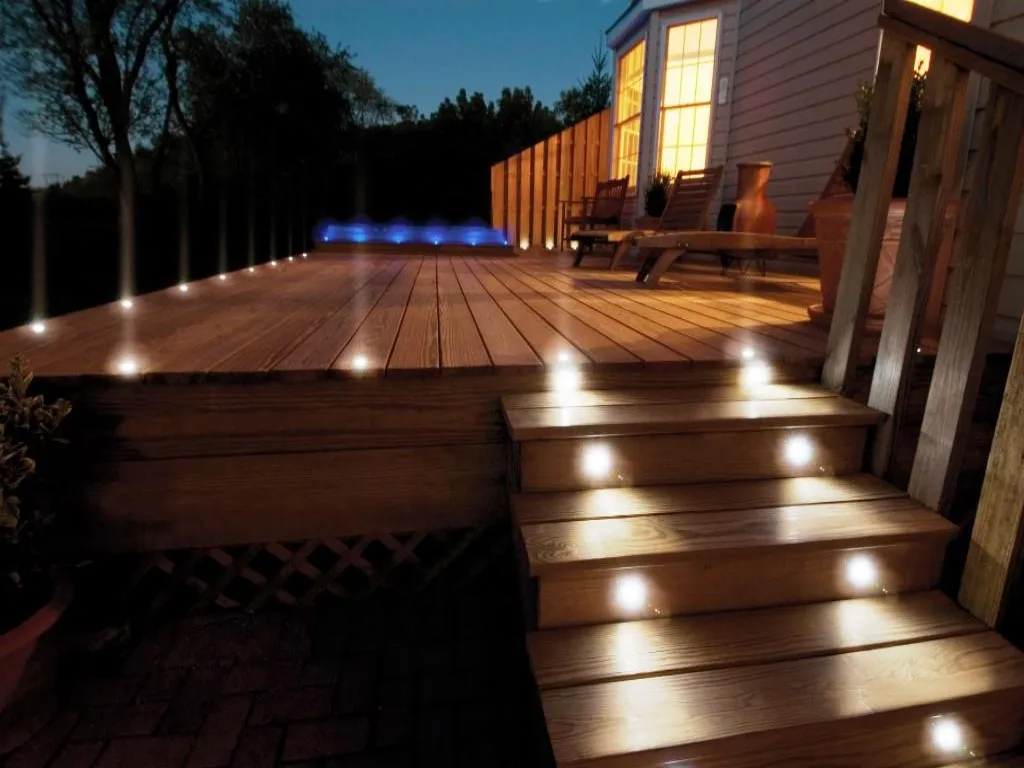

2, They are used to provide focused and uniform illumination for signs, billboards, and advertising displays, ensuring visibility and attracting attention even in dark or dimly lit environments.
Distribution
Specifications
| Model: | AR8542 |
| Diameter: | 85mm, 25mm |
| Height: | 42mm |
| Angle: | 15°, 24°, 38° |
| Material： | PC+Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting, Spot Light, Down Light |

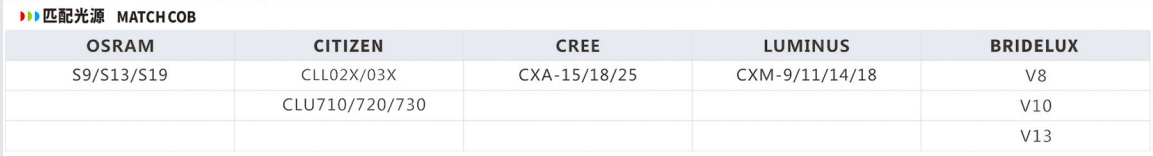

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
