62mm Cob Led Optical Led Lens For Down Lights

62mm Cob Led Optical Led Lens For Down Lights

Model: AHCOB6022D

Diameter: 60.0mm

Height: 22.2mm

Angle: 15° ;24°

Material: PMMA

Transmittance: 90%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

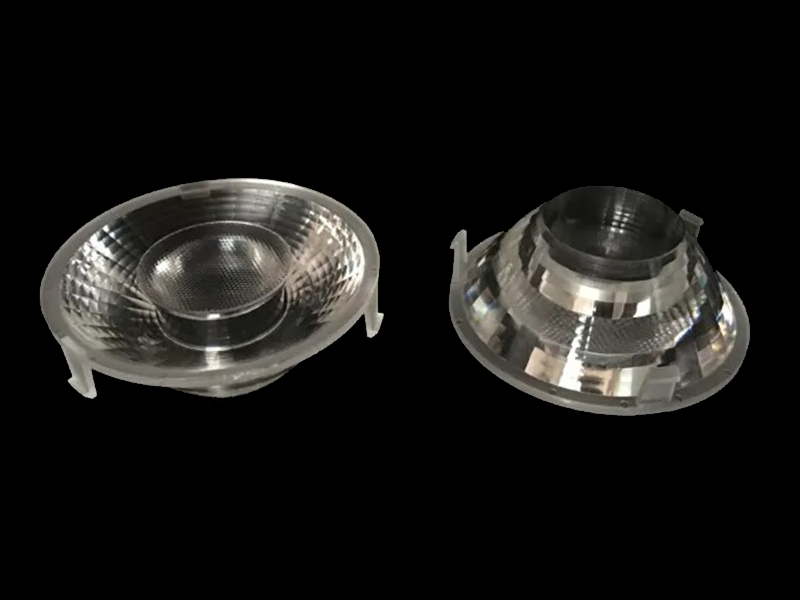

1, 62mm Cob Led Optical Led Lens For Down Lights. COB lens is an optical component specifically designed to control and shape the light output of a COB LED.

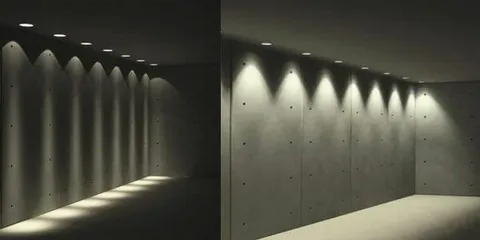

2, COB lenses are widely used in indoor lighting applications such as downlights, track lights, recessed lights, and pendant lights. The lenses help control the beam angle and light distribution, ensuring efficient and uniform illumination in residential, commercial, and hospitality spaces.

3, COB lenses are incorporated into various indoor and outdoor lighting fixtures, including downlights, spotlights, floodlights, and wall washers. These lenses help shape the light emitted by the COB LEDs, ensuring efficient light distribution and achieving desired lighting effects for different applications.

Specifications

Model:	AHCOB6022D
Diameter:	60.0mm
Height:	22.2mm

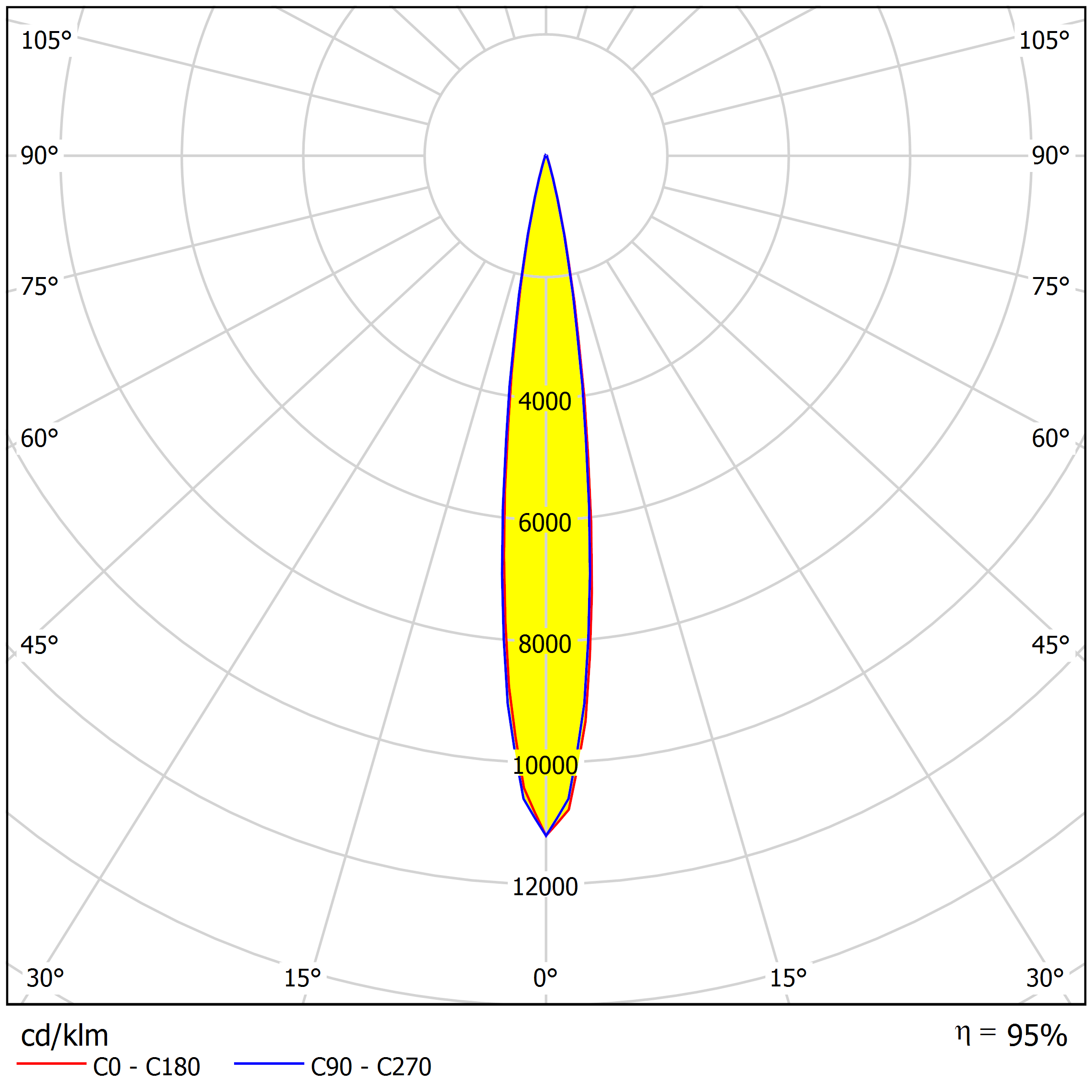

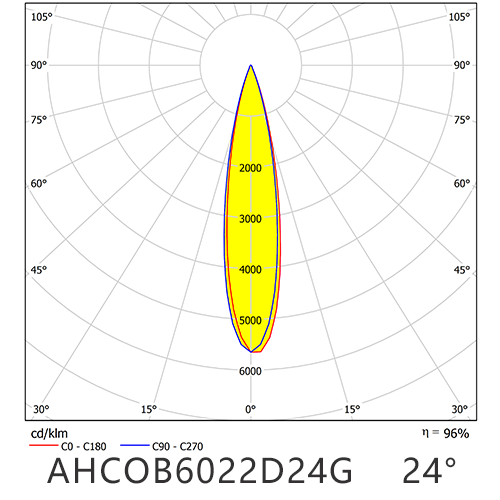

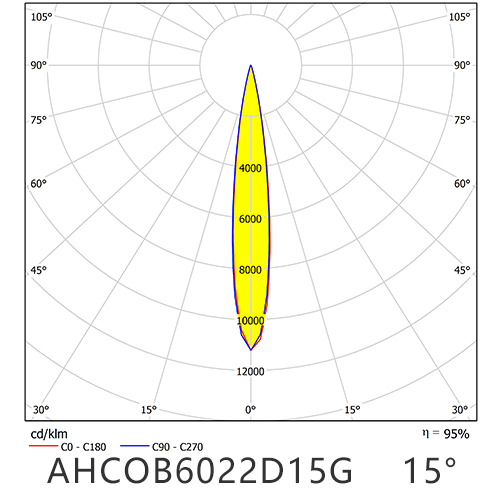

Angle:	15°, 24°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting, Spot Light, Down Light

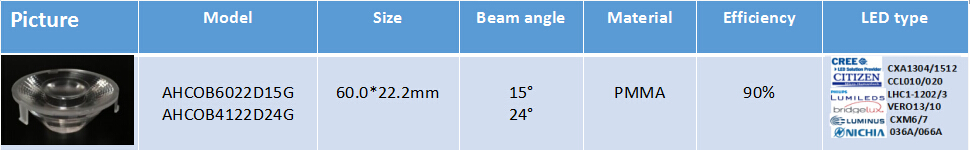

20160919143566166616

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
