Model: AJST304D22LEDT3
Diameter: 304mm
Height: 8.6mm
Angle: Type III
Material: PC
Transmittance: >88%
LED Type: 7070LED
Lighting Applications: Street lighting
1.T3 light distribution: Provides wide-range uniform illumination, particularly suitable for lighting applications such as roads, plazas, and industrial areas.
2.It is designed to be IP66 rated and dust and water resistant, making it ideal for outdoor use.

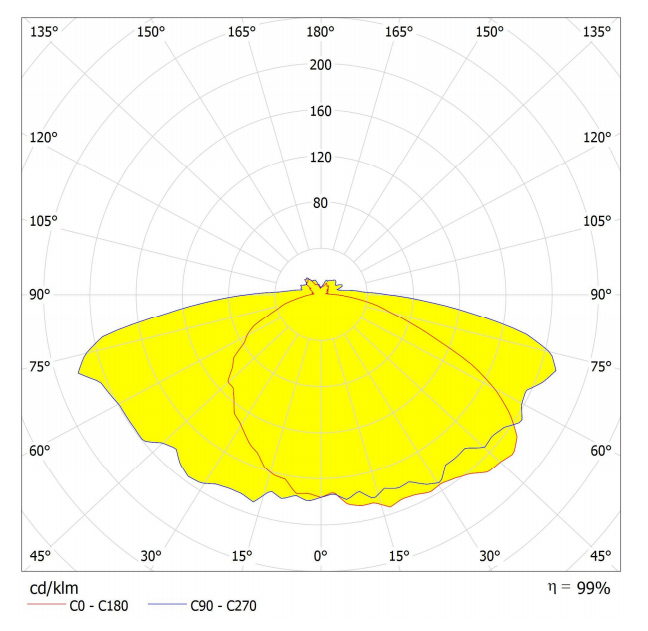

Distribution
Specifications
| Model: | AJST304D22LEDT3 |
| Diameter: | 304mm |
| Height: | 8.6mm |
| Angle: | Type III |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 7070LED |
| Lighting applications | Street Lighting |
LED Type
XHP70.3
OSCONIQ™ P 7070
LUXEON 7070 HE
149 Series
EMC7070LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

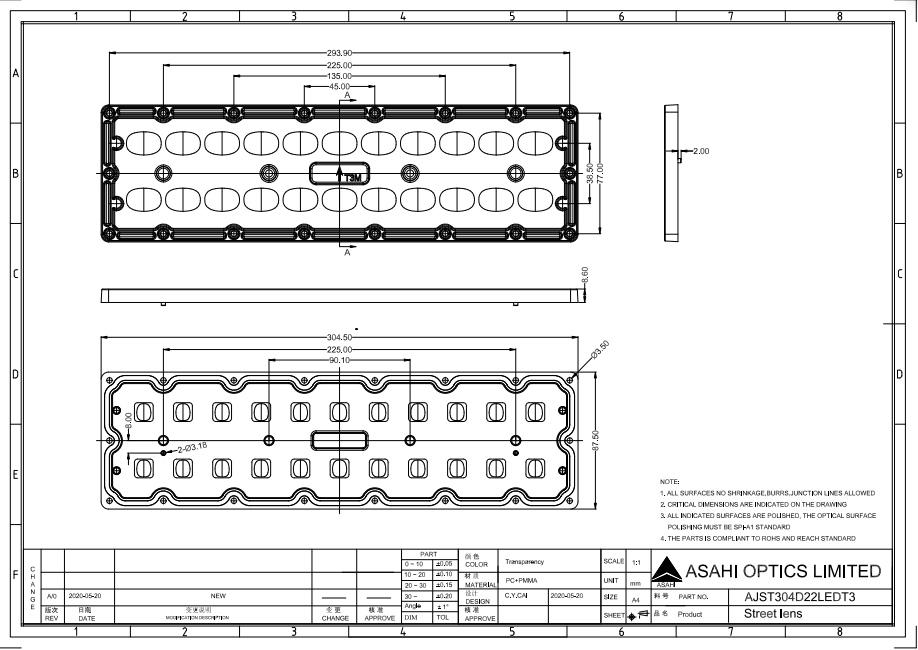

Asahi Optics AJST304D22LEDT3 Drawing.dwg
Asahi Optics AJST304D22LEDT3 Drawing.pdf
Asahi Optics AJST304D22LEDT2.IES
