Model: AJHB50D8LED30G
Diameter: 50x50mm
Height: 6.8mm
Angle: 30°
Material: PC
Transmittance: 88%
LED Type: 3030/ 5050LED
Lighting Applications: High bay lighting
1. The 50x50mm 8LED Lens 30° is designed with a precise 30-degree beam angle, offering focused and uniform light distribution.
2. The 50x50mm 8LED Lens 30° is ideal for applications requiring concentrated illumination, such as stadium lighting, street lights, and projector systems, ensuring optimal visibility and energy efficiency.

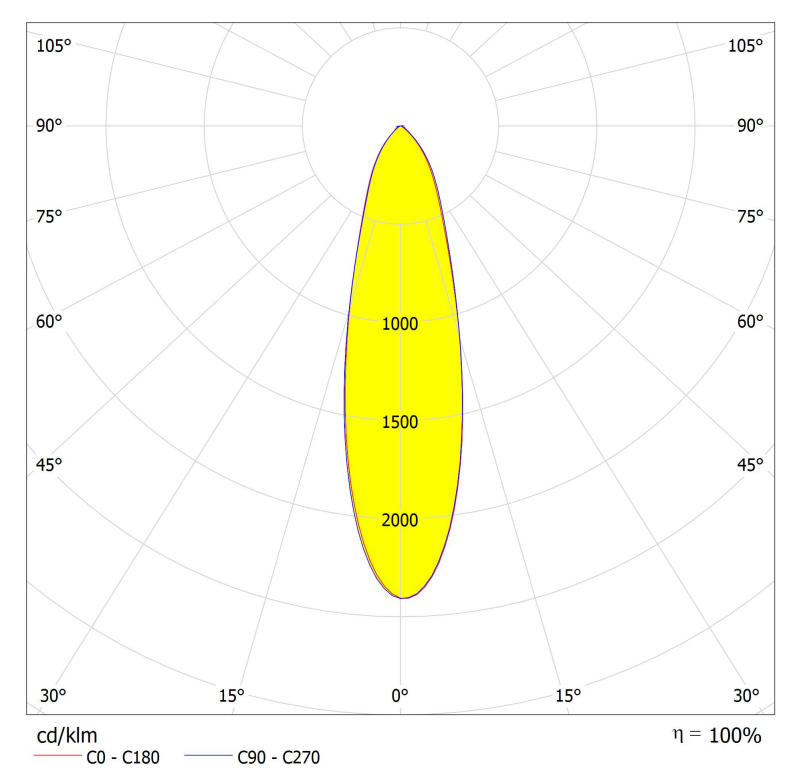

Distribution
Specifications
| Model: | AJHB50D8LED30G |
| Diameter: | 50x50mm |
| Height: | 6.8mm |
| Angle: | 30° |
| Material： | PC |
| Transmittance： | ＞88% |
| LED Type | 3030/ 5050LED |
| Lighting applications | High bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 50x50mm 8LED Lens 30° is designed with a precise 30-degree beam angle, offering focused and uniform light distribution.
2. The 50x50mm 8LED Lens 30° is ideal for applications requiring concentrated illumination, such as stadium lighting, street lights, and projector systems, ensuring optimal visibility and energy efficiency.

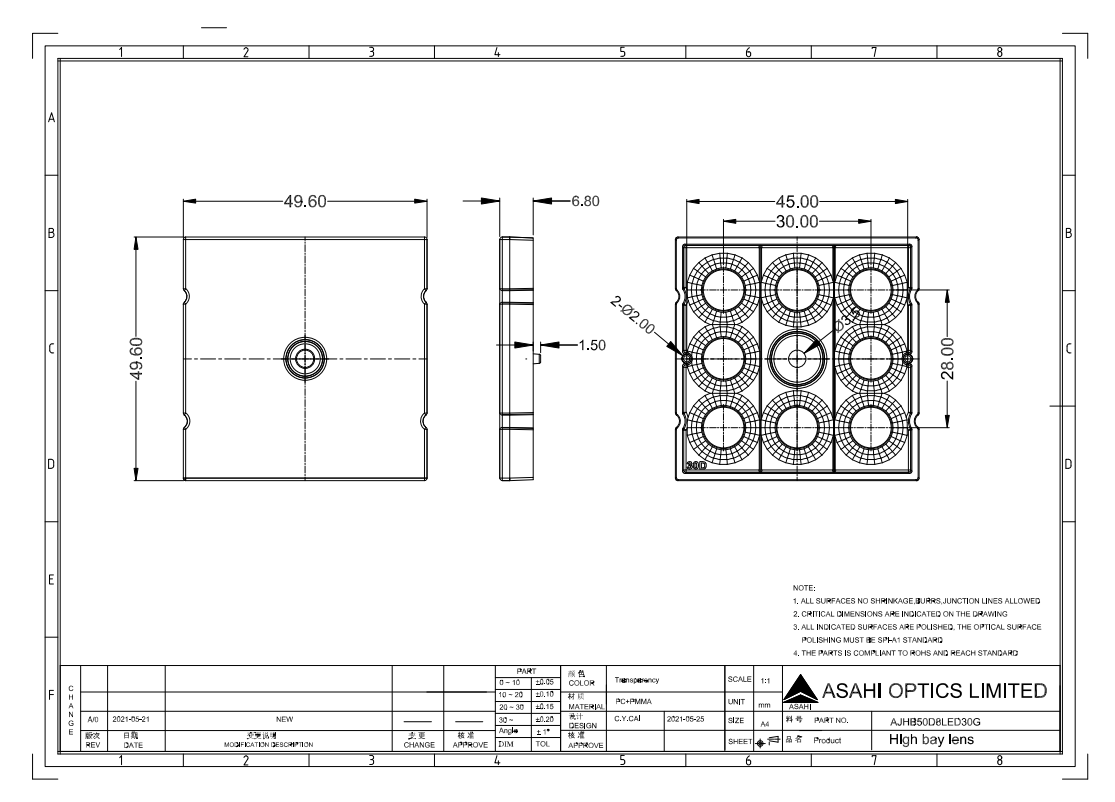

Asahi Optics AJHB50D8LED30G Drawing.dwg
Asahi Optics AJHB50D8LED30G Drawing.pdf
Asahi Optics AJHB50D8LED30G 5050LED.ies
Asahi Optics AJHB50D8LED PCB Drawing.dwg
Asahi Optics AJHB50D8LED PCB Drawing.pdf
