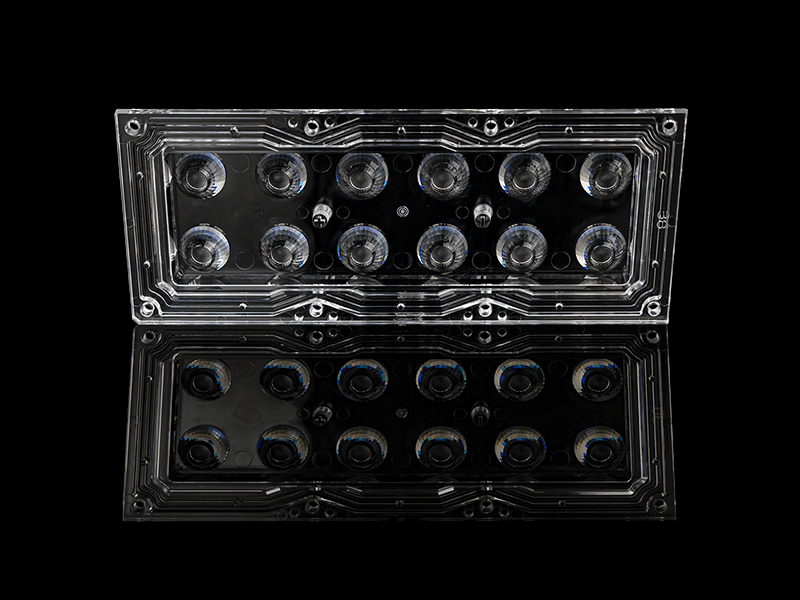

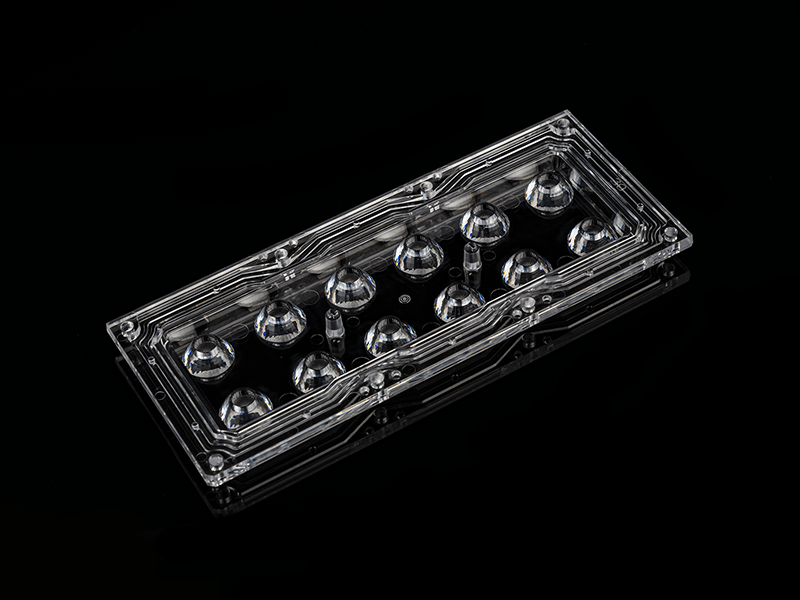

Model: ALHB173D12LED30G
Diameter: 173x71.4mm
Height: 11.05mm
Angle: 30°
Material: PC
Transmittance: >90%
LED Type: 5050LED

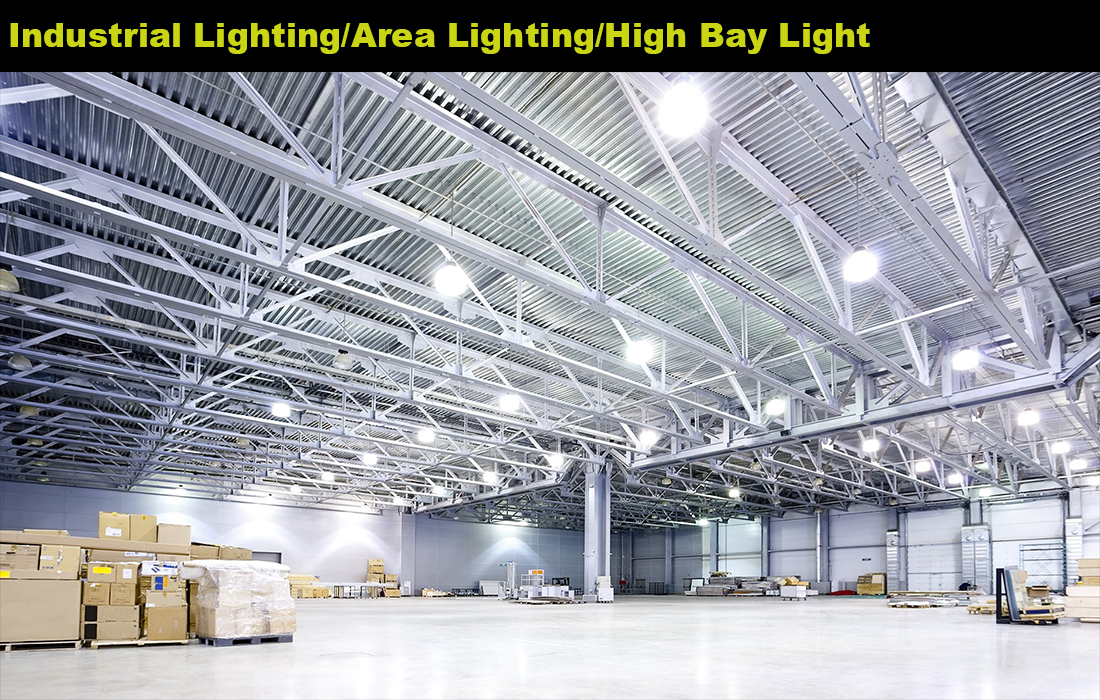

Lighting Applications: High Bay Lighting
1. This lens has an IP66 rating, providing excellent protection against dust and water ingress, making it suitable for various challenging environments.
2.With a precise beam angle of 30°, this lens offers focused and directed illumination, making it ideal for various applications,such as high bay lighting,sport lighting,flood lighting etc.
3. Designed for straightforward installation, facilitating quick setup and minimizing installation complexities.

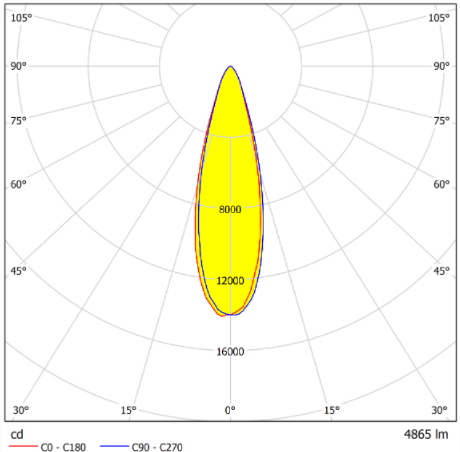

Distribution
Specifications
| Model: | ALHB173D12LED30G |
| Diameter: | 173x71.4mm |
| Height: | 11.05mm |
| Angle: | 30° |
| Material： | PC |
| Transmittance： | ＞90% |
| LED Applications | 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

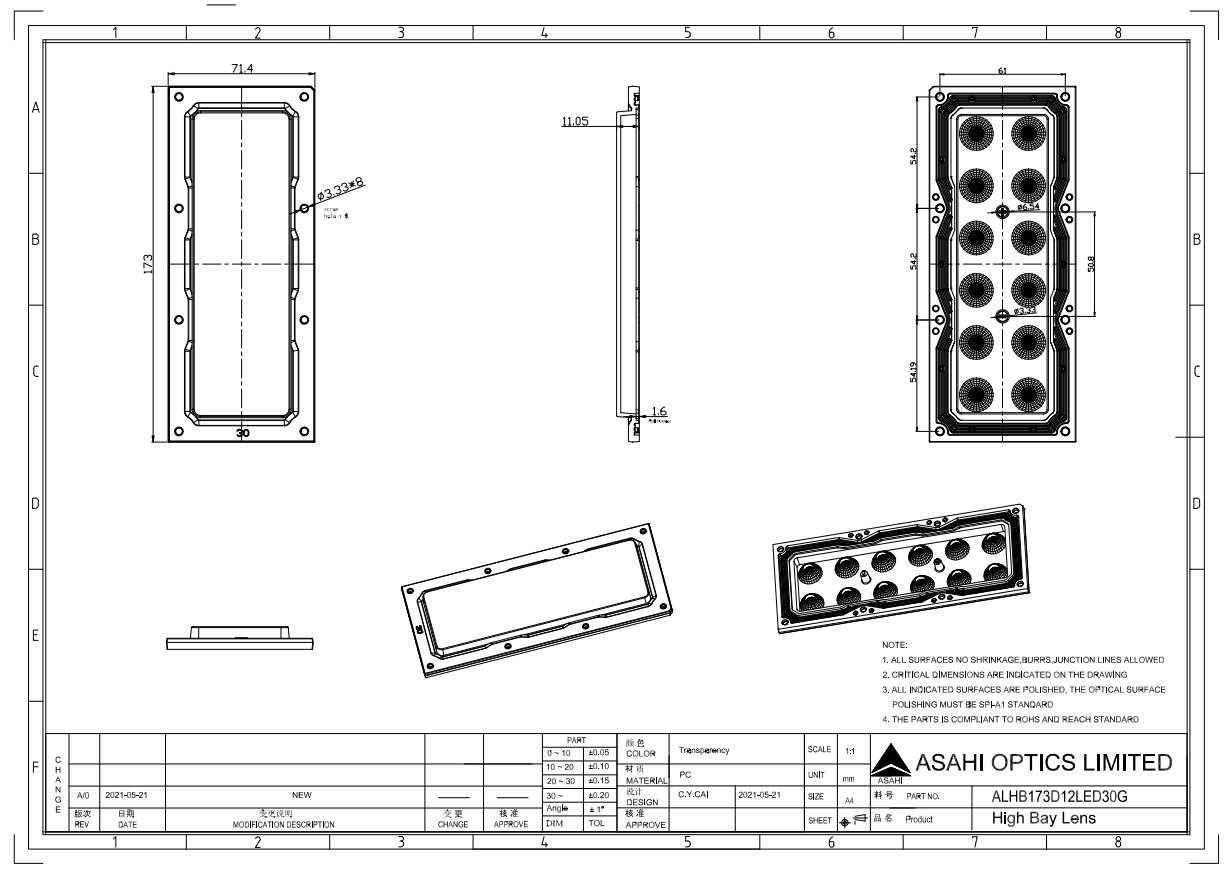

ASAHI OPTICS ALHB173D12LED30G Drawing.dwg
ASAHI OPTICS ALHB173D12LED30G Drawing.pdf
ASAHI OPTICS ALHB173D12LED30G Lens IES.ies
ASAHI OPTICS 2x6 lens IP66 173mm ALD Series-PCB-Drawing.dwg
ASAHI OPTICS 2x6 lens IP66 173mm ALD Series-PCB-Drawing.pdf
