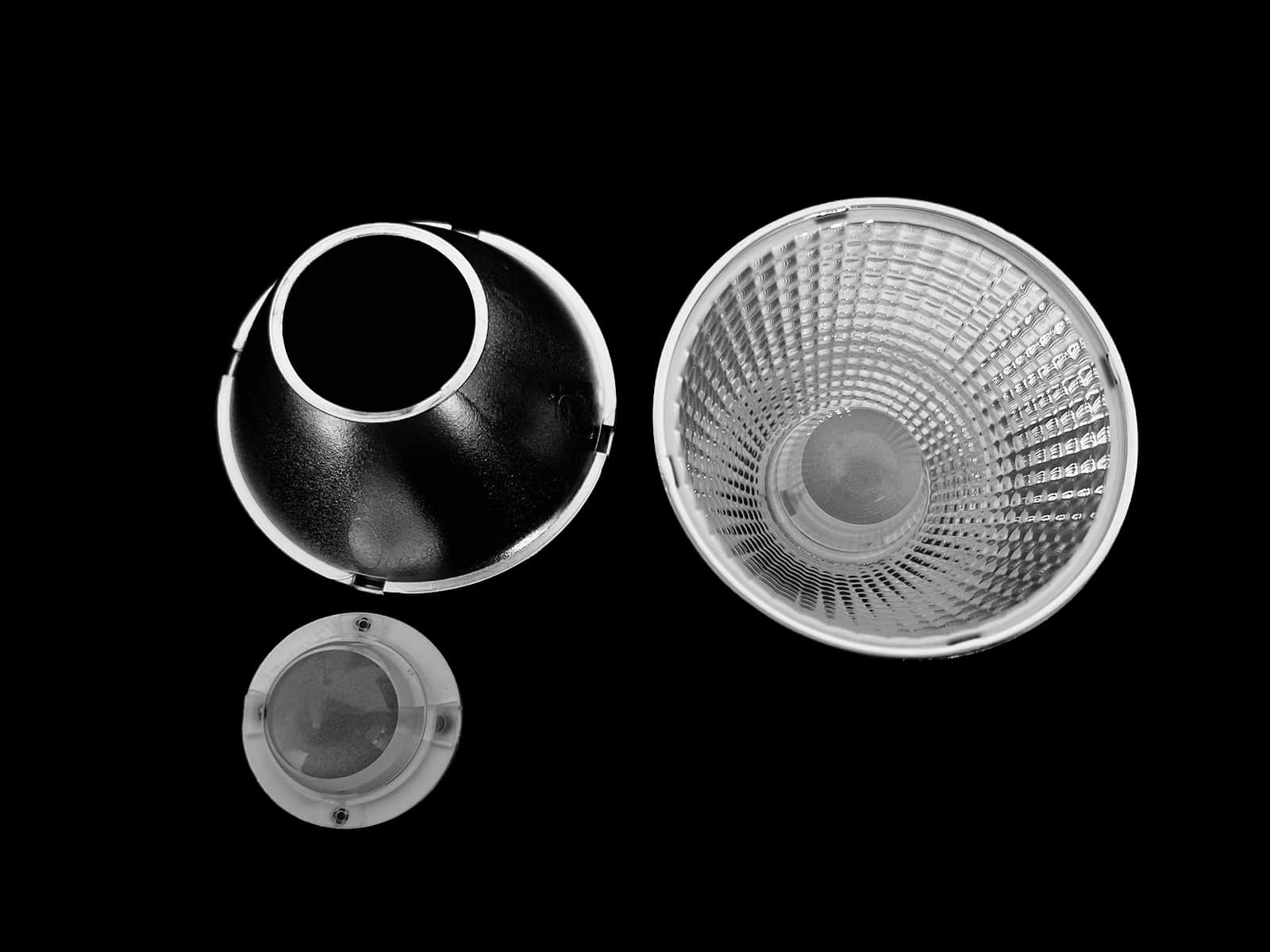

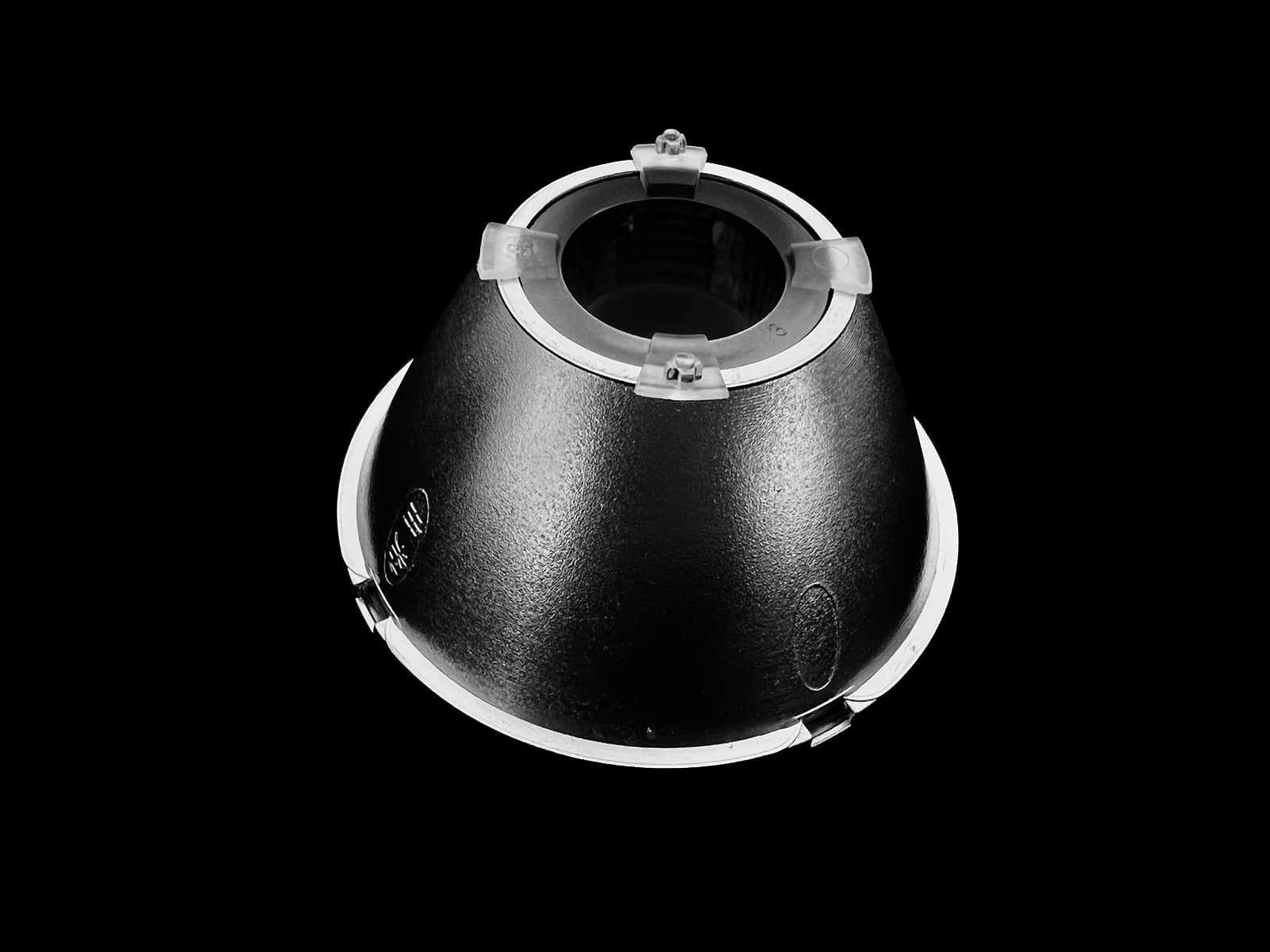

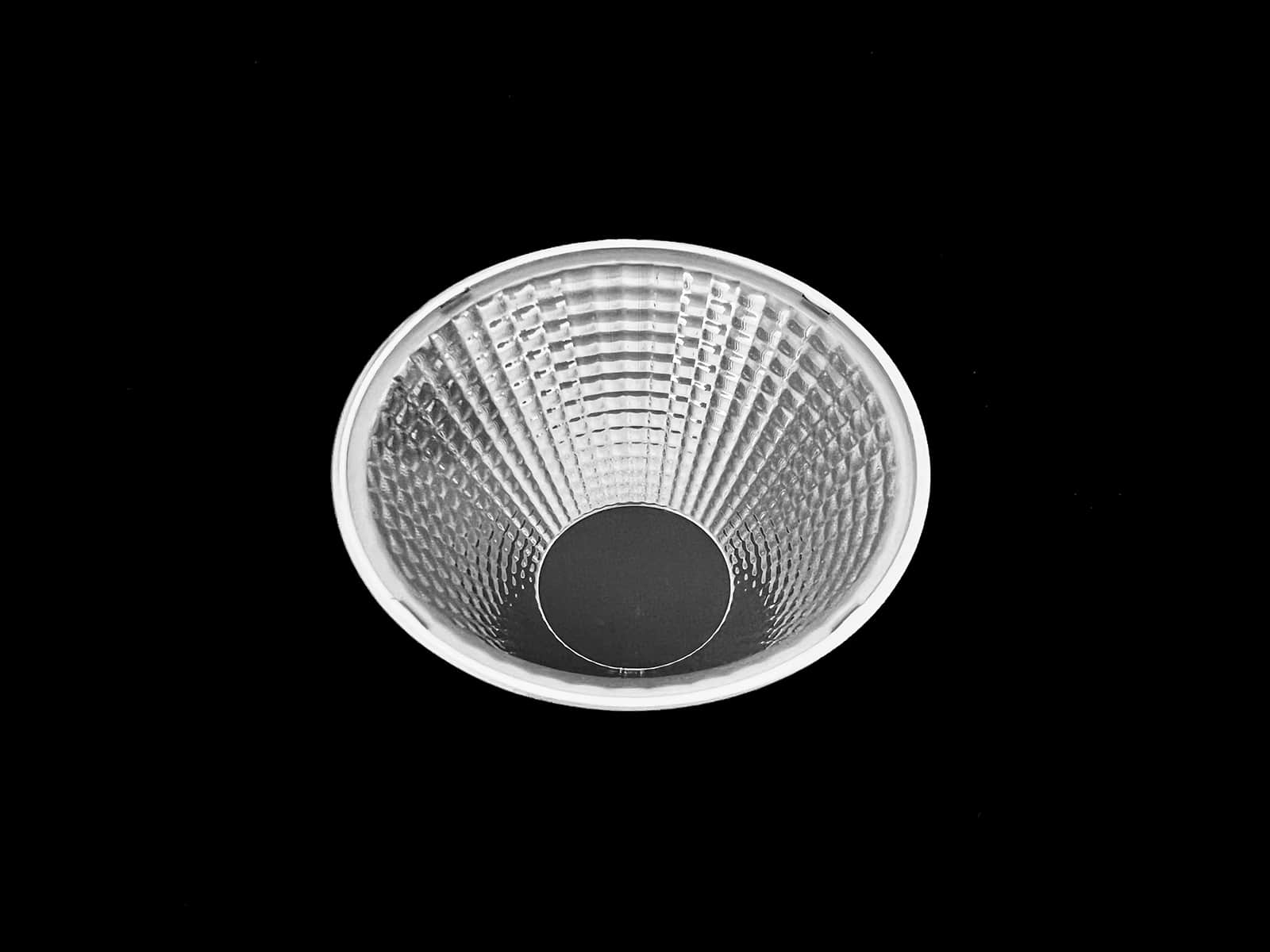

Model: AR6531T

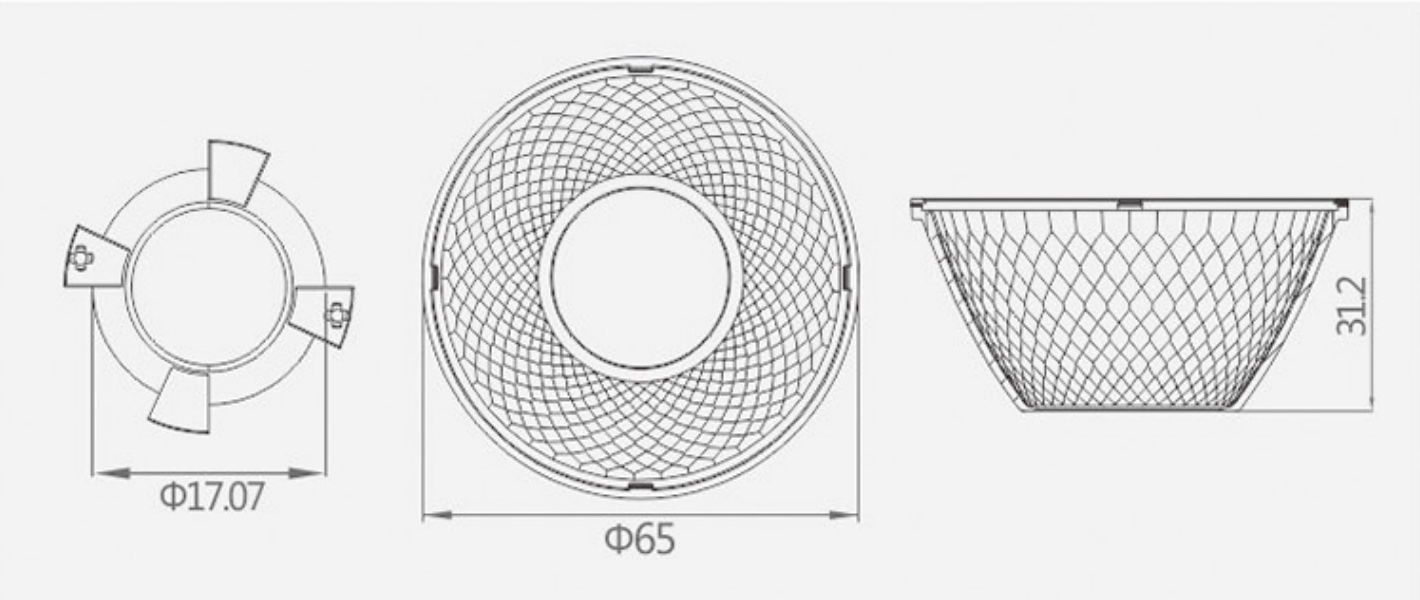

Diameter: 65mm, 26.4mm
Height: 31.2mm

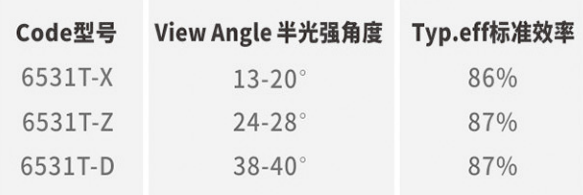

Angle: 15°, 25°, 38°
Material: PC+Aluminum Coating
Transmittance: >88%
LED Type: COB LED
Lighting Applications: PAR lighting,Spot Light,Down Light

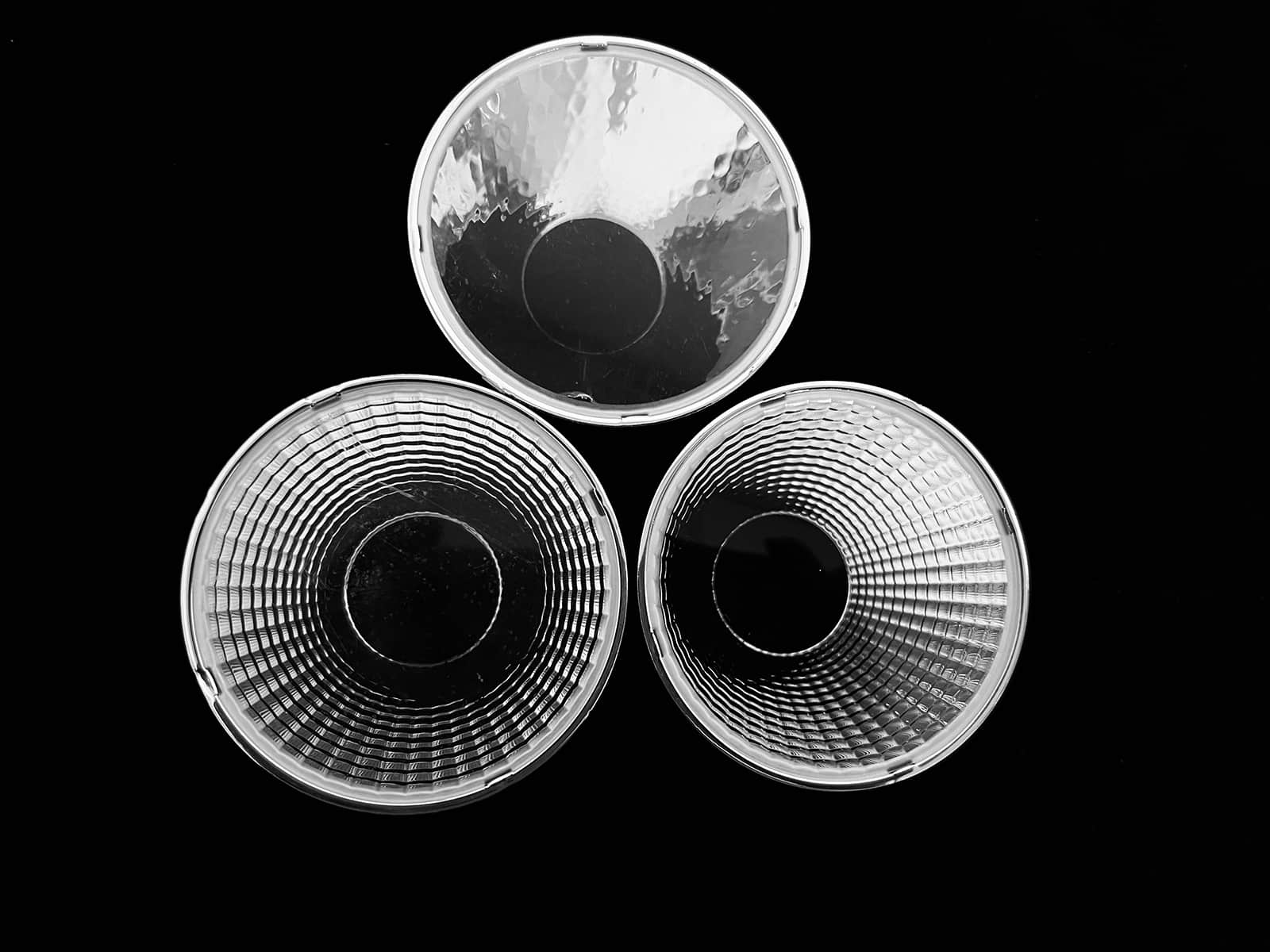

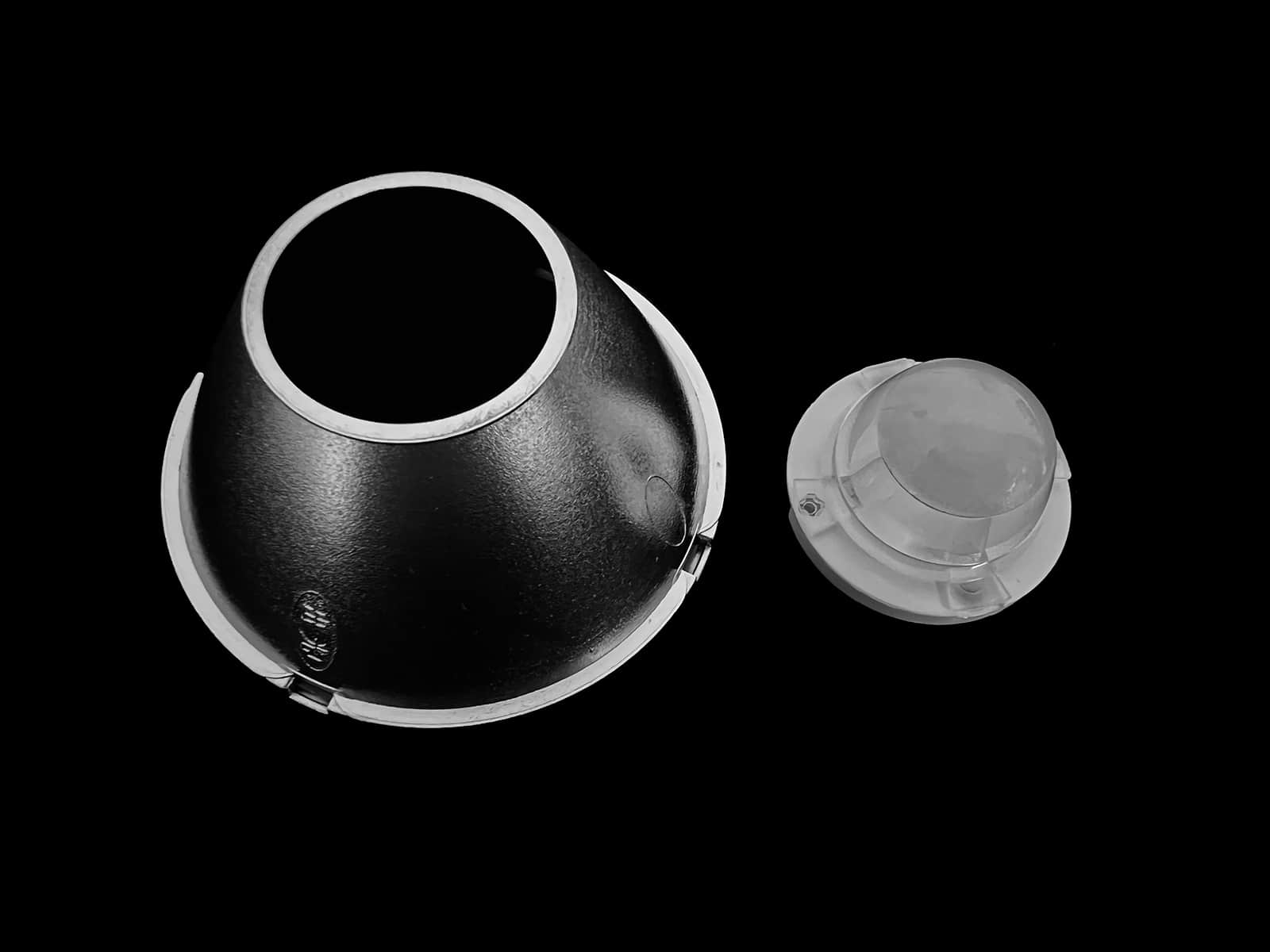

1, 65mm LED Lighting Reflectors For Downlights, The main purpose of a COB LED reflector is to enhance the efficiency and directionality of the light output. By using a reflector, the light emitted by the COB LEDs can be concentrated and directed toward a specific area or target.

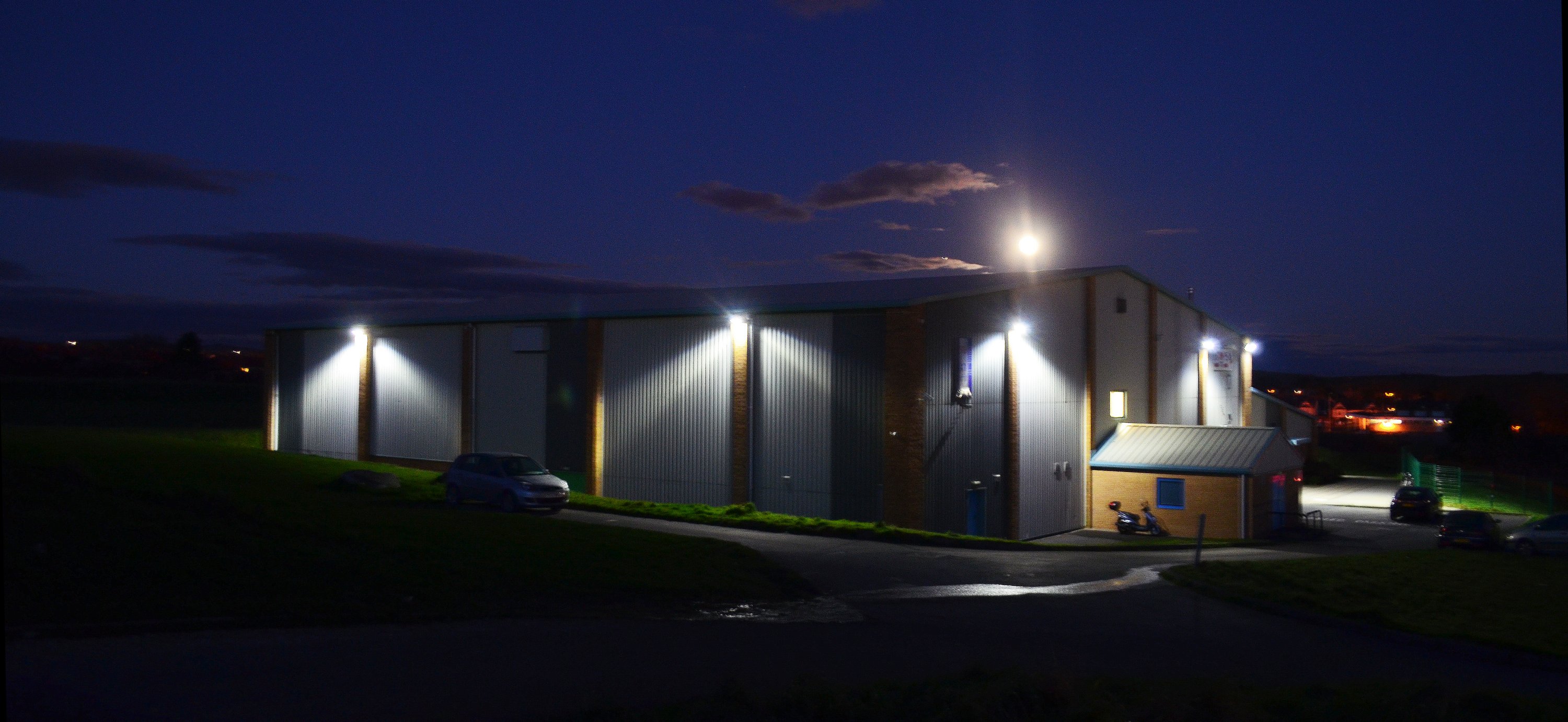

2, COB LED reflectors are increasingly being used in street lighting applications due to their high efficiency and long lifespan. The reflector helps to control the light distribution, reducing light pollution and ensuring proper illumination of roads and pathways.

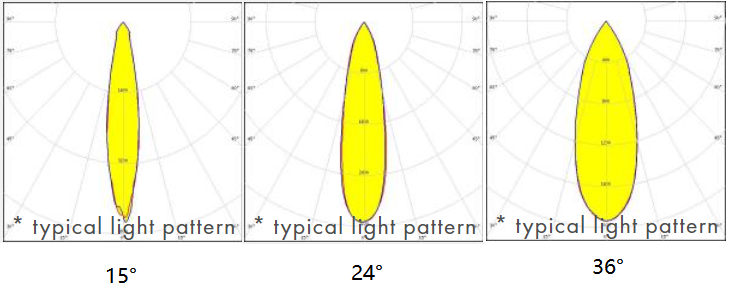

Distribution
Specifications
| Model: | AR6531T |
| Diameter: | 65mm, 26.4mm |
| Height: | 31.2mm |
| Angle: | 15°, 24°, 38° |
| Material： | PC+Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting,Spot Light,Down Light |

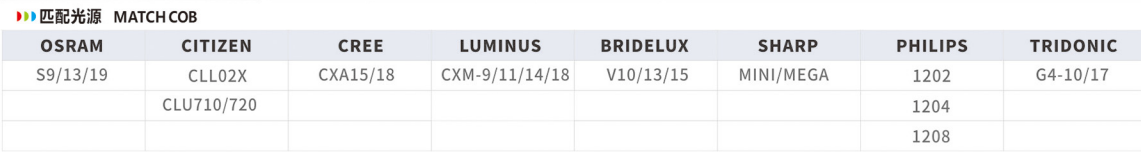

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
