Model: AML104D16H15G/1530G

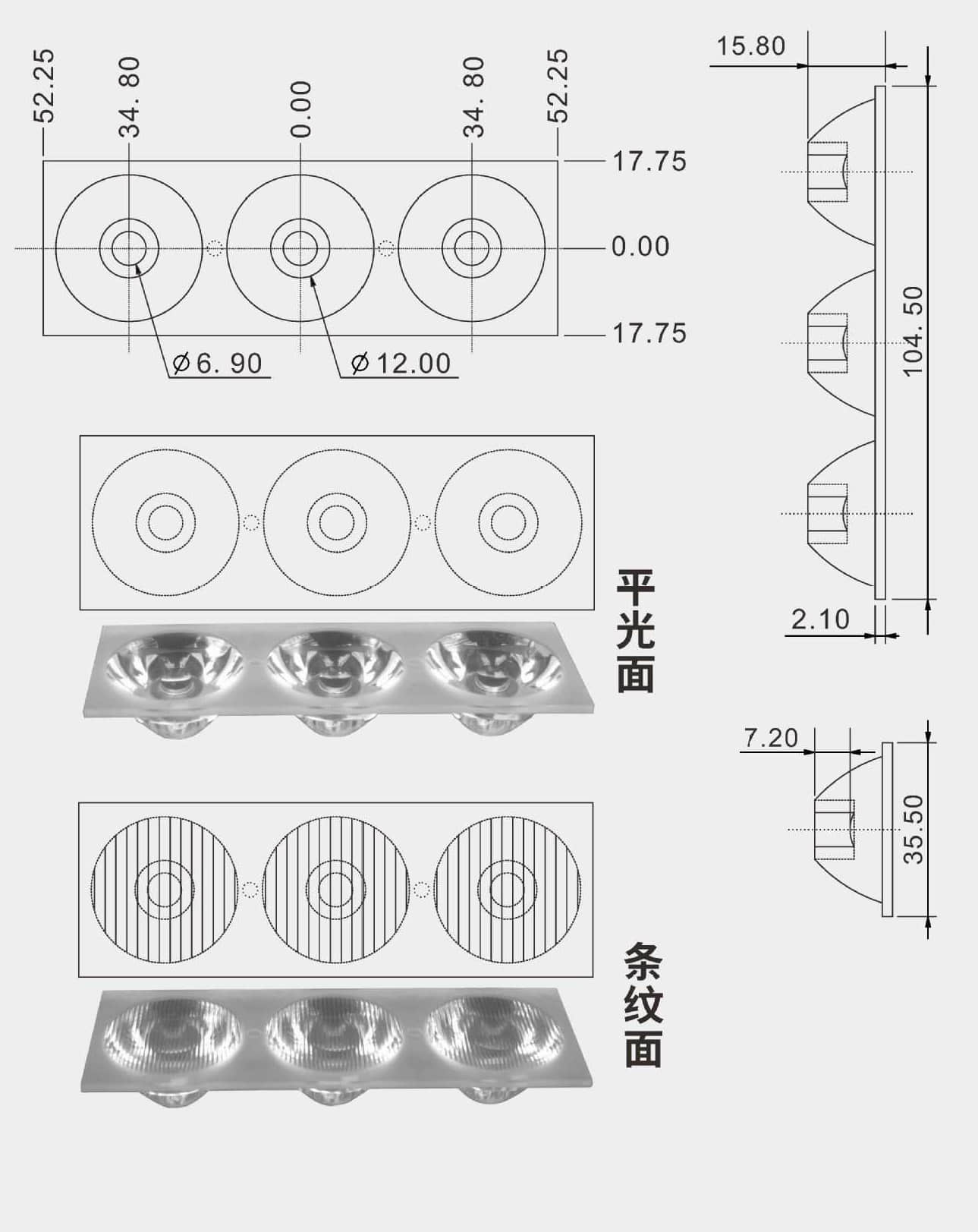

Size: 104x35.5(mm)
Height: 15.8mm
Angle: 15°,15x30°
Material: PMMA
Transmittance: >92%
LED Type: 3030, 3535, 5050LED
Lighting Applications: Automotive and motorcycle lights, electric vehicle lights

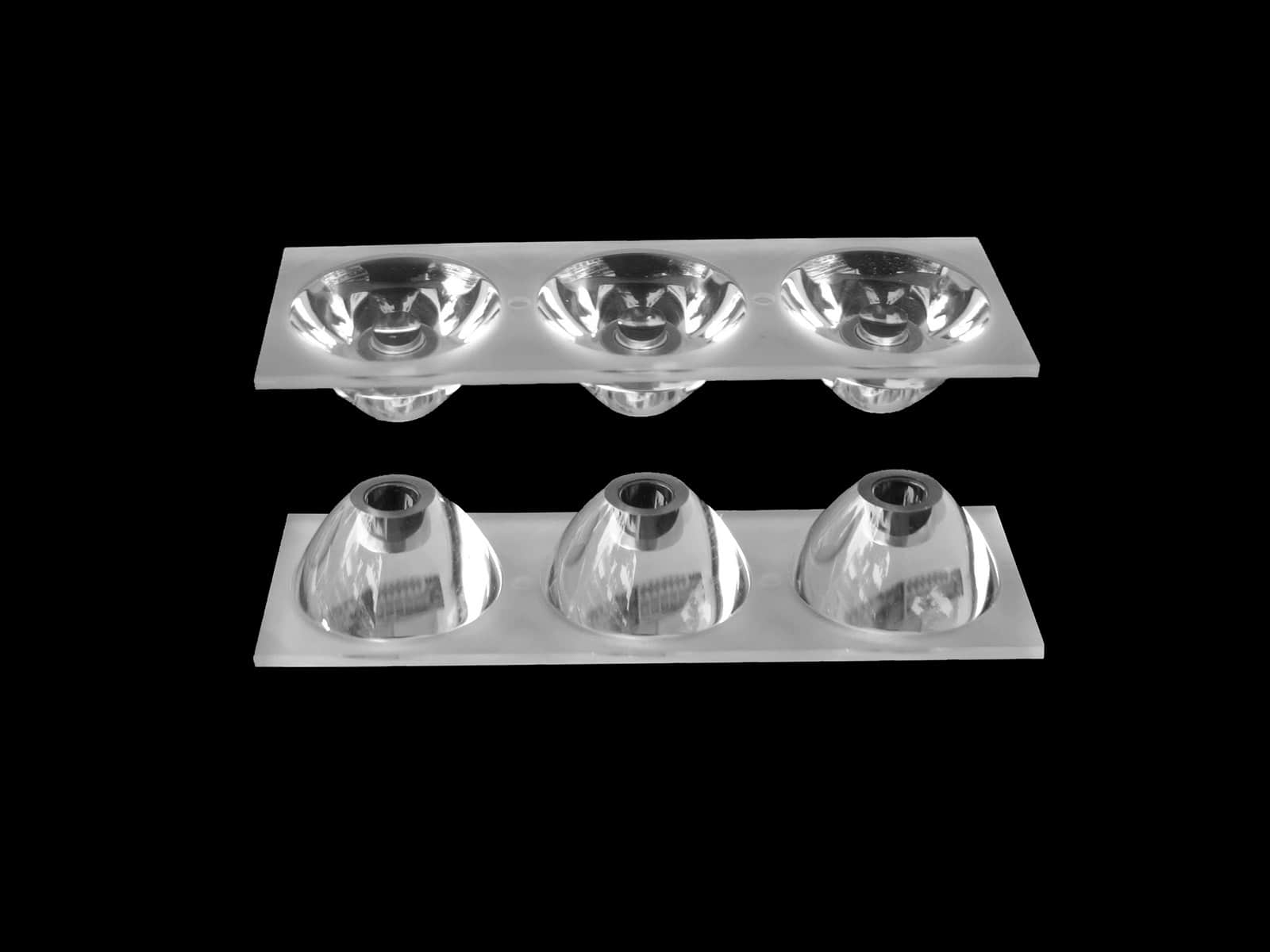

1. Integrated three-head tapered optical structure, specifically designed for automotive, motorcycle, and electric vehicle lighting.

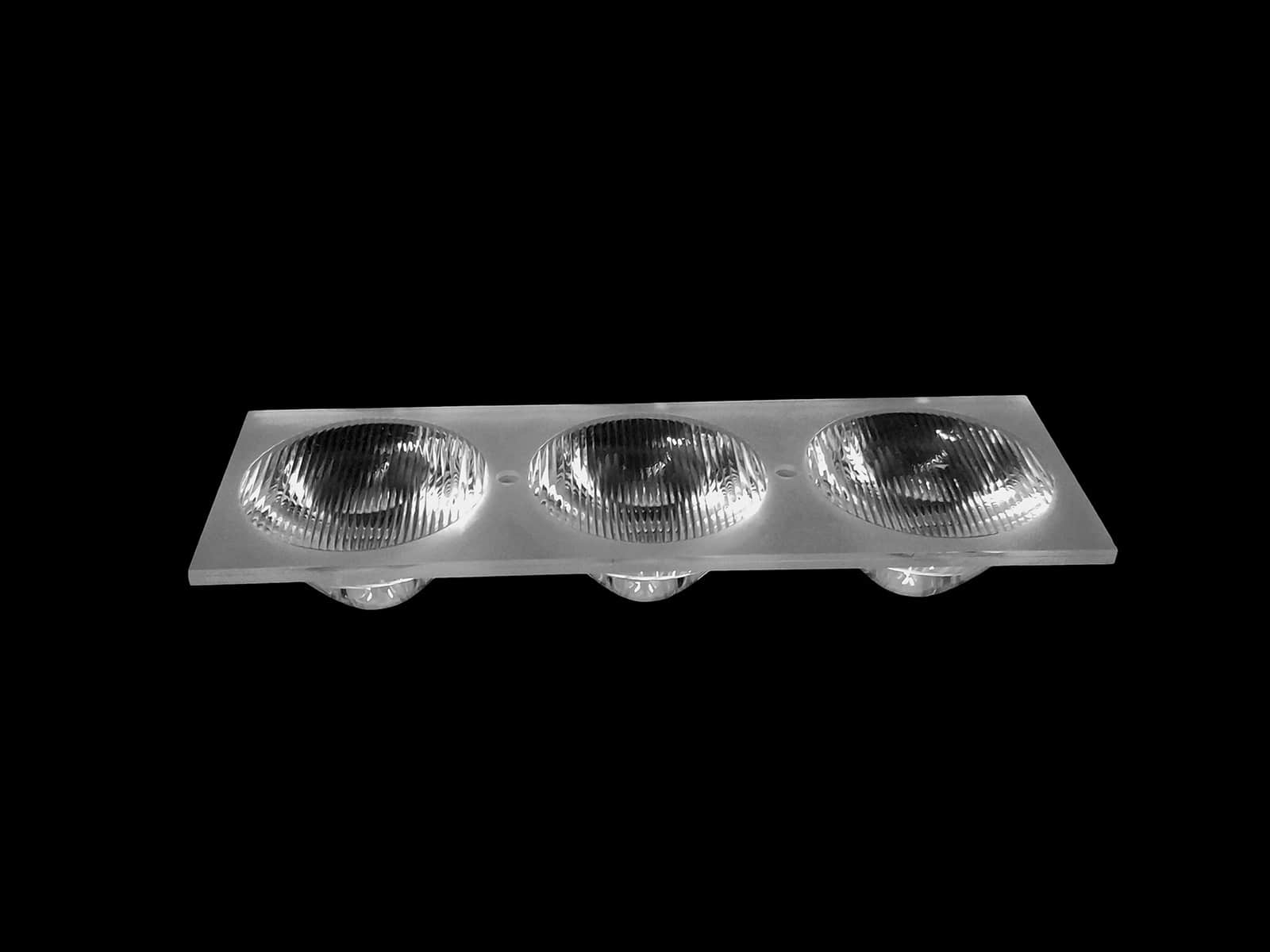

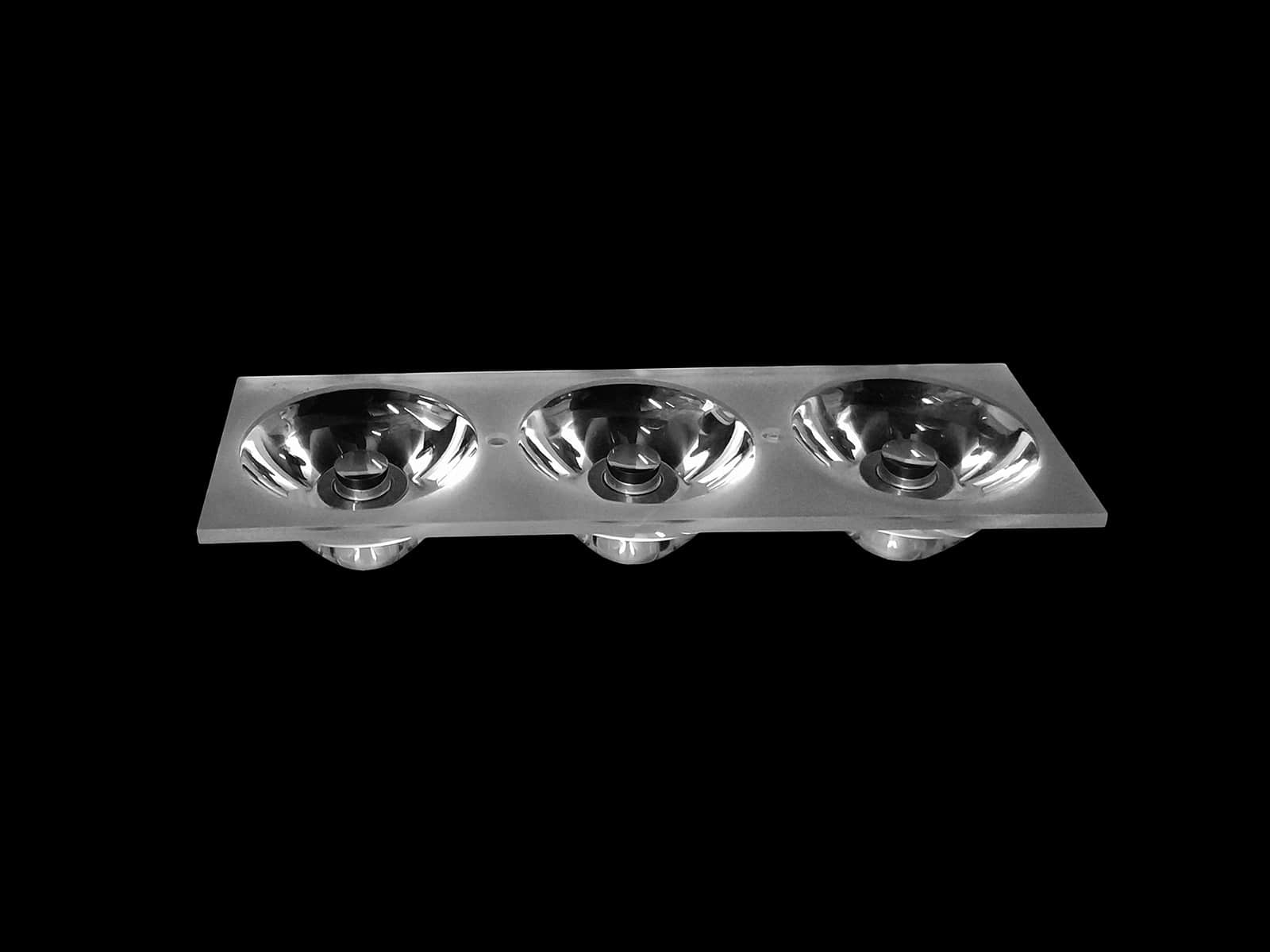

2. Available in two beam angle options – 15° and 15°×30° – combining long‑range spot focus with wide‑area road illumination.
3. Compact integrated design facilitates easy luminaire integration, enhancing driving safety and luminous efficacy.
Distribution
Specifications
| Model: | AML104D16H15G/1530G |
| Size: | 104x35.5(mm) |
| Height: | 15.8mm |
| Angle: | 15°,15x30° |
| Material： | PMMA |
| Transmittance： | >92% |
| LED Type | 3030, 3535, 5050LED |
| Lighting applications | Automotive and motorcycle lights, electric vehicle lights |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
