Model: ALHB173D12LED60G
Diameter: 173.0mm+71.4mm
Height: 7.95mm
Angle: 60°
Material: PMMA
Transmittance: >93%
LED Type: "3535""5050" LED

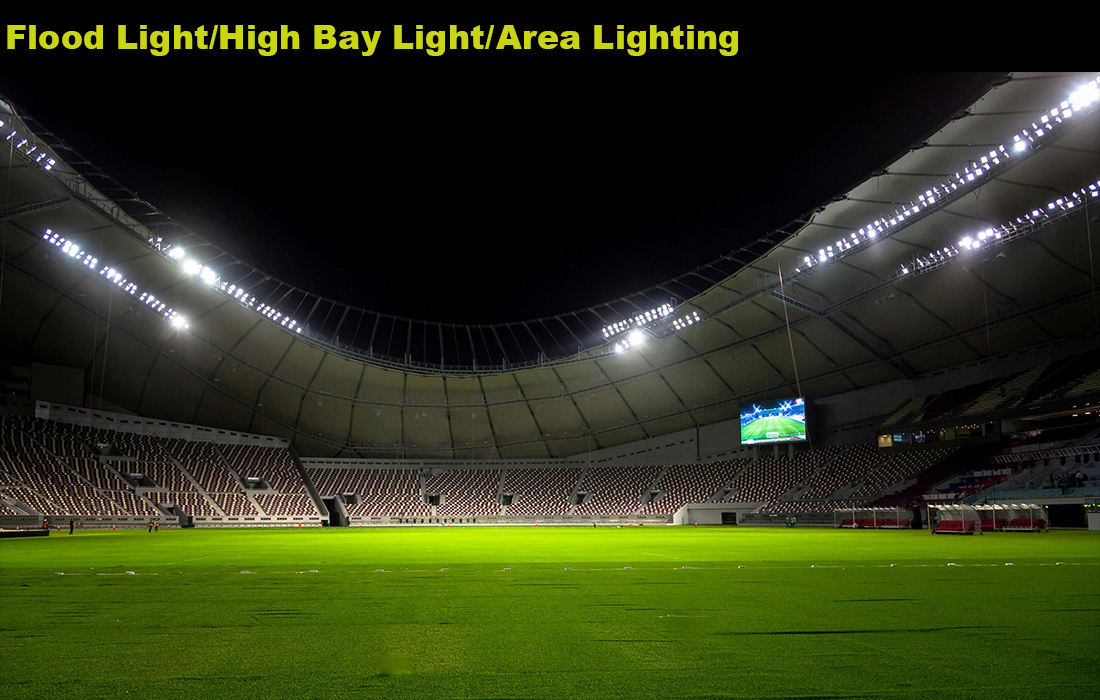

Lighting Applications: High Bay Lighting
New Arrivals!!!173mm-Mx Series 60Degree High Bay Lighting Lens Compatible With 2x6 ZHAGA PCB Model
1. Compatible with 2835/3030/5050 LEDs
2. Up to 48pcs 5050 LEDs can be placed,and 12-36pcs LEDs are recommended
3. Up to 76pcs 2835/3030 LEDs can be placed,and 30-72pcs are recommended
4. Compatible with 2x6 ZHAGA PCB model
5. IP Rating: IP66
Specifications
| Model: | ALHB173D12LED60G |
| Diameter: | 173*71.4mm |
| Height: | 11.4mm |
| Angle: | 90 ° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | "5050" LED |
| Lighting applications | High Bay Lighting,Flood Lighting |

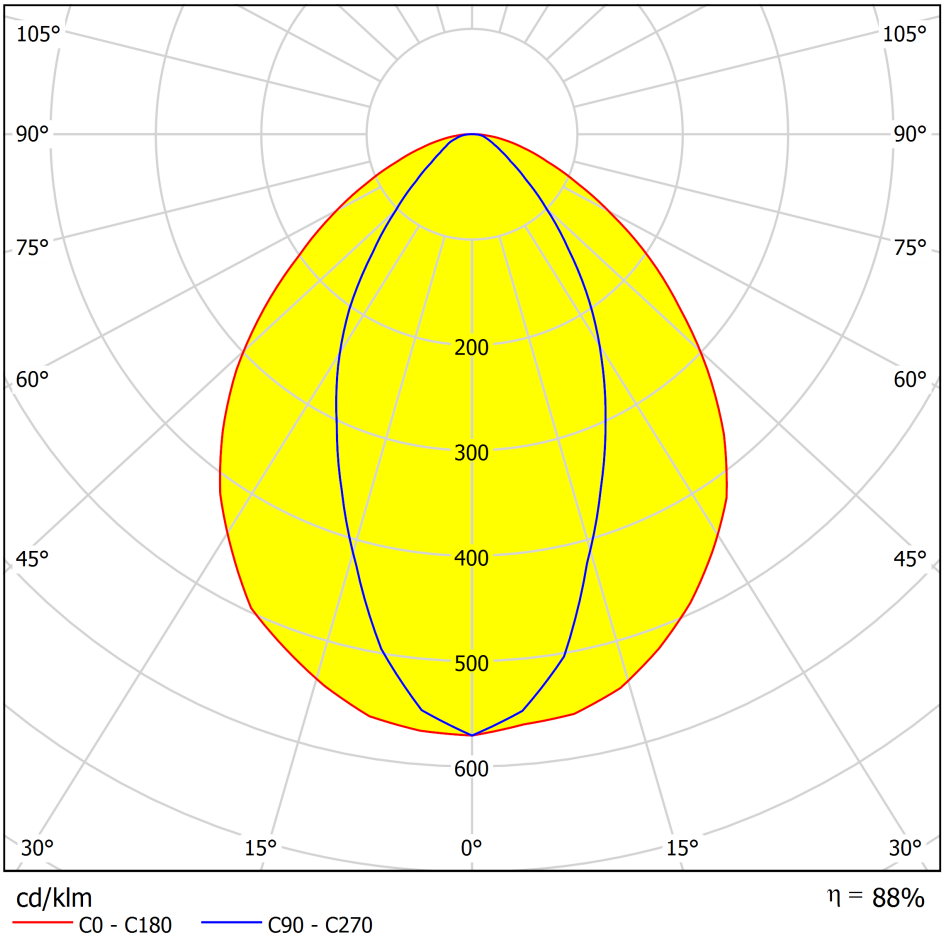

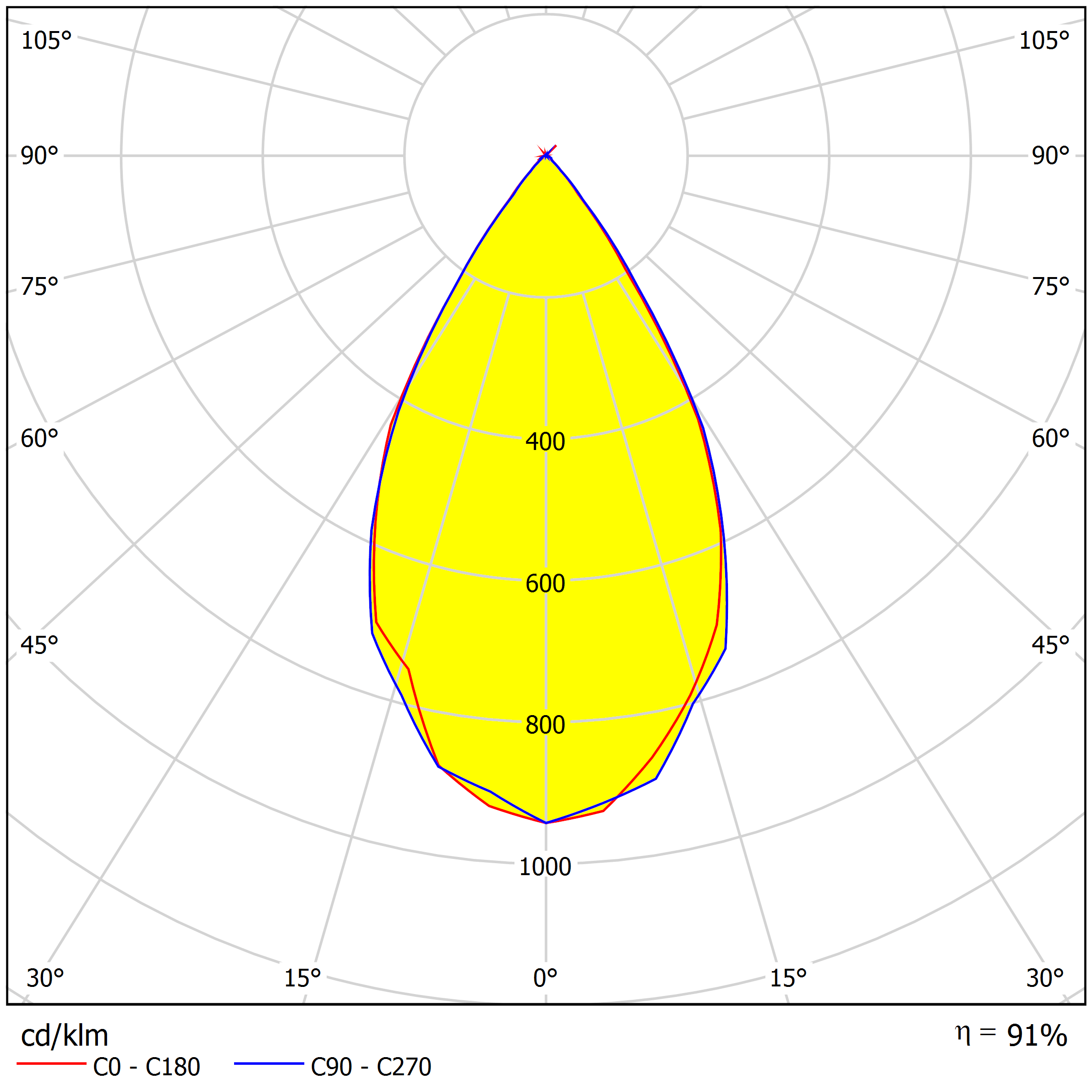

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
ASAHI OPTICS ALHB173D12LED60G lens 3D Drawing.stp

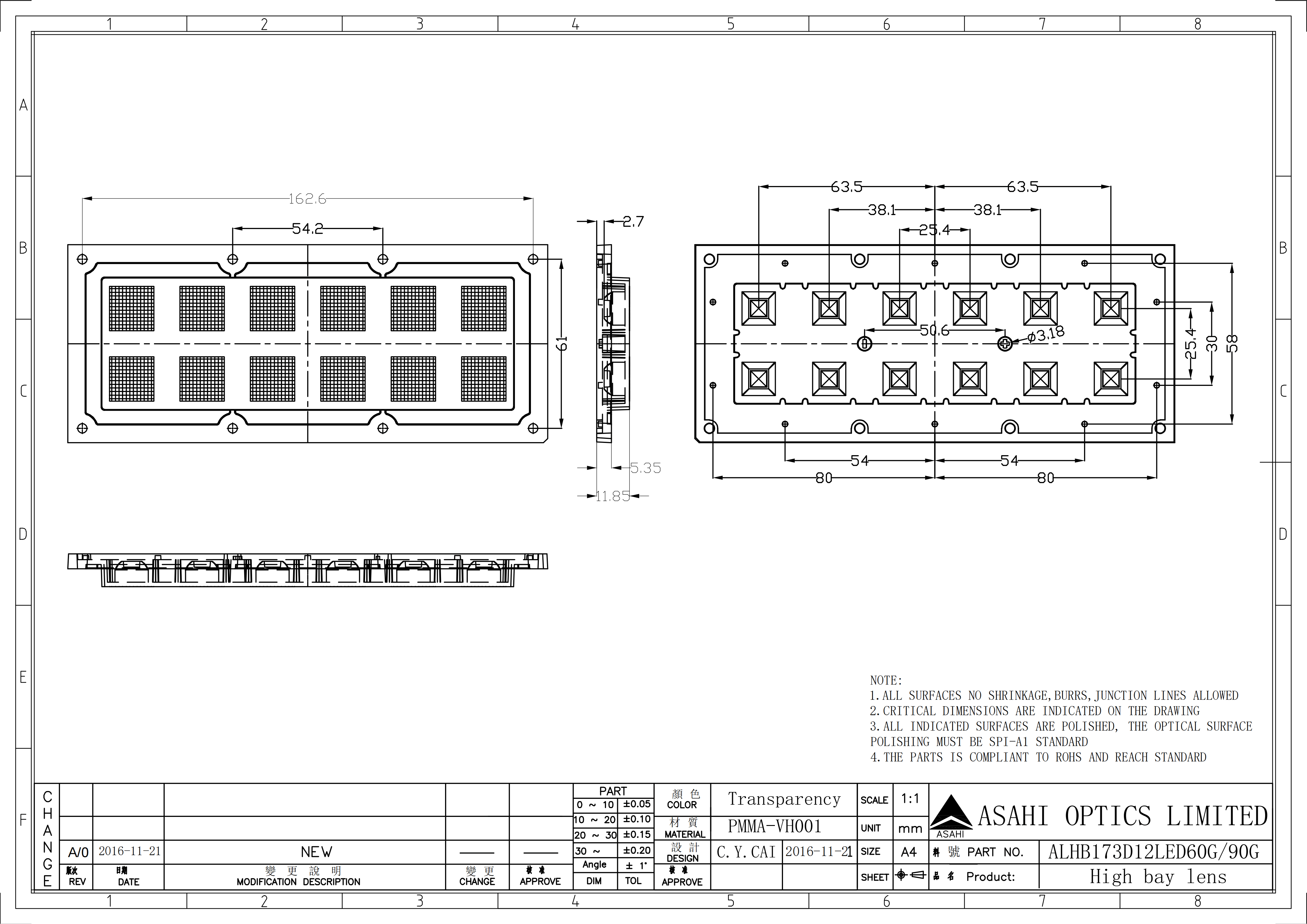

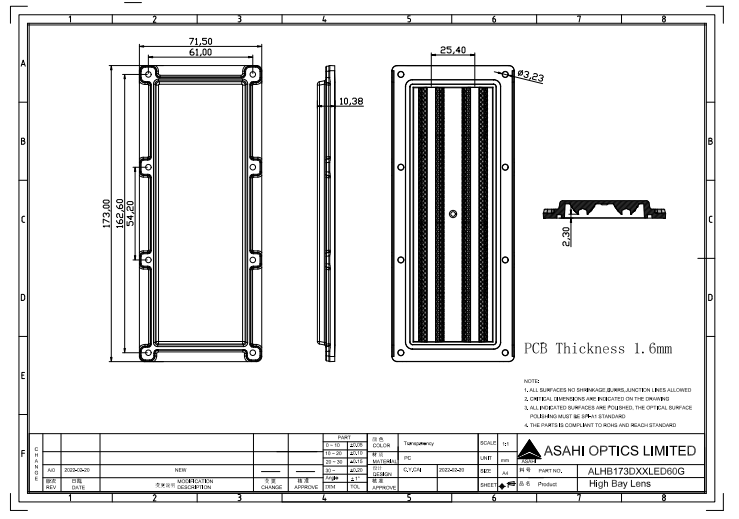

ASAHI OPTICS ALHB173D12LED60G Drawing.dwg
