Model: ALSP50D4LED3535T7
Diameter: 50x50mm
Height: 15mm
Angle: 7°
Material: PC-1250Z
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Sport lighting, Stadium lighting
1.Featuring a narrow angle of 7 degrees, this lens is specifically designed for sports field illumination.
2.The small angle ensures precise beam control, delivering focused and uniform lighting suitable for sports arenas, enhancing visibility and creating an optimal playing environment.
3. The lens minimizes glare and light spillage, enhancing visual comfort for players and spectators while reducing light pollution in surrounding areas.

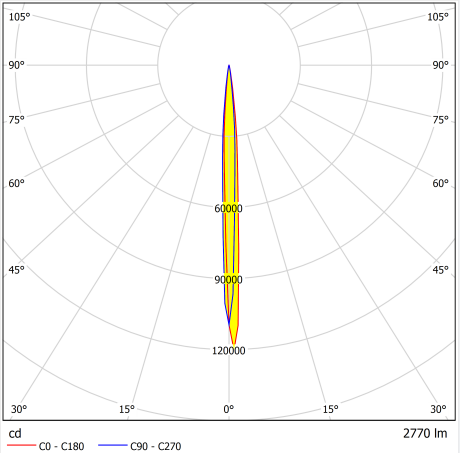

Distribution
Specifications
| Model: | ALSP50D4LED3535T7 |
| Diameter: | 50x50mm |
| Height: | 15mm |
| Angle: | 7° |
| Material： | PC |
| Transmittance： | 92% |
| LED Type | 3535LED |
| Lighting applications | Sport lighting/Flood lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.Featuring a narrow angle of 7 degrees, this lens is specifically designed for sports field illumination.
2.The small angle ensures precise beam control, delivering focused and uniform lighting suitable for sports arenas, enhancing visibility and creating an optimal playing environment.
3. The lens minimizes glare and light spillage, enhancing visual comfort for players and spectators while reducing light pollution in surrounding areas.

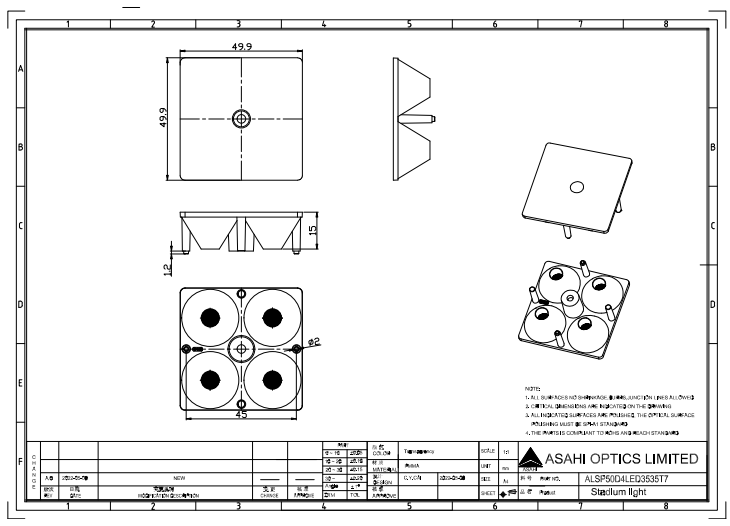

ASAHI OPTICS ALSP50D4LED3535T7 Drawing.dwg
ASAHI OPTICS ALSP50D4LED3535T7 Drawing.pdf
ASAHI OPTICS ALSP50D4LED3535T7.ies
Asahi Optics ALSP50D4LED3535T7 lens-PC.3D drawing.stp
