Model: ALST50D4LED5050MEW
Diameter: 50x50mm
Height: 8.57mm
Angle: T4-Very Short
Material: PC
Transmittance: >90%
LED Type: 5050LED

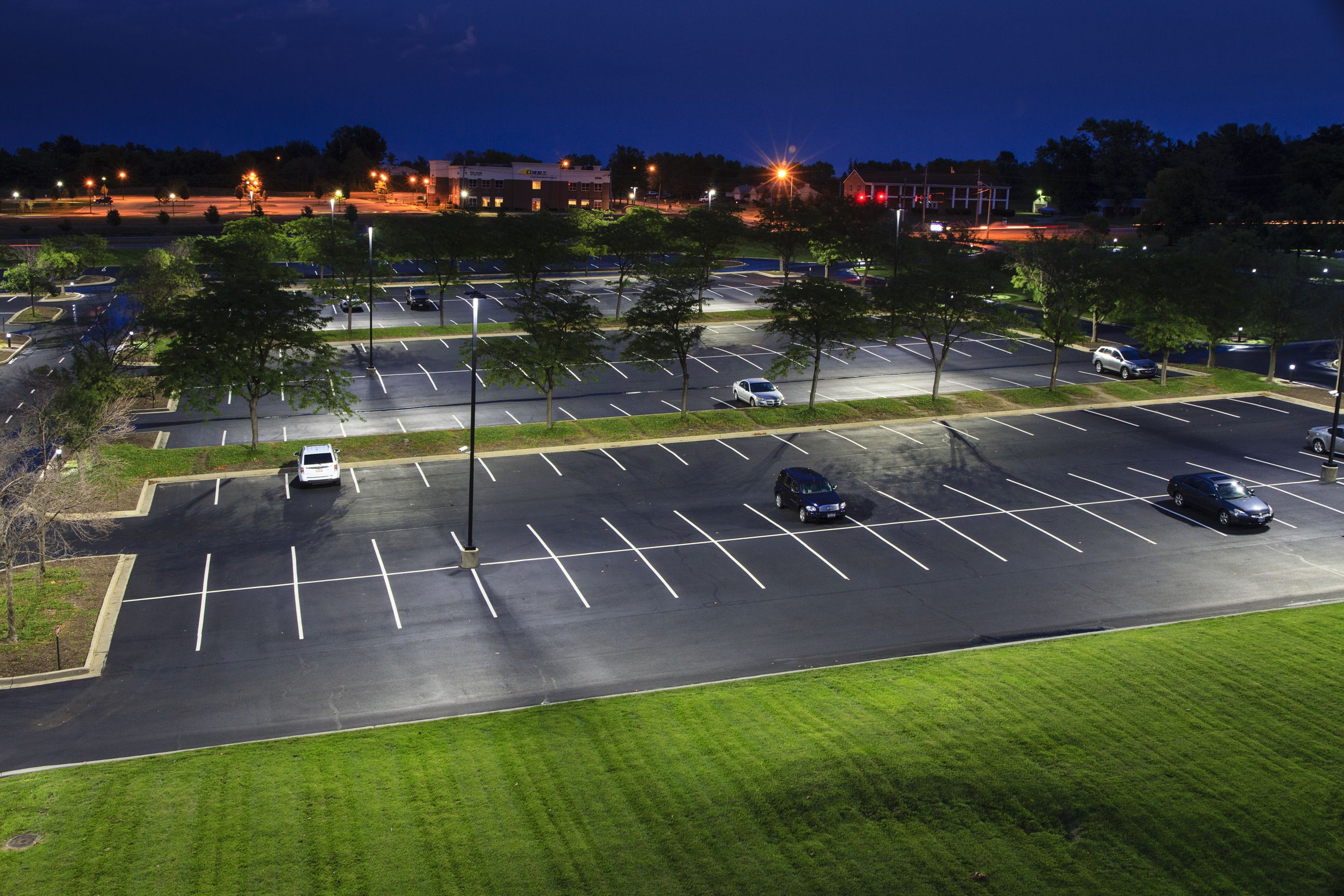

Lighting Applications: Area Lighting

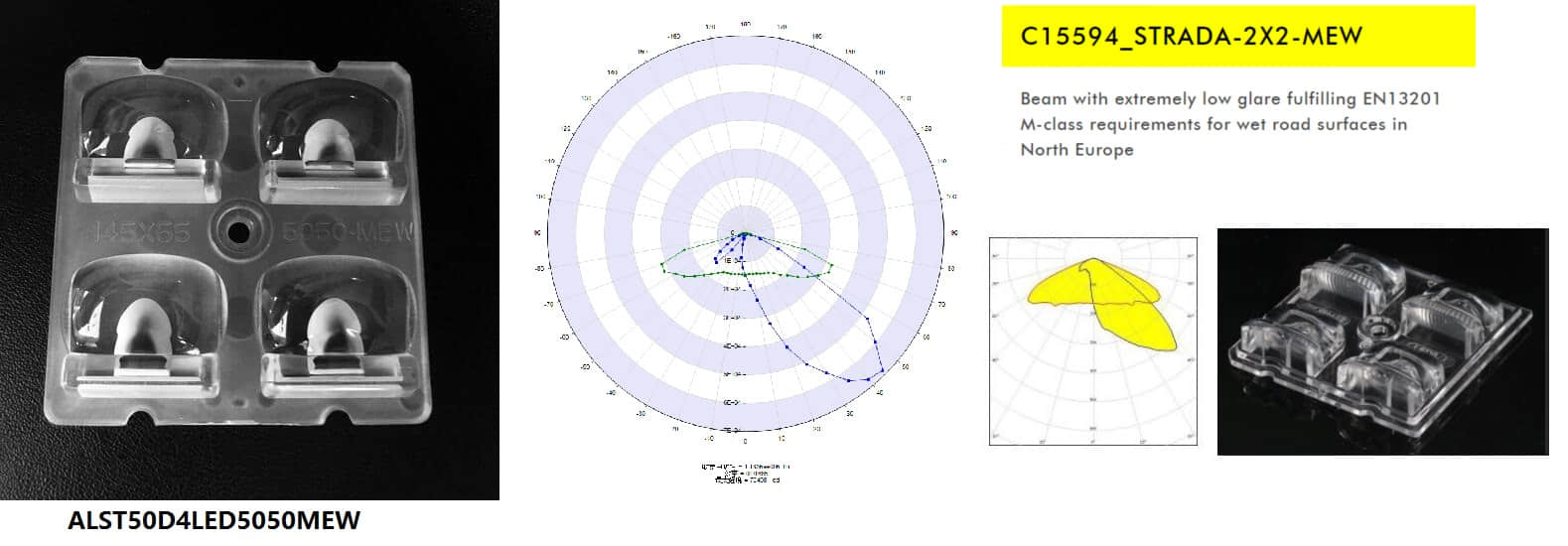

1. 2x2-MEW Beam with extremely low glare fulfilling EN13201 M-class requirements for wet road surfaces in North Europe.
2. Provides clear and uniform illumination, improving visibility for pedestrians, cyclists, and motorists, enhancing safety.
3. It's made of high quality PC material, offering durability and resistance to weather, UV radiation, and impact.

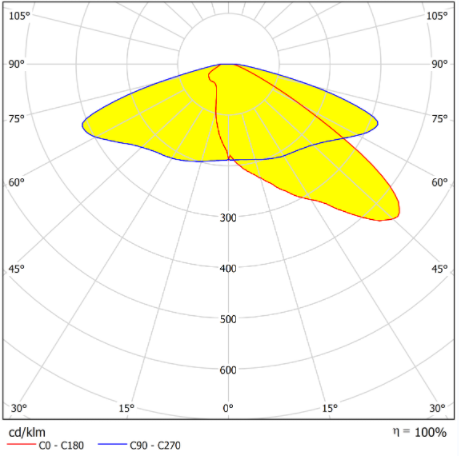

Distribution
Specifications
| Model: | ALST50D4LED5050MEW |
| Diameter: | 50x50mm |
| Height: | 8.57mm |
| Angle: | T4-Very Short |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. 2x2-MEW Beam with extremely low glare fulfilling EN13201 M-class requirements for wet road surfaces in North Europe.
2. Provides clear and uniform illumination, improving visibility for pedestrians, cyclists, and motorists, enhancing safety.
3. It's made of high quality PC material, offering durability and resistance to weather, UV radiation, and impact.

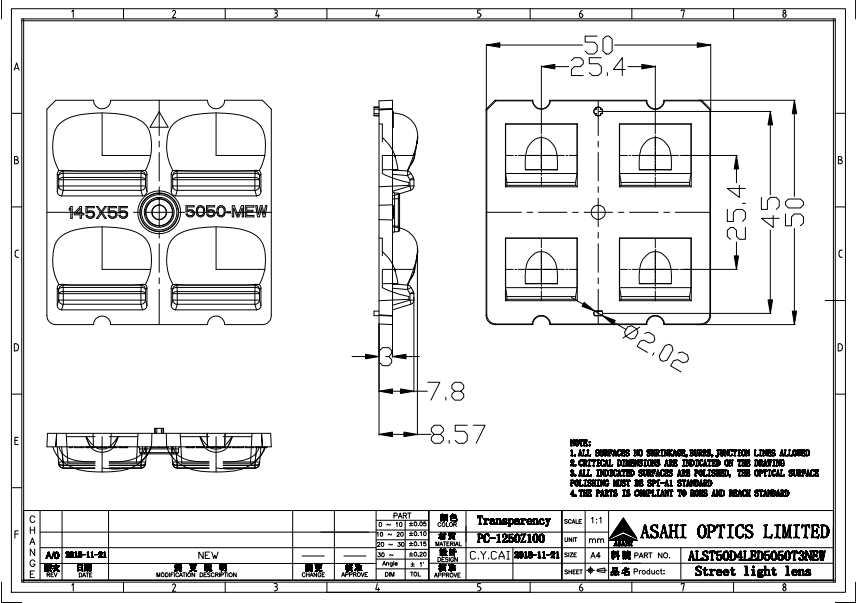

ASAHI OPTICS ALST50D4LED5050MEW lens 3D Drawing.stp
ASAHI OPTICS ALST50D4LED5050MEW Drawing.pdf
