Model: ARHB250D72LEDT60G
Diameter: 250x74mm
Height: 6.81mm
Angle: 60°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 2835/3030LED
Lighting Applications: High Bay Lighting, Area Lighting
1. 72-in-1 module lens compatible with 2835 and 3030 LEDs, providing a cost-effective solution for various lighting needs.
2. With a 60° medium beam angle, ensures a uniform and even light distribution, creating a consistent and well-balanced illumination.

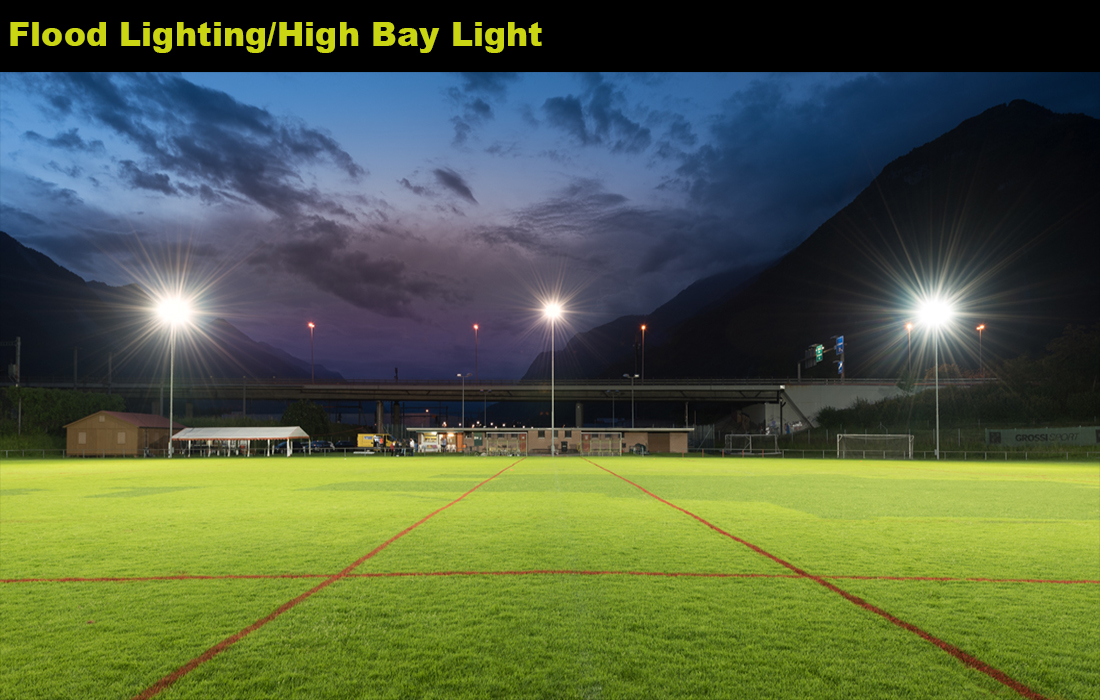

3. Suitable for flood lighting,high bay lighting, sports lighting etc.

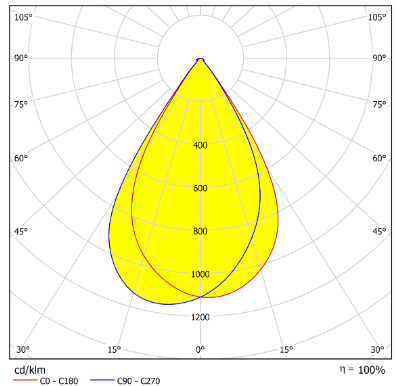

Distribution
Specifications
| Model: | ARHB250D72LEDT60 |
| Diameter: | 250x74mm |
| Height: | 6.81mm |
| Angle: | 60° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/3030LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB250D72LEDT60 lens 3D drawing.STP

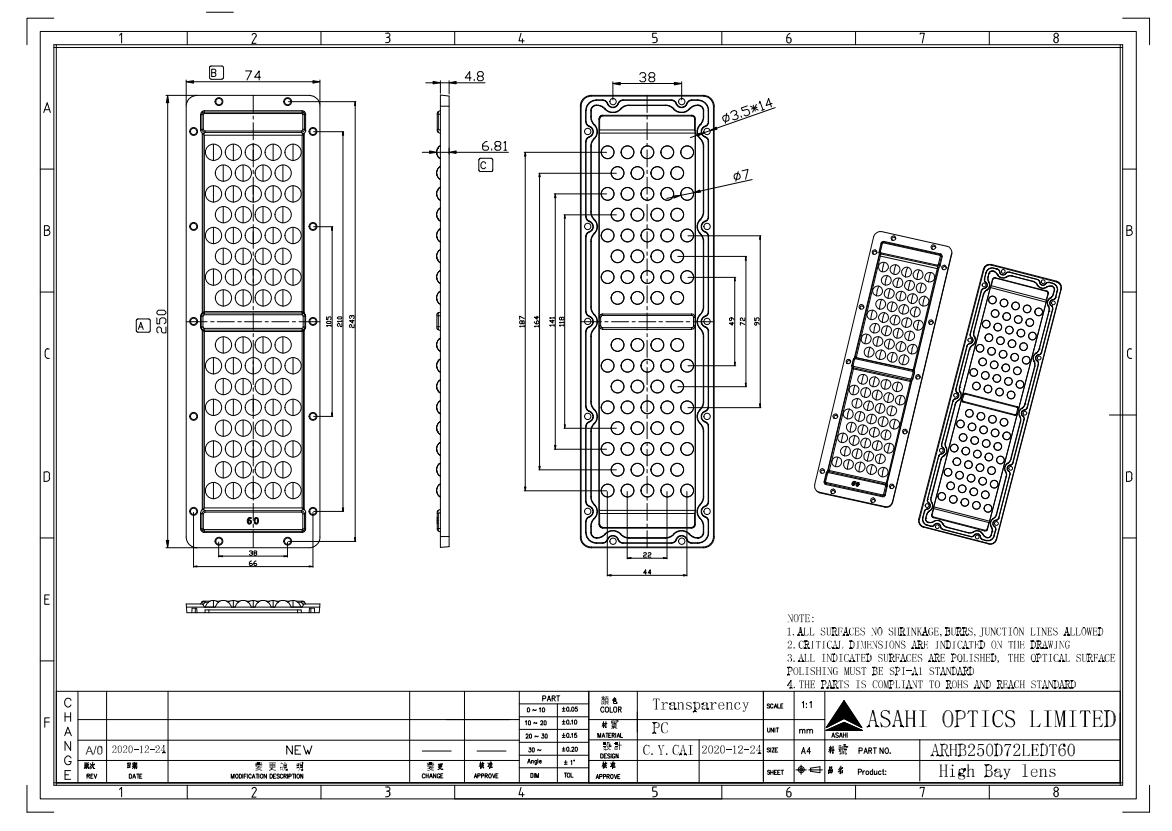

ASAHI OPTICS ARHB250D72LEDT60 Drawing.dwg
